D-Link DIS-100G-5W 5-Port Industrial DIN-Rail Switch

VENDOR: D-LINK Mfg Part#: DIS-100G-5W UPC#: 790069437908
  • The D-Link DIS-100G-5W is a 5-port Gigabit Unmanaged Hardened Industrial Switch, engineered for robust performance in harsh environments. With DIN-rail mounting, 5x 100/1000Base-T ports, and a wide DC input range, it ensures reliable high-speed wired connectivity. Ideal for industrial automation, transportation, and smart city infrastructure.
1 1

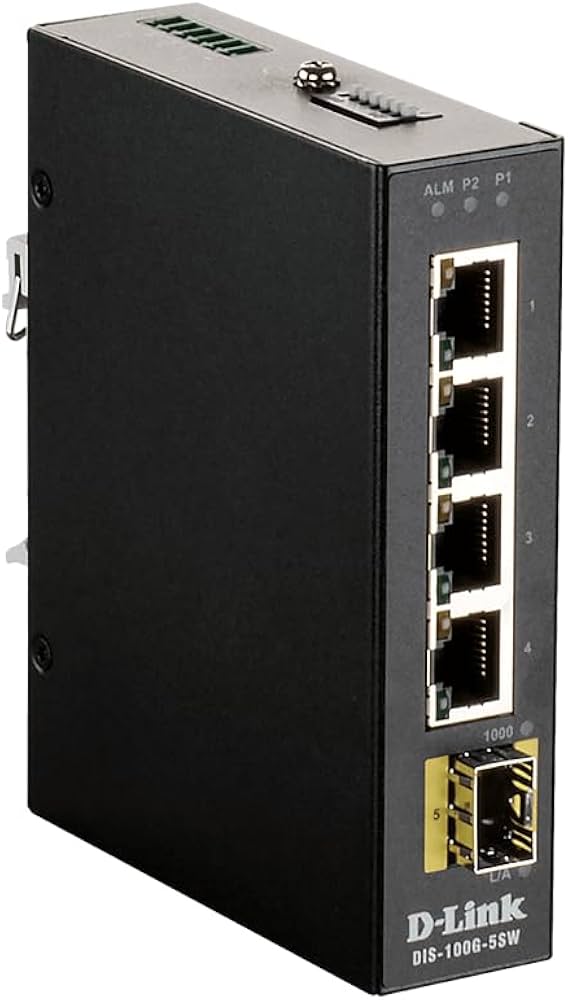

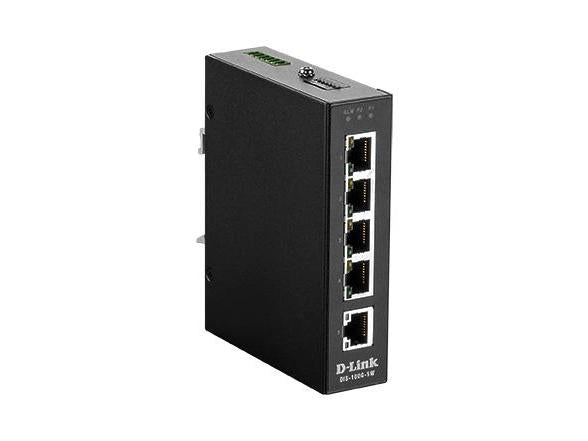

Photo is for illustration purposes only. Actual product may be different.
$208.99
$208.99
Sale Sold out
MSRP: $269.99
Shipping calculated at checkout.
  • 5x 100/1000Base-T Gigabit Ethernet ports
  • Layer 2 unmanaged switch with 9KB jumbo frame support
  • DIN-rail form factor for industrial mounting
  • Wide operating temperature: -40°C to 75°C
  • 12–58V DC power input with 3.18W max consumption
  • MAC table supporting up to 2048 addresses
View full details

Key Benefits

Eye-Insights
  • Engineered for durability with industrial-grade components and wide temperature support (-40°C to 75°C)
  • Low power consumption (3.18W max) and wide DC voltage range (12–58V) make it ideal for diverse field deployments
  • TAA compliance and MTBF >25 years ensure long-term reliability and government procurement readiness

Product Overview

The D-Link DIS-100G-5W is a rugged 5-port industrial switch designed for harsh environments where reliable, high-speed Ethernet connectivity is essential. This unmanaged switch features five 100/1000Base-T ports supporting Gigabit Ethernet, making it ideal for mission-critical deployments in industrial automation, smart city applications, and transportation networks. With Layer 2 switching, a 9KB Jumbo frame capacity, and non-blocking architecture, it ensures smooth data transfer.

With an operating temperature range of -40°C to 75°C, LED status indicators, and DIN-rail mounting, it integrates seamlessly into industrial environments. The 12–58V DC input range and ultra-low 3.18W power consumption add flexibility and energy efficiency. Complying with TAA standards and manufactured in Taiwan, it offers MTBF > 25 years, making it a dependable investment.

Specifications

Primary Information
Network Device Type Switch
Model DIS-100G-5W
Form Factor DIN-rail
Connectivity Technology Wired
Data Transfer Rate 1 Gbps
Networking / Ports Qty 5
Data Link Protocol Gigabit Ethernet
Status Indicators LEDs
Media Layer Supported Layer 2
Max Power Consumption 3.18 Watt
Power / Voltage Required 12 to 58 V DC
MTBF >25 years

Interfaces / Ports
Interfaces 5x 100/1000Base T Ports

Special Feature
Min Operating Temperature -40 Celsius
Max Operating Temperature 75 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 85 Celsius
COO TAIWAN / TAIWAN
TAA compliance Yes

Network
Power Over Ethernet (PoE) Support None
PoE Power Consumption None
MAC Address Table Size 2K
Jumbo Frame Support 9 KB
Interfaces 5x 100/1000Base T Ports

Dimensions&Miscellaneous
Width 112.2 Mm
Depth 29.1 Mm
Height 89.4 Mm
Weight 0.32 Kg

UNSPSC Code
UNSPSC Code 43222612
