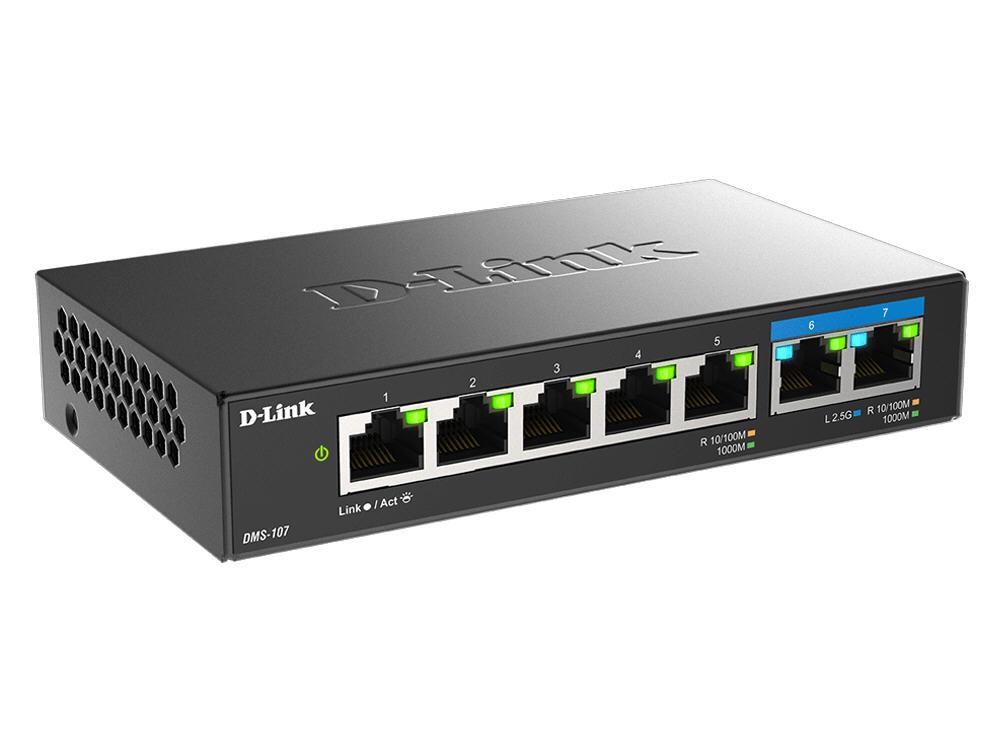

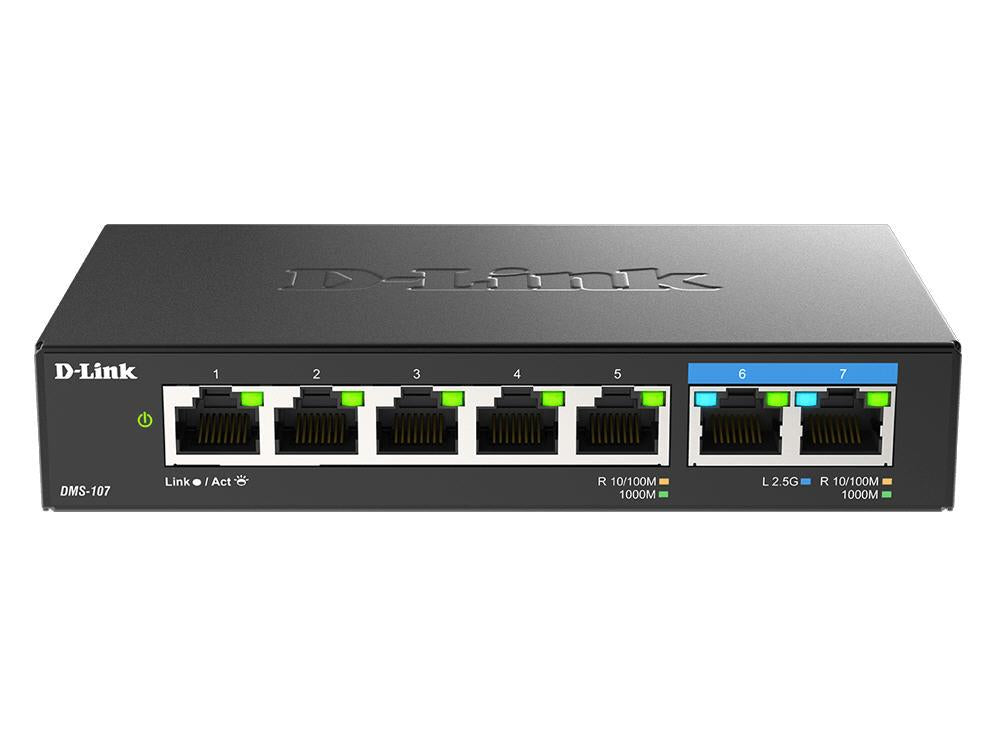

D-LINK DMS-107 7-Port Multi-Gigabit Unmanaged Switch

VENDOR: D-LINK Mfg Part#: DMS-107 UPC#: 790069468261
1 3
Photo is for illustration purposes only. Actual product may be different.
$59.99
$59.99
Sale Sold out
MSRP: $79.99
Shipping calculated at checkout.
  • 7-port switch featuring five Gigabit and two 2.5 Gigabit Ethernet ports
  • Supports data transfer rates up to 2.5 Gbps for high-speed networking
  • IGMP Snooping optimizes multicast performance for streaming applications
  • Fanless design for silent operation in noise-sensitive environments
  • Energy-efficient with a maximum power consumption of only 3.37 watts
  • TAA compliant and manufactured in Taiwan for procurement assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for mixed-speed networks with two dedicated 2.5GbE ports supporting next-gen devices
  • Suitable for multimedia and surveillance with IGMP Snooping enhancing multicast efficiency
  • High reliability with an MTBF of over 944,000 hours ensures robust long-term performance

Product Overview

The D-LINK DMS-107 is a 7-port unmanaged Multi-Gigabit desktop switch featuring five 1Gbps and two 2.5Gbps Ethernet ports. With support for IGMP Snooping, it optimizes multicast distribution, ideal for media streaming. Its fanless design enables silent operation, while its compact size and energy-efficient power use (3.37W max) make it suitable for space-sensitive and low-noise environments. An MTBF of over 944,000 hours ensures long-term reliability, and its TAA compliance adds a layer of procurement compatibility for government or enterprise users.

Specifications

Product Overview
Product Type Unmanaged Network Switch
Form Factor Desktop
Model DMS-107
Manufacturer D-LINK
Manufacturer Part Number DMS-107
Weight 0.65 lbs
Max Power Consumption 3.37 W

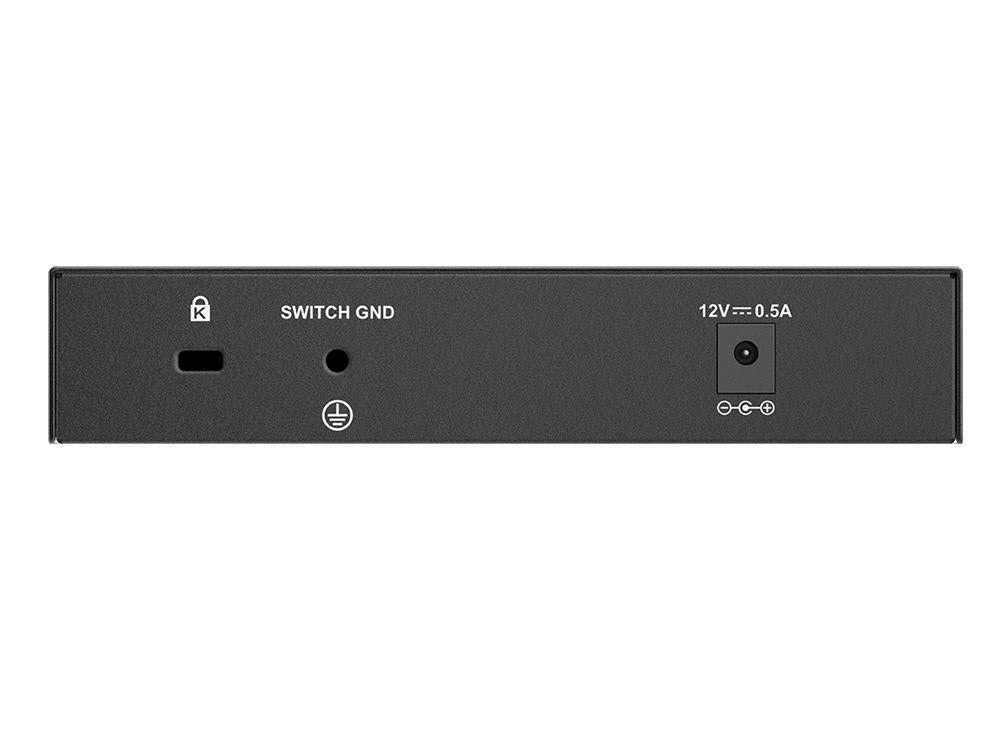

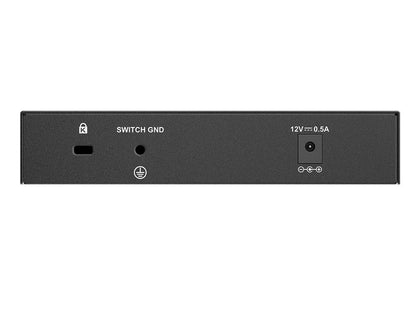

Power Supply Type External Power Adapter
Power Input 12 V DC, 0.5 A
MTBF 944277.78 hours

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, VCCI, BSMI, CB
RoHS Compliant Yes
Energy Efficiency EEE 802.3az (Energy Efficient Ethernet)

Advanced Security Features
IGMP Snooping Yes
QoS Support Yes, 802.1p Priority Queues
Traffic Management Flow Control (IEEE 802.3x)

Interfaces
Total Number of Ports 7
Port Configuration 5 x 10/100/1000 Mbps, 2 x 100Mbps/1G/2.5G
Port Speed - Fast Ethernet 10/100 Mbps
Port Speed - Gigabit Ethernet 10/100/1000 Mbps
Port Speed - Multi-Gig Ethernet 10/100/1000/2500 Mbps
Switching Capacity 28 Gbps
Throughput 20.83 Mpps
MAC Address Table Size 2K entries
Auto MDI/MDIX Yes
Jumbo Frame Support Up to 12,000 bytes

Physical & Environmental
Width 145 mm
Depth 82 mm
Height 28 mm
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -10°C to 70°C
Operating Humidity 10% – 90% RH (non-condensing)
Storage Humidity 5% – 90% RH (non-condensing)
Cooling System Fanless (Silent)
Enclosure Type Metal

Cloud Management & Licensing
Cloud Management No (Unmanaged)
License Requirement No
