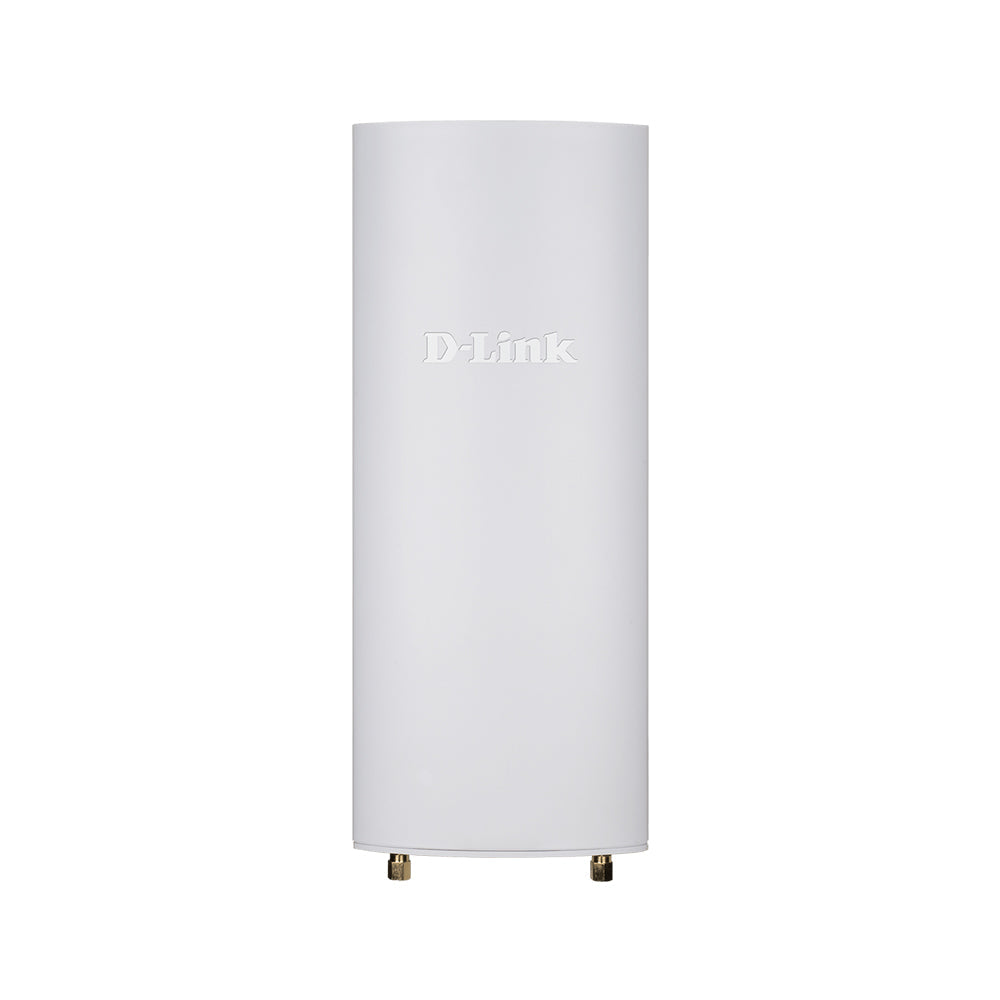

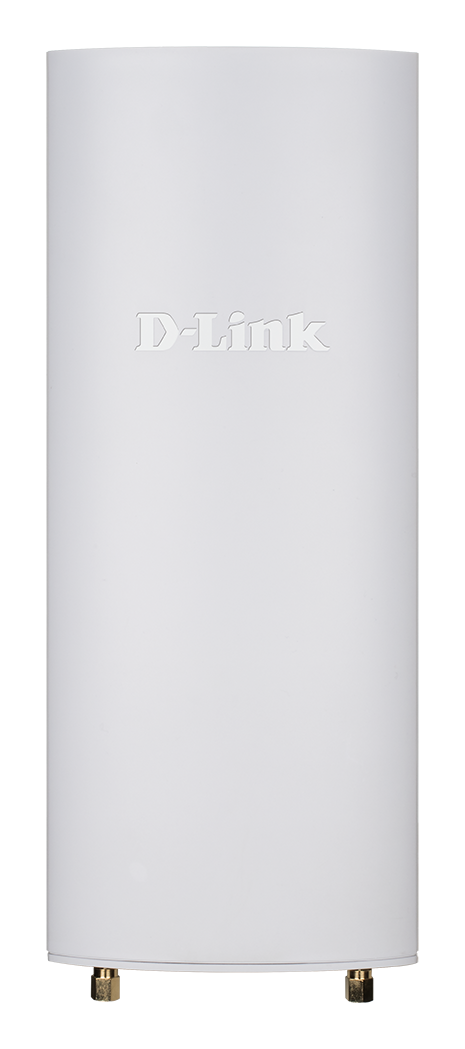

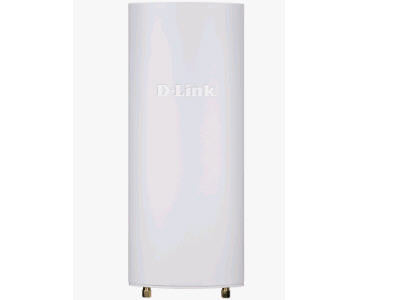

D-Link Nuclias DBA-3620P Cloud-Managed AC1300 Outdoor AP

VENDOR: D-LINK Mfg Part#: DBA-3620P UPC#: 790069452901
1 2
Photo is for illustration purposes only. Actual product may be different.
$158.99
$158.99
Sale Sold out
MSRP: $206.99
Shipping calculated at checkout.
  • Wi-Fi 5 (802.11ac Wave 2) with dual-band support for 2.4 GHz (400 Mbps) and 5 GHz (867 Mbps)
  • Ruggedized IP55-rated outdoor housing with operating temperature from -40 °F to 122 °F
  • Cloud-managed via D-Link Nuclias platform with zero-touch provisioning
  • Supports 2x2 MU-MIMO, beamforming, and band steering for improved performance
  • Power-over-Ethernet (PoE 802.3af) for flexible and simplified deployment
  • Supports up to 16 SSIDs per device and includes enterprise-grade security (WPA3, RADIUS)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for outdoor enterprise environments with dustproof, waterproof IP55 design and wide temperature tolerance
  • Highly scalable cloud-based management reduces deployment time and ongoing IT overhead
  • Strong ROI with long MTBF of over 1.1 million hours and PoE-enabled, low-maintenance design

Product Overview

The D-Link Nuclias DBA-3620P is a cloud-managed, dual-band wireless access point designed for outdoor deployments. It features IP55-rated protection, Wave 2 802.11ac support, and offers speeds up to 1300 Mbps. Enhanced functions like zero-touch provisioning, MU-MIMO, PoE support, and advanced security protocols make it a robust solution for high-density, mission-critical environments.

Specifications

Product Overview
Product Type Wireless Access Point
Device Name D-Link Nuclias DBA-3620P
Wi-Fi Rating AC1300
Form Factor Wall / pole mountable - outdoor
Ruggedized Design Outdoor
Connectivity Technology Wireless
Power Over Ethernet (PoE) Supported Yes
Power Consumption (Operational) 13.5 Watt
MTBF 1,142,136 hours

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac Wave 2
Maximum Data Rate (2.4 GHz) 400 Mbps
Maximum Data Rate (5 GHz) 867 Mbps
Frequency Bands 2.4 GHz, 5 GHz
MU-MIMO 2x2 MU-MIMO technology
Beamforming Yes
Number of SSIDs per device 16
Number of SSIDs per band 8
Band Steering Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Compliance Standards IEEE 802.3u, 802.3i, 802.3ab, 802.11b/a/g/n/ac Wave 2, 802.3af, 802.3x, 802.3az, 802.1x, 802.11i
Certifications FCC Class B, IC Class B, UL, SAE

Advanced Security Features
Authentication Methods RADIUS, SSID-based
Encryption Algorithms AES, WPA, WPA2, WPA3
Security Features MAC address filtering, rogue access point detection, captive portal, 802.1x authentication, station isolation

Interfaces
LAN Interfaces 1 x 1000Base-T RJ-45 (PoE)
Console Port 1 x RJ-45
Antenna Ports 2 x R-SMA
Directivity Omni-directional
Internal Antenna Yes
Data Link Protocols IEEE 802.11b, 802.11a, 802.11g, 802.11n, 802.11ac Wave 2
Network / Transport Protocol DHCP

Physical & Environmental
Width 4.5 in
Depth 2.6 in
Height 11.5 in
Weight 28.99 oz
Min Operating Temperature -40 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 - 90% (non-condensing)
Ingress Protection Rating IP55

Cloud Management & Licensing
Cloud-Managed Yes
Zero-Touch Provisioning Yes
Remote Management Protocol RADIUS
