| Product Type | Processor Upgrade Module |
| Compatible Model | Durabook R11(H7) |
| Processor Family | Intel Core i7 |
| Processor Model | i7-1255U |
| Processor Generation | 12th Gen |
| Lithography | Intel 7 |
| Form Factor | Onboard/Module |
| Power Requirements | 15 W (Base Power) |
| Vertical Market | Mobile |
| Use Case | Field Applications, Government, Defense |
Durabook R11(H7) i7-1255U vPro Upgrade Module

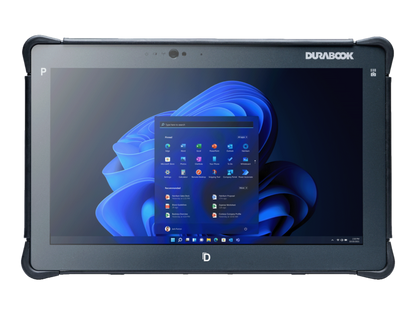

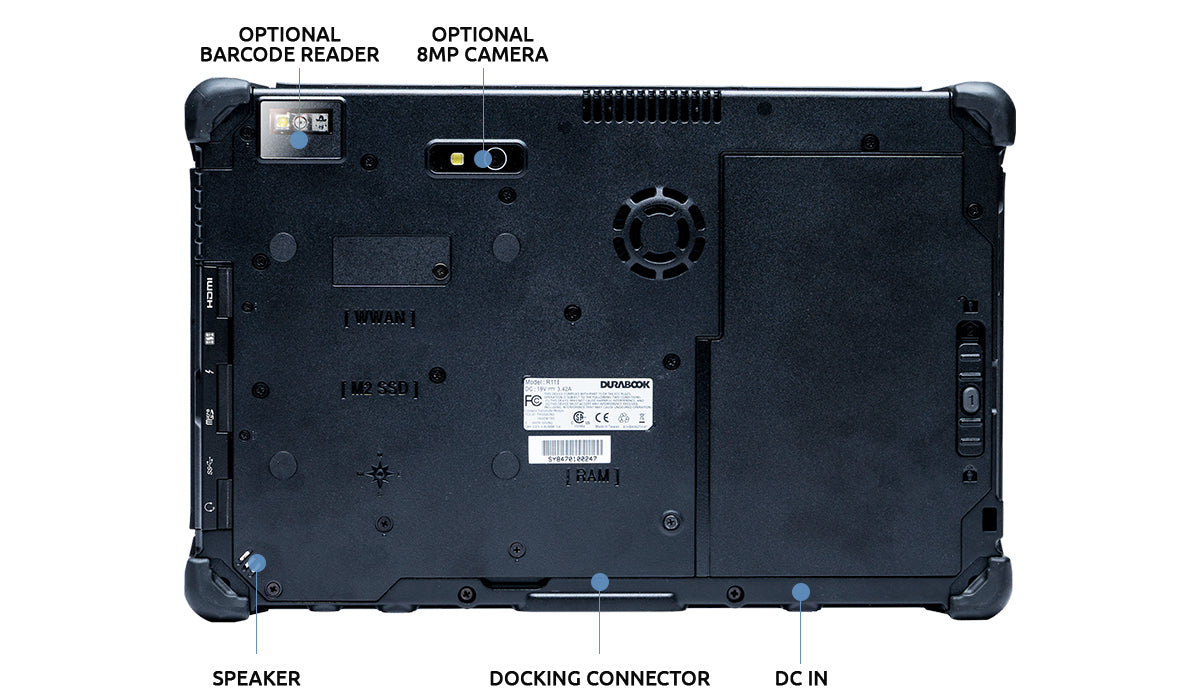

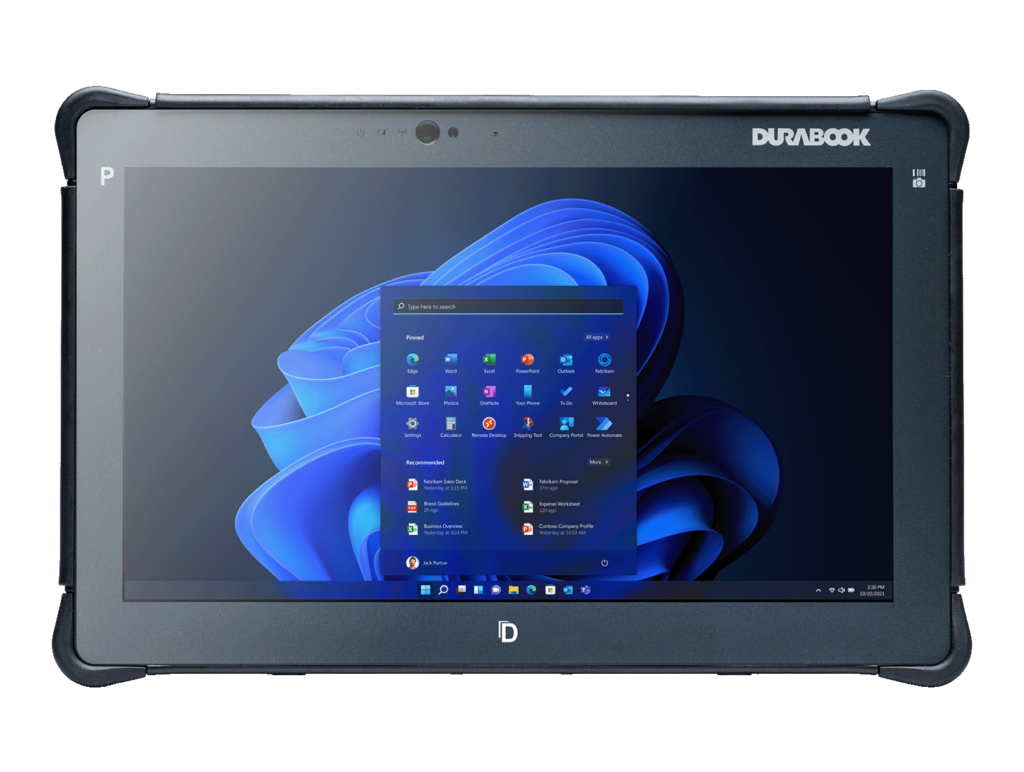

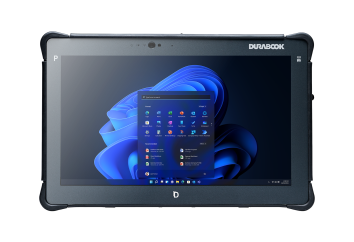

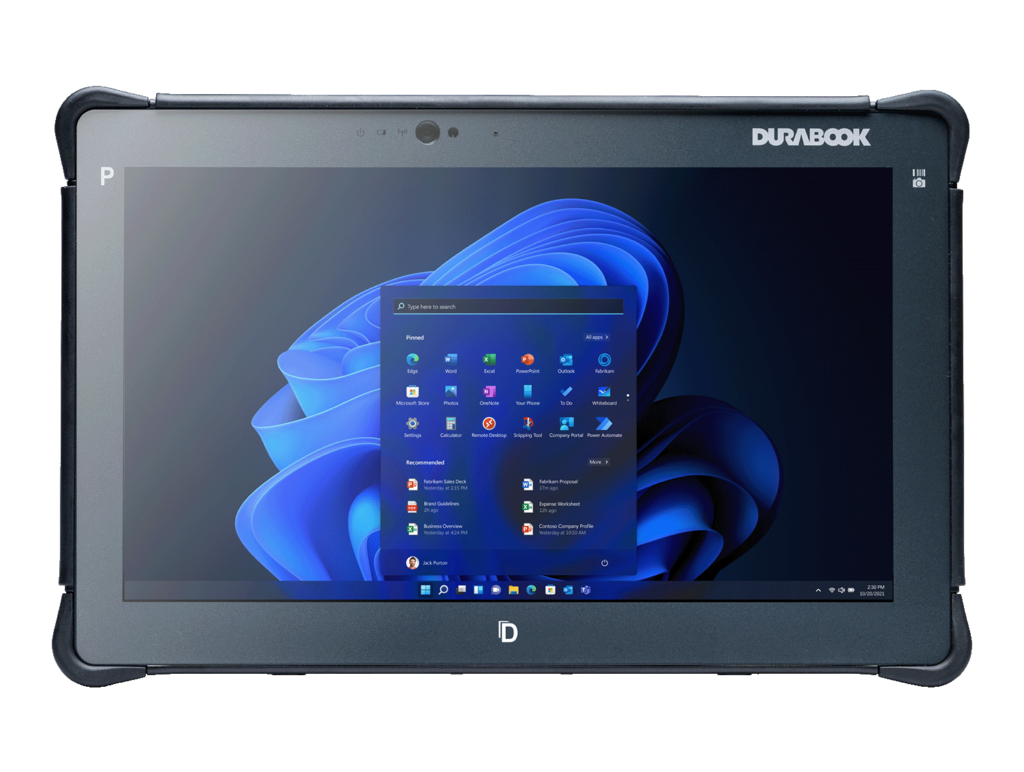

Photo is for illustration purposes only. Actual product may be different.
Regular price
$229.91
Regular price
Sale price
$229.91
Unit price
per
MSRP: $249.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Intel Core i7-1255U with 10 cores and 12 threads
- Turbo clock speeds up to 4.7 GHz with Smart Cache of 12 MB
- Supports up to 64 GB DRAM across 2 memory channels
- Intel Iris Xe Graphics with max dynamic frequency of 1.25 GHz
- External display resolutions up to 7680 x 4320 @ 60Hz
- TAA compliant and manufactured in Taiwan
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Boosts Durabook R11(H7) processing power with 10-core Intel i7-1255U for enhanced multitasking
- Includes Intel vPro features for enterprise-grade security and remote management
- TAA compliance and Taiwanese origin make it ideal for regulated environments like government and defense
Product Overview
The Durabook R11(H7) Upgrade to Intel Core i7-1255U vPro processor module delivers 10-core, 12-thread performance with up to 4.7 GHz turbo boost and 12 MB Smart Cache. Engineered on Intel 7 lithography, it supports up to 64 GB DRAM with dual-channel operation. Integrated Intel Iris Xe Graphics allow ultra-high-resolution display capabilities up to 7680 x 4320 @ 60 Hz. This TAA-compliant upgrade is ideal for government, defense, and high-performance field applications, improving system productivity and extending device lifespan.
Specifications
Product Overview
Wireless Features
| Integrated Wi-Fi | Requires external Wi-Fi module (compatible) |
| Bluetooth Support | Requires external Bluetooth module (compatible) |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| RoHS Compliance | Yes |
| Halogen Free | Yes |
| Energy Star Certified | Yes, when part of Energy Star compliant system |
| Conflict Mineral Free | Yes |
Advanced Security Features
| Trusted Execution Technology (TXT) | Yes |
| Intel Boot Guard | Yes |
| Intel AES New Instructions | Yes |
| Secure Boot | Supported via firmware |
| TPM Support | Yes (Platform Firmware TPM) |
| BIOS Guard | Yes |
| Mode-based Execute Control (MBE) | Yes |
Interfaces
| Graphics Interface | Integrated Intel Iris Xe Graphics |
| Display Interface Support | Embedded DisplayPort (eDP), HDMI, Thunderbolt (with platform support) |
| External Display Resolution Support | Up to 7680 x 4320 @ 60 Hz |
| Max Displays Supported | 4 |
| PCI Express Revision | 4.0 |
| PCI Express Configurations | Up to 4x4, 2x8 |
| Total PCI Express Lanes | 28 |
Physical & Environmental
| Cooling Solution | Passive or active depending on host device |
| Operating Temperature | 0°C to 100°C junction temperature |
| Storage Temperature | -40°C to 125°C |
| Thermal Design Power (TDP) | 15 Watts |
| Weight | Dependent on system integration |
| Dimensions | Dependent on system integration |
| Humidity Range (Operating) | No data - defined by device enclosure |
Cloud Management & Licensing
| Intel vPro Support | Yes |
| Remote Management | Intel Active Management Technology (AMT) |
| Intel Platform Trust Technology (PTT) | Yes |
| Licensing Requirements | None (OEM module) |
