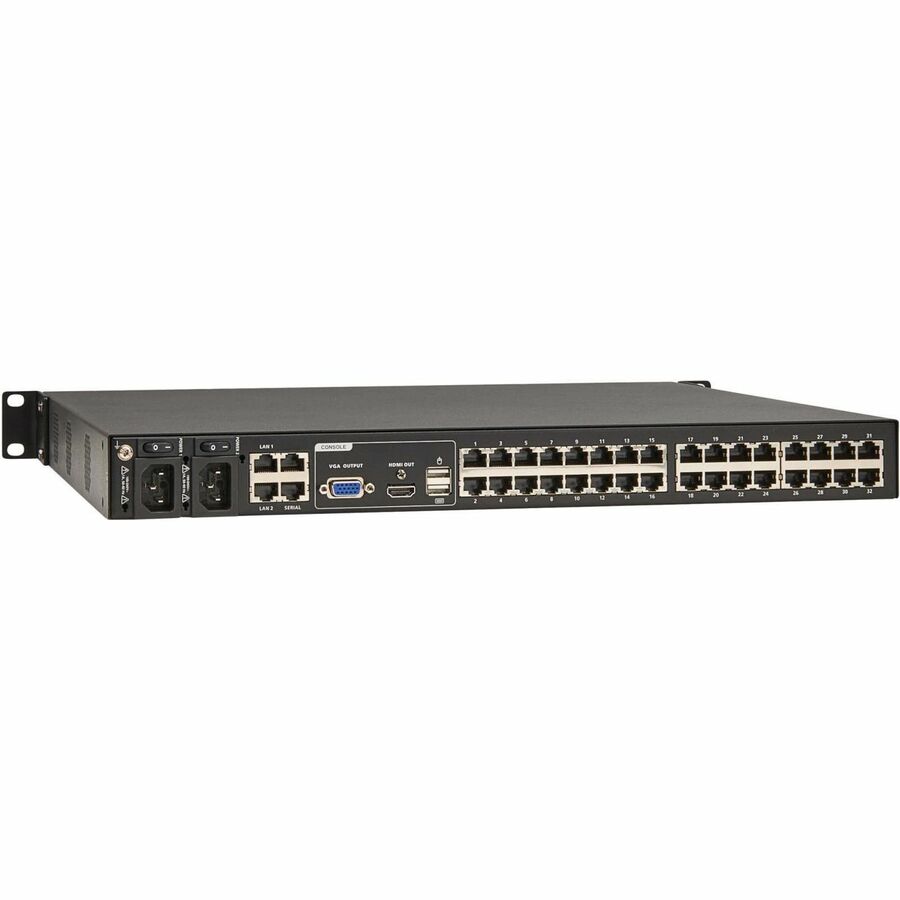

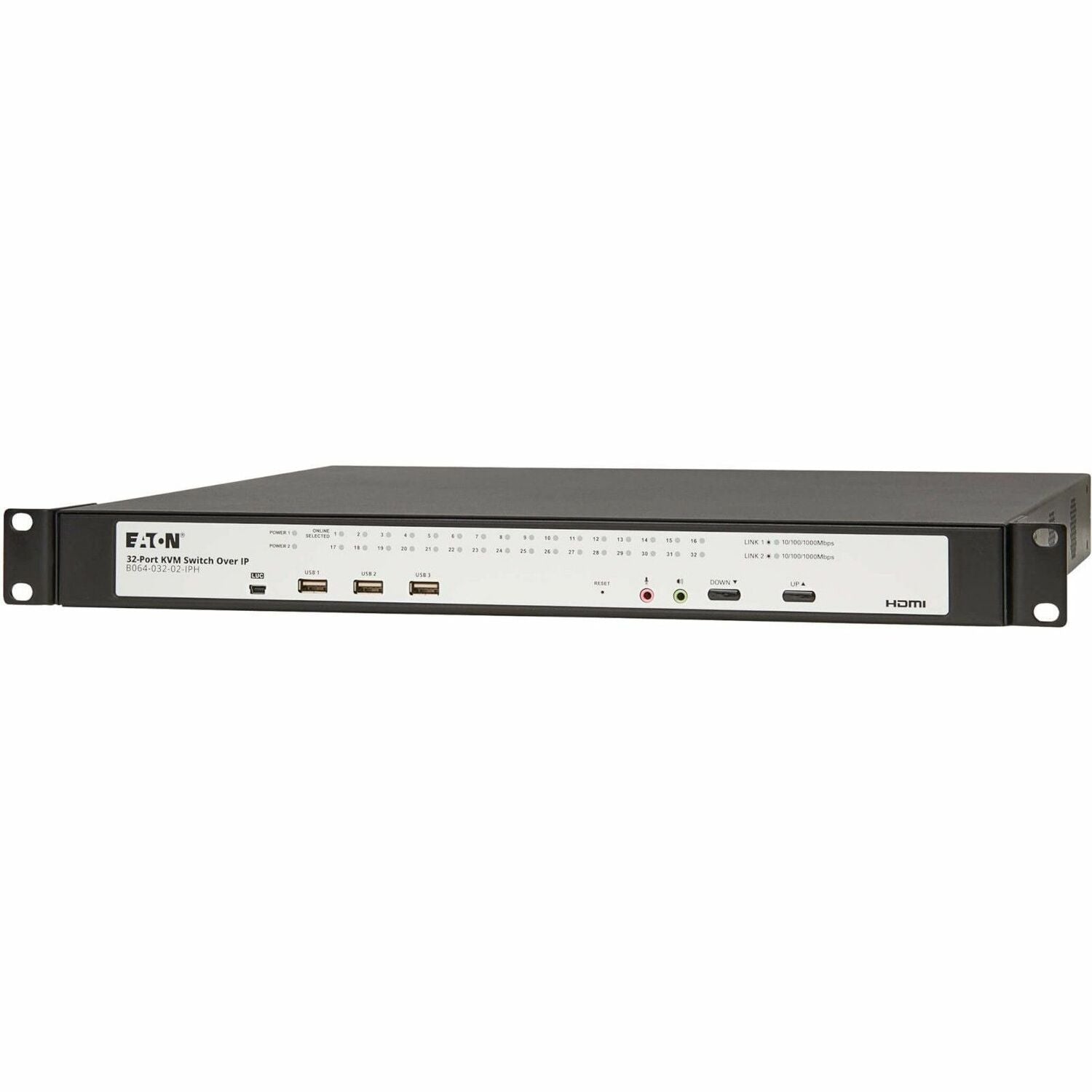

Eaton 32-Port Cat5e KVM over IP Switch, 3 Users, HDMI, 1U Rack, TAA

VENDOR: EATON Mfg Part#: B064-032-04-IPH UPC#: 037332285997
1 5
Photo is for illustration purposes only. Actual product may be different.
$7,826.50
$7,826.50
Sale Sold out
MSRP: $12,647.00
Shipping calculated at checkout.
  • Supports up to 32 servers over Cat5e with virtual media functionality
  • Up to 3 remote and 1 local user access simultaneously
  • 1920 x 1200 HDMI video output for high-resolution display
  • Compact 1U rack-mount form factor
  • Interfaces include USB-A, USB Mini-B 5-Pin, 3.5mm, RJ45
  • TAA-compliant and RoHS certified; 3-year limited warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides centralized access and control of 32 servers from virtually anywhere, improving IT responsiveness
  • High-resolution HDMI output and multi-user functionality support advanced server management workflows
  • TAA compliance and robust warranty support make it suitable for government and enterprise procurement

Product Overview

Eaton 32-Port Cat5e KVM over IP Switch - Virtual Media, 3 Remote/1 Local User, HDMI Output, 1U Rack-Mount, TAA - USB-A, 3.5MM, USB Mini-B 5-Pin, RJ45 - 3-year limited warranty

Specifications

Product Overview
Product Type KVM over IP Switch
Manufacturer Eaton
Model B064-032-04-IPH
Form Factor 1U Rack-Mount
Mounting Type Rack-mountable
Color Black
Weight 9.3 lbs
Number of Users Supported 3 Remote / 1 Local
Power Supply Type Internal power supply
Input Voltage 100–240V AC
Power Consumption (Max) 37W
Virtual Media Support Yes

Wireless Features
Wireless Support

Compliance & Origin
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC, REACH
Country of Origin Taiwan

Advanced Security Features
Encryption SSL, AES, RSA
User Access Security Multi-level password and username security
IP Filtering Yes
Login Failures Monitoring Yes
Event Logging Yes

Interfaces
Network Interface Ethernet
Connectivity Technology Wired
Network Ports (RJ-45) 32 x RJ-45 for Computer Connections
Local Console Ports 1 x USB-A, 1 x HDMI, 1 x 3.5mm Audio, 1 x USB Mini-B
IP Users 3 Remote over IP
Local Users 1 Local
Maximum Resolution 1920 x 1200 @ 60Hz
Video Output HDMI
USB Ports Yes (USB-A, USB Mini-B)

Physical & Environmental
Width 17.055 in
Depth 16.271 in
Height 1.72 in
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Operating Humidity 0% to 80% RH (non-condensing)
Storage Humidity 0% to 95% RH (non-condensing)

Cloud Management & Licensing
Remote Management Yes, via web browser or client software
Client Software Support Windows, Linux, macOS
Authentication Methods LDAP, RADIUS, Active Directory
Session Management Multi-user simultaneous access
License Requirement No additional licensing required
