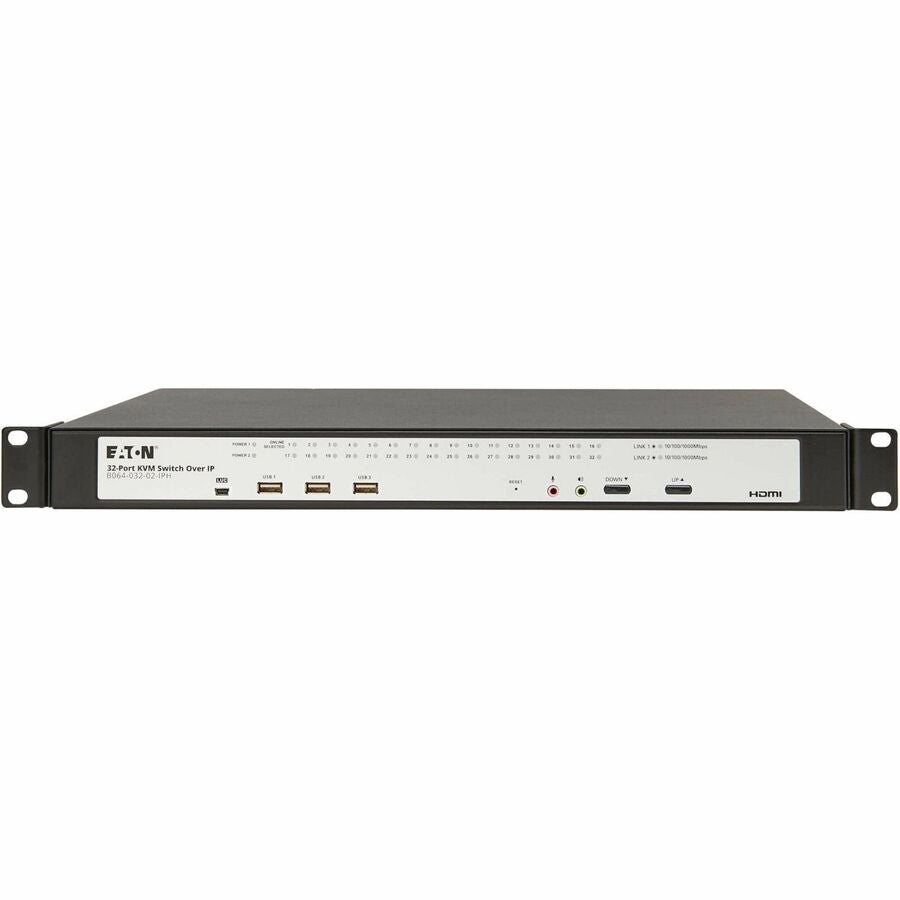

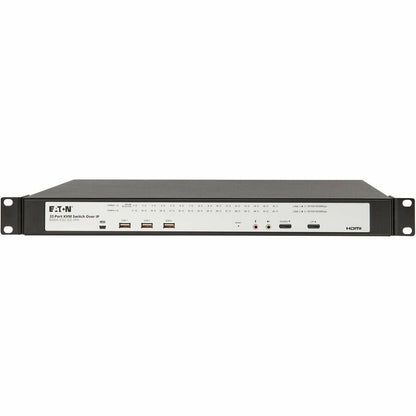

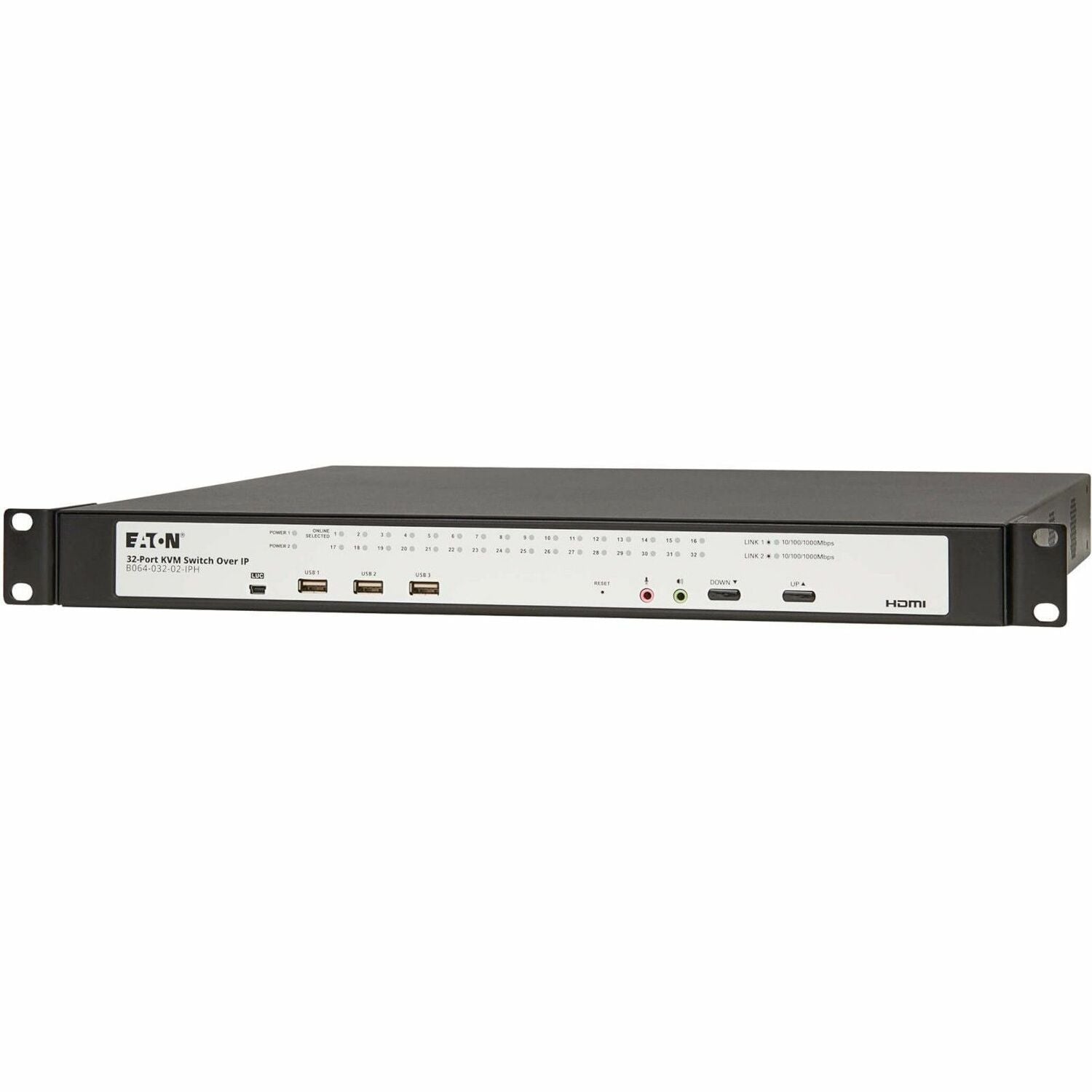

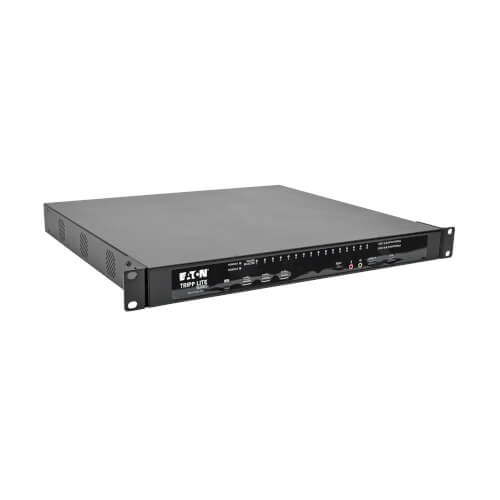

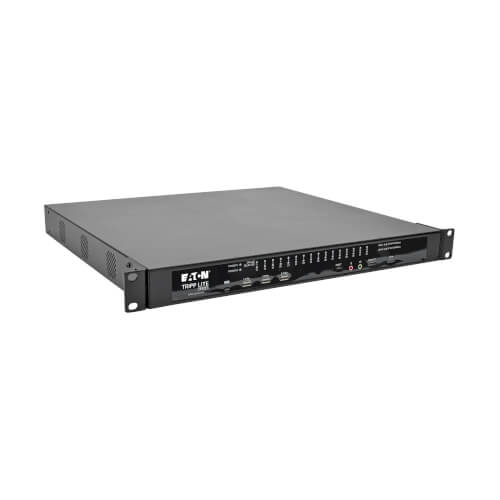

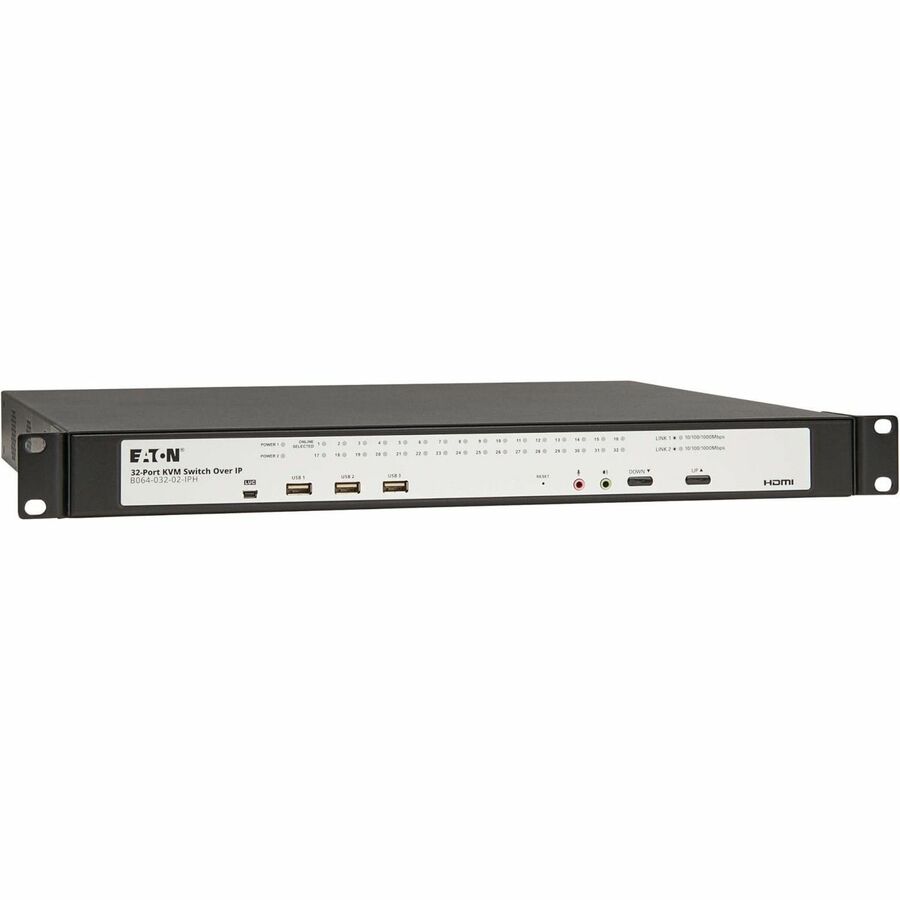

Eaton 32-Port Cat5e KVM over IP Switch with HDMI & Virtual Media

VENDOR: EATON Mfg Part#: B064-032-01-IPH UPC#: 037332285959
1 5
Photo is for illustration purposes only. Actual product may be different.
$5,016.34
$5,016.34
Sale Sold out
MSRP: $8,106.00
Shipping calculated at checkout.
  • Supports control of up to 32 computers or servers via Ethernet connectivity
  • 1U rack-mount form factor for space-efficient deployment
  • Dual user access: 1 remote and 1 local user
  • HDMI video output with resolution up to 1920 x 1200
  • Interfaces include USB-A, 3.5mm audio, USB Mini-B 5-Pin, and RJ45
  • TAA-compliant and backed by a 3-year limited warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprise and government IT infrastructures requiring centralized, remote server control
  • Compact 1U form maximizes rack space while offering 32-port capacity
  • Virtual media support enhances remote diagnostics and secure software deployment

Product Overview

Eaton 32-Port Cat5e KVM over IP Switch - Virtual Media, 1 Remote/1 Local User, HDMI Output, 1U Rack-Mount, TAA - USB-A, 3.5MM, USB Mini-B 5-Pin, RJ45 - 3-year limited warranty

Specifications

Product Overview
Product Type KVM over IP Switch
Form Factor 1U Rack-Mount
Device Type KVM Switch
Supported Users 1 Local / 1 Remote
Number of Ports 32
Weight 14.77 lbs (6.7 kg)
Power Supply Type Internal power supply
Power Consumption 30W
Enclosure Color Black
Mounting Type Rack-mountable
Warranty 3-year limited warranty

Cloud Management & Licensing
Remote Management Yes (via IP)
Virtual Media Support Yes
Browser-Based Access Yes
Authentication Support LDAP, RADIUS, TACACS+
Management Protocols SNMP, HTTPS, SSH

Physical & Environmental
Width 17.06 in (433.5 mm)
Depth 16.27 in (413.3 mm)
Height 1.72 in (43.6 mm)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Operating Humidity 0% to 80% RH, non-condensing
Storage Humidity 0% to 95% RH, non-condensing

Interfaces
Computer Interface Ports 32 x RJ45
Local Console Ports 1 x HDMI, 2 x USB-A, 1 x 3.5mm Audio
Network Port 1 x RJ45 Gigabit Ethernet
USB Mini-B Port 1 x USB Mini-B 5-Pin
Maximum Video Resolution 1920 x 1200 @ 60Hz
Video Output HDMI
Keyboard/Mouse Interface USB
Console Ports 1 HDMI, 2 USB, 1 3.5mm

Advanced Security Features
User Authentication Multi-level password security
Encryption 128-bit SSL, AES encryption
Event Logging Yes
Session Timeout Configurable
IP/MAC Filtering Yes

Compliance & Origin
RoHS Compliant Yes
TAA Compliant Yes
Country of Origin Taiwan
Certifications CE, FCC, REACH
Safety Standards UL, cUL
