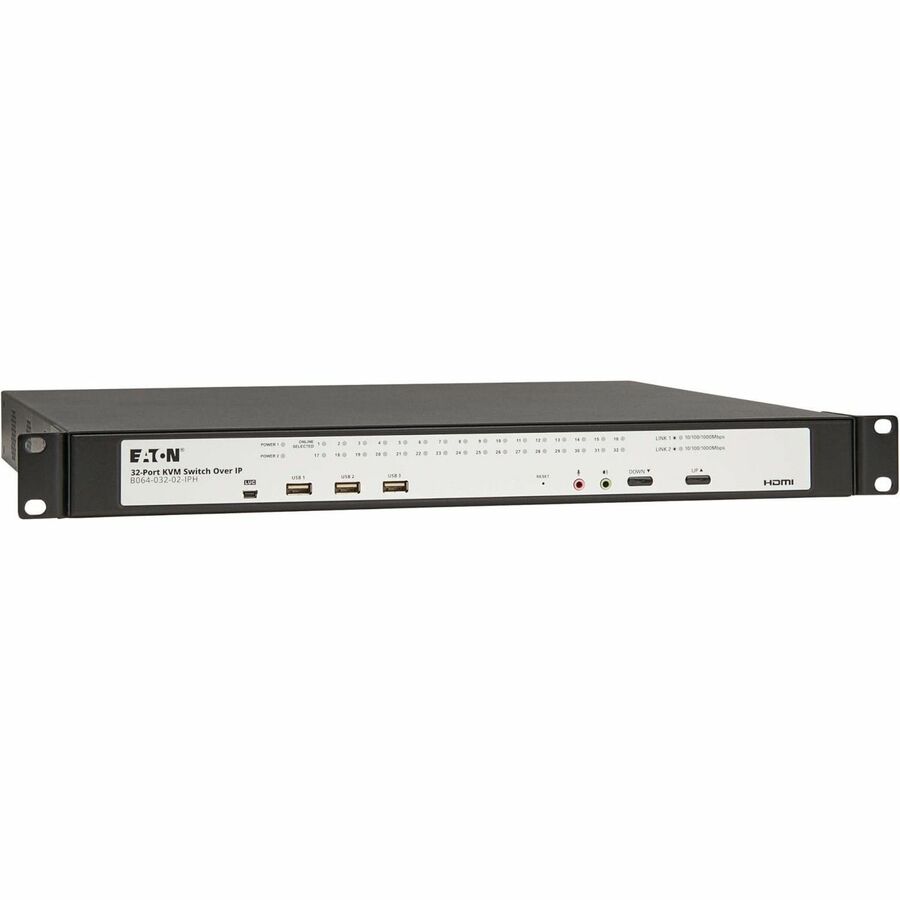

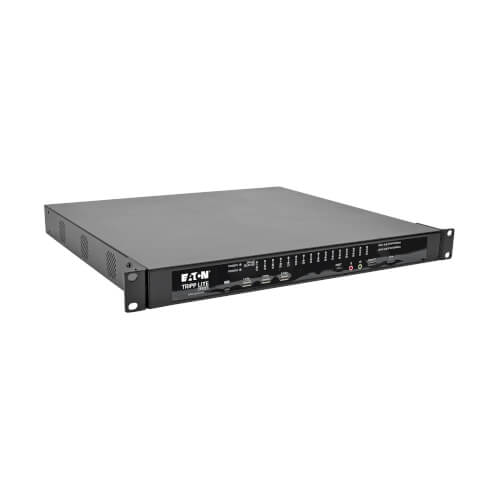

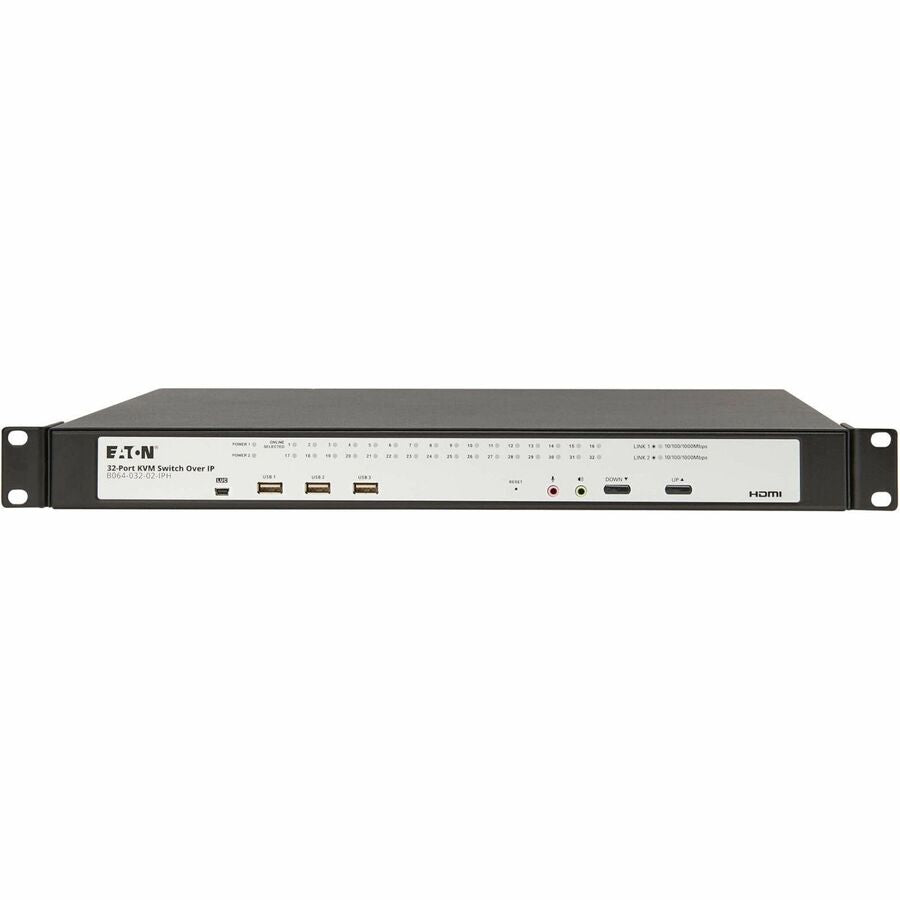

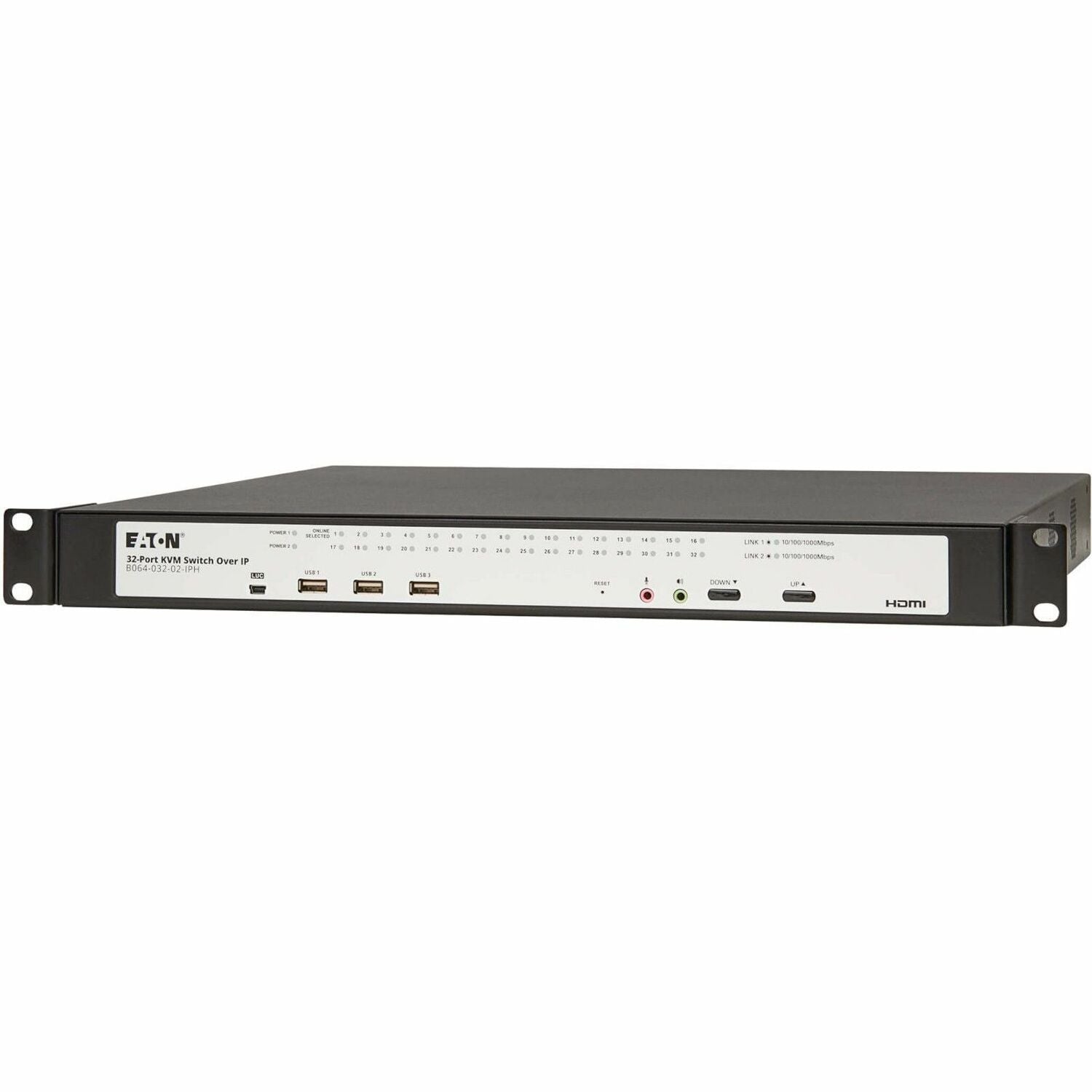

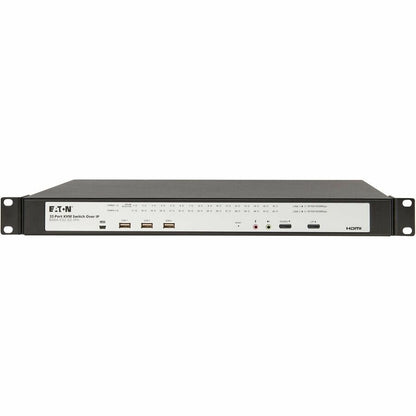

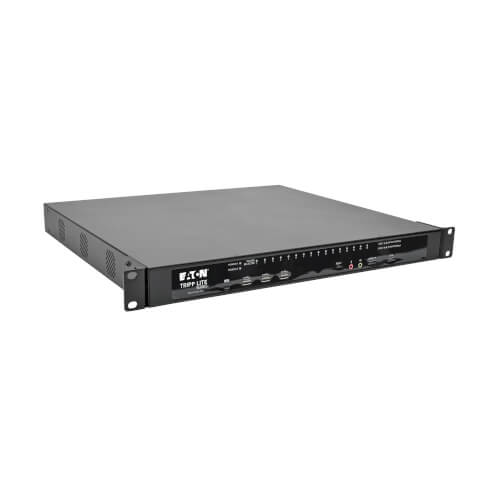

Eaton 32-Port Cat5e KVM over IP Switch with HDMI & Virtual Media

VENDOR: EATON Mfg Part#: B064-032-02-IPH UPC#: 037332285973
1 5
Photo is for illustration purposes only. Actual product may be different.
$5,692.12
$5,692.12
Sale Sold out
MSRP: $9,198.00
Shipping calculated at checkout.
  • Supports up to 32 servers or computers with IP-based control from anywhere
  • Interfaces include USB-A, 3.5MM, USB Mini-B 5-Pin, and RJ45 for flexible connectivity
  • Allows 3 users simultaneously (2 remote, 1 local)
  • HDMI video output supports resolution up to 1920 x 1200
  • 1U form factor for space-efficient rack integration
  • TAA and RoHS compliant, designed for secure deployments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Maximizes server management efficiency by allowing global IP-based access from multiple users
  • Conserves rack space with its 1U size while supporting high-resolution HDMI output
  • Ideal for government and federal applications with full TAA and RoHS compliance

Product Overview

Eaton 32-Port Cat5e KVM over IP Switch - Virtual Media, 2 Remote/1 Local User, HDMI Output, 1U Rack-Mount, TAA - USB-A, 3.5MM, USB Mini-B 5-Pin, RJ45 - 3-year limited warranty

Specifications

Product Overview
Product Type KVM over IP Switch
Manufacturer Eaton
Model B064-032-02-IPH
Form Factor 1U Rack-Mount
Mounting Type Rack-mountable
Color Black
Weight 7.28 lbs (3.3 kg)
Power Supply 100–240V AC, 50/60Hz
Power Consumption (Max) 24W
Number of Users Supported 3 (2 remote, 1 local)
Number of Connected Computers 32
Virtual Media Support Yes

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications FCC, CE, UL, cUL
Warranty 3-year limited warranty

Advanced Security Features
User Authentication Local, LDAP, RADIUS, Active Directory
Encryption RC4 128-bit, SSL, HTTPS, SSH
Password Protection Yes
IP/MAC Filtering Yes
Event Logging Yes

Interfaces
KVM Ports 32 x RJ45 (Cat5e)
Local Console Ports 1 x HDMI, 2 x USB-A, 1 x 3.5mm Audio, 1 x USB Mini-B
Remote Access Ports 2 x RJ45 Ethernet
Network Interface 10/100/1000 Mbps Ethernet
Maximum Supported Resolution 1920 x 1200 @ 60 Hz
USB Ports 2 x USB-A (console)
Audio Interface 3.5mm stereo jack

Physical & Environmental
Width 17.055 in. (433.2 mm)
Depth 16.271 in. (413.3 mm)
Height 1.72 in. (43.69 mm)
Operating Temperature 32 – 104°F (0 – 40°C)
Storage Temperature -4 – 140°F (-20 – 60°C)
Operating Humidity 0 – 80% RH, non-condensing
Storage Humidity 0 – 90% RH, non-condensing

Cloud Management & Licensing
Management Interface Web-based GUI, CLI, Telnet, SSH
Remote Management Yes, via IP
SNMP Support Yes
LDAP/AD Support Yes
