Products Memory, Storage and Components Eaton 93PM 125kW UPS, 208V,...

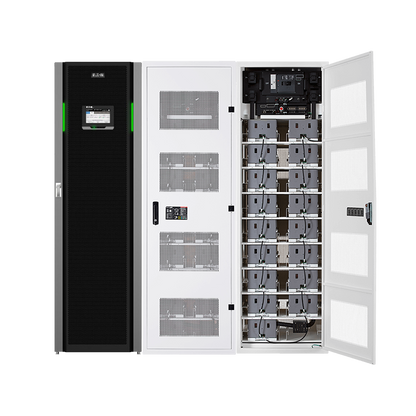

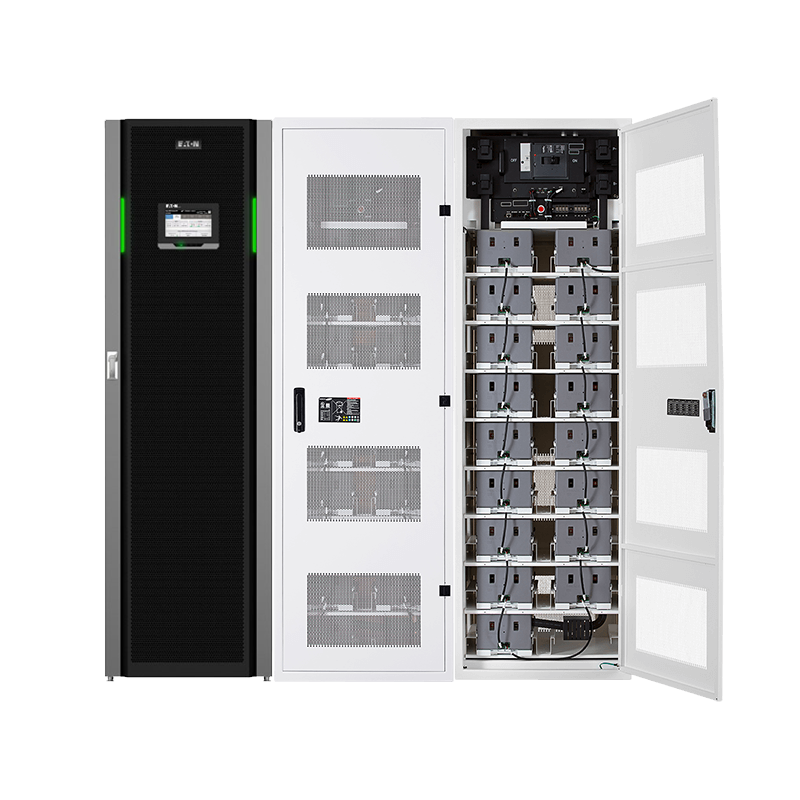

Eaton 93PM 125kW UPS, 208V, N+1, No Battery, IAC-B Bypass

VENDOR: EATON Mfg Part#: 9GH825A029A00R1
1 2
Photo is for illustration purposes only. Actual product may be different.
$76,802.89
$76,802.89
Sale Sold out
MSRP: $118,982.00
Shipping calculated at checkout.
  • 125kW power capacity with 208V input
  • Supports multiple battery types: VRLA, Lithium, AGM, Gel, and Wet
  • No-battery configuration with N+1 redundancy and IAC-B bypass
  • Front-access design with standard rack-depth alignment
  • 42-inch depth and 74-inch height for efficient space utilization
  • Manufactured in Finland; TAA compliant for government use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Highly reliable 125kW UPS with N+1 redundancy ensures maximum uptime for critical operations.
  • Flexible deployment options and battery compatibility support diverse infrastructure requirements.
  • TAA compliance and Finnish manufacturing ensure suitability for federal and high-assurance environments.

Product Overview

Eaton 93PM UPS - 125KW - 208V - Maximizes deployment flexibility with thermal management options, flexible configurability and full-service access from the front, Simplifies installation by fitting perfectly in line or alongside any standard-depth rack, no batt N+1, IAC-B Bypass

Specifications

Product Overview
Product Name Eaton 93PM 125kW UPS, 208V, N+1, No Battery, IAC-B Bypass
Manufacturer EATON
Model Eaton 93PM UPS
Part Number 9GH825A029A00R1
Product Type Three-phase Online Double Conversion UPS
Power Capacity 125 kW
Output Voltage 208V
Input Voltage 208V
Form Factor Tower
Redundancy N+1
Bypass Type Integrated IAC-B Bypass
Hot-swappable Modules Yes
Weight Approximately 2200 lbs (998 kg) without batteries
Power Topology Double Conversion (Online)
Battery Included No

Wireless Features
Wireless Connectivity

Compliance & Origin
TAA Compliant Yes
Country of Origin Finland
Certifications UL 1778, CSA, CE, RoHS
Safety Standards IEC 62040-1
EMI/RFI Compliance IEC 62040-2

Advanced Security Features
User Authentication Role-Based Access Control (RBAC)
Encrypted Communication HTTPS, SNMPv3
Event Logging Yes

Interfaces
Communication Interfaces RS-232, USB, Modbus RTU, Modbus TCP/IP, SNMP, Relays
Network Interface Optional Network-MS Card
Slots for Communication Cards 2
LCD Display 7-inch Color Touchscreen LCD

Physical & Environmental
Height 74 inches (1880 mm)
Width 26.7 inches (678 mm)
Depth 42 inches (1067 mm)
Operating Temperature 0° to 40°C (32° to 104°F)
Storage Temperature -15° to 60°C (5° to 140°F)
Relative Humidity 0–95%, non-condensing
Altitude (Max Operating) 1000 m (no derating); up to 2000 m (with derating)
Audible Noise <65 dBA at 1 meter

Cloud Management & Licensing
Management Platform Eaton Intelligent Power Manager (IPM) compatible
Remote Monitoring Yes, with optional Network-MS card
Cloud Integration Yes, with Eaton IPM and Brightlayer enabled
SNMP Management Yes
Web Management Interface Yes
