Eaton 93PM 208V 20kW UPS, Tower, Double Conversion, Lithium Battery

VENDOR: EATON Mfg Part#: 9GC104A229E20R1
1 2

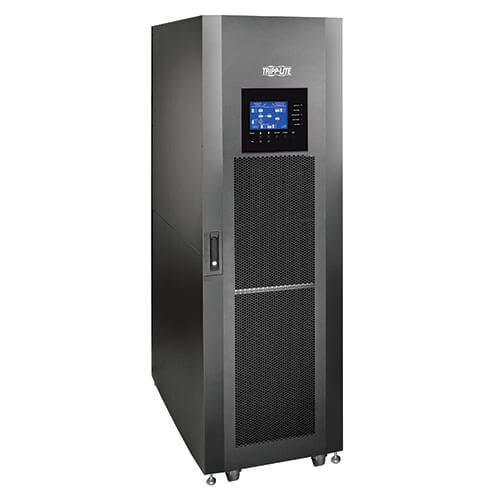

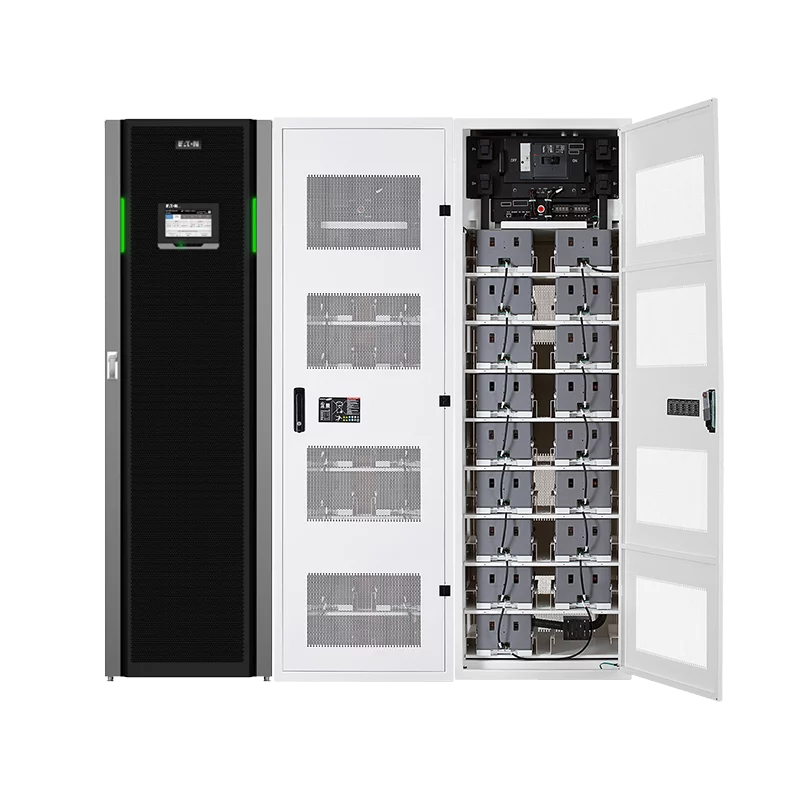

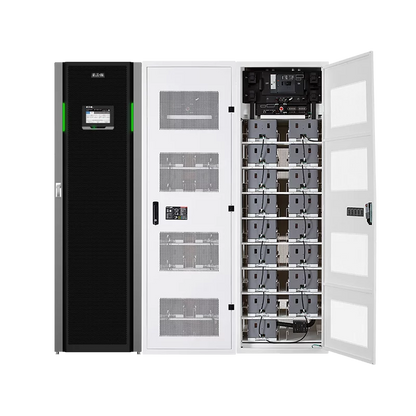

Photo is for illustration purposes only. Actual product may be different.
$44,205.14
$44,205.14
Sale Sold out
MSRP: $68,482.00
Shipping calculated at checkout.
  • 20kW double-conversion UPS with 208V input/output for continuous power protection
  • Includes two lithium battery strings for improved longevity and charge cycles
  • Integrated circuit breaker for advanced circuit protection
  • All communication cards included for system integration and remote management
  • Tower form factor (22"W x 42"D x 74"H) for adaptable deployment
  • Manufactured in Finland with TAA compliance and limited warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers mission-critical uptime with 20kW double-conversion technology and circuit breaker protection
  • Reduces maintenance and replacement costs with lithium batteries and included communication features
  • Ideal for regulated industries thanks to Finland manufacturing origin and TAA compliance

Product Overview

Eaton 93PM 208v 20kW; 2 strings batteries, all comm cards - Tower - Limited factory warranty

Specifications

Product Overview
Manufacturer EATON
Model Eaton 93PM
Part Number 9GC104A229E20R1
Product Type UPS
Form Factor Tower
UPS Technology Double Conversion (Online)
Output Power Capacity 20 kW
Output Voltage 208V
Input Voltage 208V
Power Capacity (VA) 25000 VA
Nominal Frequency 50/60 Hz auto-sensing
Efficiency Up to 97%
Power Factor 0.9+
Redundancy N+1 scalable architecture
Weight Approximately 1610 lbs (730 kg)
Power Requirements 208V 3-phase

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin Finland
TAA Compliant Yes
Certifications UL 1778, CSA, FCC Class A, IEC 62040-1, IEC 62040-2

Advanced Security Features
Security Protocol Support SNMP v3, HTTPS, SSH
User Access Control Password-protected menu and role-based access

Interfaces
Interface Type USB, RS-232, SNMP, Relay Contacts
Network Management Card Included (Network-M2 or equivalent)
Number of Communication Ports Up to 4 slots for communication cards
Slot Type Mini-Slot Communication Bays

Physical & Environmental
Width 22 inches (559 mm)
Depth 42 inches (1067 mm)
Height 74 inches (1880 mm)
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Storage Temperature -15°C to 50°C (5°F to 122°F)
Operating Humidity 0% to 95% non-condensing
Audible Noise < 65 dB
Cooling Method Forced Air with Redundant Fans

Cloud Management & Licensing
Cloud Monitoring Support Eaton Intelligent Power Manager Compatible
Remote Management Yes, via optional network card
Licensing Requirements IPM license required for advanced features
User Interface Touchscreen LCD Display
