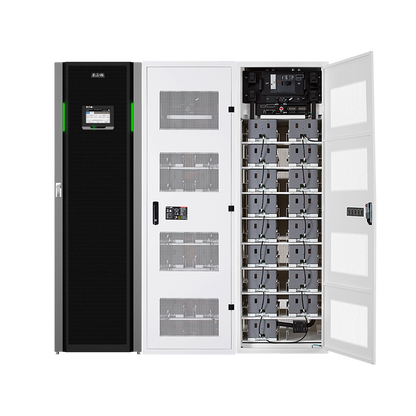

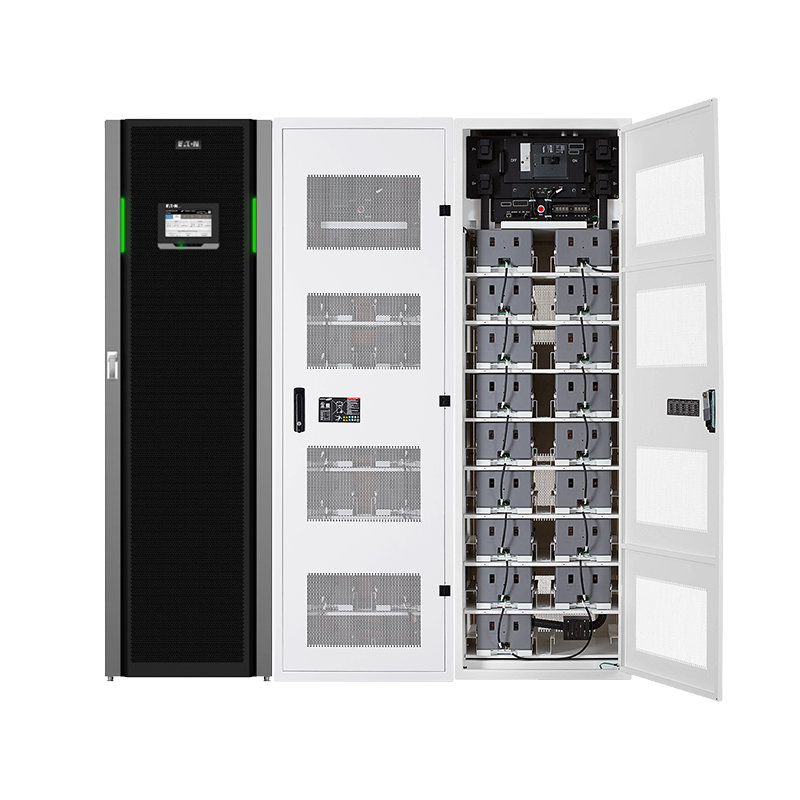

Eaton 93PM 208V 30kW UPS with Internal Batteries and Comm Cards

VENDOR: EATON Mfg Part#: 9GC206A429B02R1
1 2
Photo is for illustration purposes only. Actual product may be different.
$47,238.99
$47,238.99
Sale Sold out
MSRP: $73,182.00
Shipping calculated at checkout.
  • UPS device with 30kW power output
  • 208V input voltage requirement
  • Includes four internal battery strings for extended backup time
  • Equipped with all standard communication cards
  • TAA compliant and manufactured in the United States
  • Expandable via included empty sidecar

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers strong 30kW power capacity, ideal for protecting critical infrastructure.
  • Integrated communication cards streamline remote monitoring and network integration.
  • TAA compliance and U.S. manufacturing support use in secure and government environments.

Product Overview

Eaton 93PM 208v 30kW 4 strings internal batteries, all comm cards, empty sidecar

Specifications

Product Overview
Type Uninterruptible Power Supply (UPS)
Model Eaton 93PM 208V 30kW
Form Factor Tower with sidecar
Power Capacity 30 kW
Input Voltage 208V
Output Voltage 208V
Topology Double Conversion (Online)
Internal Batteries 4 strings included
Battery Type VRLA (Valve-Regulated Lead-Acid)
Battery Runtime (Full Load) Approximately 9 minutes
Battery Runtime (Half Load) Approximately 21 minutes
Scalability Scalable in 50 kW increments with parallel configuration
Hot-Swappable Batteries Yes
Efficiency (Double Conversion) Up to 96%
Efficiency (Energy Saver System) Up to 99%
Power Factor 0.9
Heat Dissipation 3.3 kW @ full load
Power Consumption (Full Load) Approximately 33 kVA

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 1778, CSA 22.2, CE, IEC 62040-1
RoHS Compliant Yes
REACH Compliant Yes

Advanced Security Features
User Authentication Password-protected access
Event Logging Yes
Secure Protocols HTTPS, SNMPv3
Role-Based Access Control (RBAC) Supported via software

Interfaces
Available Communication Slots All communication cards included
Network Communication Ports 1 x Gigabit Ethernet (via optional card)
Serial Ports 1 x RS-232
USB Ports 1 x USB Type B
Relay Output Contact Yes, configurable dry contacts

Physical & Environmental
Dimensions (H x W x D) 78.7 x 23.6 x 39.4 inches (2000 x 600 x 1000 mm)
Weight Approximately 1980 lbs (898 kg) with batteries
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -15°C to 60°C (5°F to 140°F)
Relative Humidity 5% to 95% non-condensing
Audible Noise <65 dB at 1 meter
Cooling Method Forced air ventilation
Installation Type Floor-Standing

Cloud Management & Licensing
Monitoring Interface Eaton Intelligent Power Manager (IPM), Eaton Visual Power Manager (VPM)
Web Management Yes, via optional network card
SNMP Support Yes
Included Management Software Intelligent Power Manager Basic Edition
Cloud Integration Yes, supports Eaton Brightlayer Data Centers
License Requirements Advanced features require IPM Silver/Gold license
