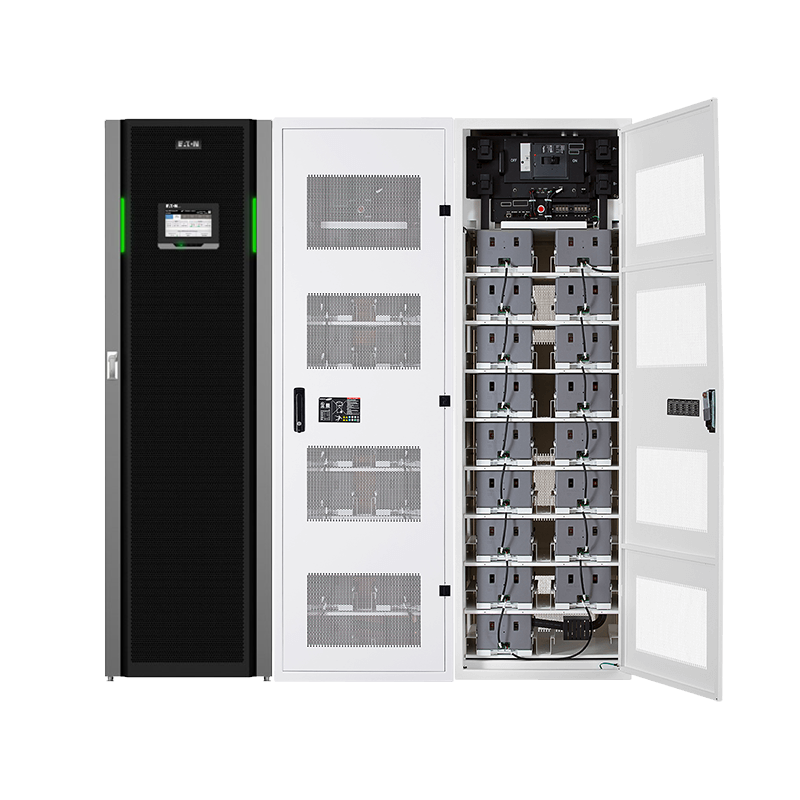

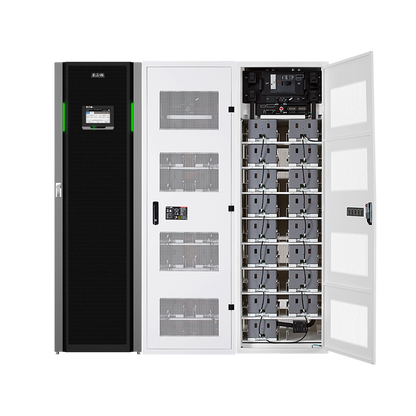

Eaton 93PM 208V 35kW N+1 UPS, No Battery, All Comms

VENDOR: EATON Mfg Part#: 9GC307A029B00R1
1 2
Photo is for illustration purposes only. Actual product may be different.
$45,302.49
$45,302.49
Sale Sold out
MSRP: $70,182.00
Shipping calculated at checkout.
  • 35kW power output at 208V for robust backup performance
  • Compatible with multiple battery technologies: VRLA, Lithium, AGM, Wet, and Gel
  • Front-service access design facilitates easy maintenance
  • 42-inch depth and 74-inch height optimized for standard-depth rack deployments
  • Includes all communication cards; empty sidecar enables expansion
  • TAA-compliant and manufactured in Finland

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Modular N+1 configuration enhances uptime and system resilience in mission-critical environments
  • Front-accessible design and rack-aligned footprint simplify deployment and service in tight spaces
  • Multi-battery compatibility allows tailored energy storage strategies to reduce total cost of ownership

Product Overview

Eaton 93PM UPS - 35KW - Maximizes deployment flexibility with thermal management options, flexible configurability and full-service access from the front, Simplifies installation by fitting perfectly in line or alongside any standard-depth rack, no batt a

Specifications

Product Overview
Product Type Uninterruptible Power Supply (UPS)
Model Eaton 93PM UPS
Power Capacity 35 kW
Power Input Voltage 208V
UPS Architecture Online Double Conversion
Redundancy N+1 Redundant
Form Factor Tower
Scalability Scalable from 20 to 200 kW with additional modules
Hot-Swappable Modules Yes
Efficiency (at 50% load) Up to 97%
Power Factor 0.99
Height 74 inches
Depth 42 inches
Weight (without battery) Approximately 1180 lbs (535 kg)
Power Consumption Configured based on load and redundancy

Wireless Features
Wireless Capabilities

Compliance & Origin
Country of Origin Finland
TAA Compliant Yes
Certifications UL 1778, cUL, IEC 62040-1, ISO 9001, ISO 14001
RoHS Compliant Yes
REACH Compliant Yes

Advanced Security Features
Secure Access Control Password-protected access, Role-based access controls
Network Security Protocols HTTPS, SNMPv3, SSH
Event Logging Syslog and local log with timestamps

Interfaces
Available Communication Slots All Communication Cards Included
Communication Interfaces USB, RS-232, Ethernet, Relay Contacts
Network Interface 10/100 MB Ethernet (SNMP/Web browser interface)
Expansion Slots 3 Communication Bays

Physical & Environmental
Height (Rack Units) Approximately 42U
Width 24 inches
Installation Type Floor-standing
Thermal Output Up to 11.9 kW
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Storage Temperature Range -25°C to +55°C (-13°F to 131°F)
Relative Humidity (Non-Condensing) 5%–95%
Audible Noise at 1 Meter <65 dB
Altitude (max operating) 1000 m without derating

Cloud Management & Licensing
Remote Management Yes, via Eaton Intelligent Power Manager (IPM)
Cloud Support Compatible with Eaton Brightlayer platform
Included Software Eaton Intelligent Power Manager (IPM) Basic license
Management Protocols SNMP, HTTP/HTTPS, Telnet, SSH
