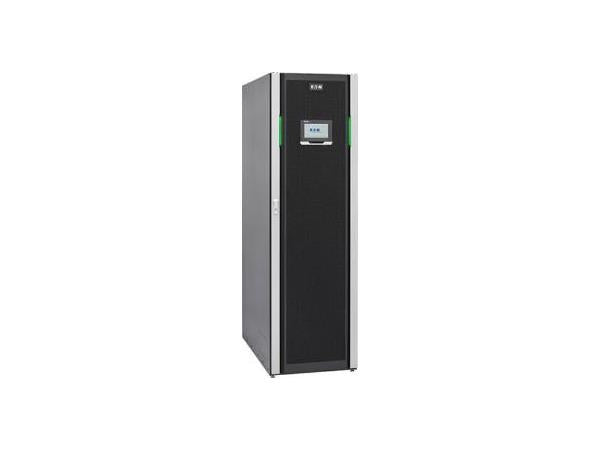

Eaton 93PM 208v 40kW N+1 UPS with 4 Battery Strings, 3 Breaker MBS

VENDOR: EATON Mfg Part#: 9GC308A405H20R1
1 2
Photo is for illustration purposes only. Actual product may be different.
$54,552.50
$54,552.50
Sale Sold out
MSRP: $84,512.00
Shipping calculated at checkout.
  • 40 kW power capacity with N+1 redundancy for uninterrupted power protection
  • 208V input voltage for compatibility with standard enterprise infrastructure
  • Four battery strings included for extended backup runtime
  • Three breaker Maintenance Bypass Switches for safe, live servicing
  • TAA compliant and made in the United States for government-ready deployments
  • Rack-mountable UPS form factor suitable for data center environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high availability with N+1 redundancy and maintenance bypass options
  • Ideal for TAA-compliant applications and government procurement due to U.S. origin
  • Integrated multi-string battery architecture supports extended operational continuity

Product Overview

Eaton 93PM 208v 40kW N+1; 4 strings batteries; 3 breaker MBS

Specifications

Product Overview
Product Type Uninterruptible Power Supply (UPS)
UPS Topology Double conversion (online)
Power Capacity 40 kW
UPS Redundancy N+1
Input Voltage 208V
Output Voltage 208V
Form Factor Tower or Modular Rack-Mountable
Battery Type VRLA (Valve Regulated Lead Acid)
Battery Strings Included 4
Maintenance Bypass Switch 3 Breaker MBS
Hot-swappable Batteries Yes
Scalability Modular and Scalable up to 200 kW
Weight Approx. 1041 lbs (472.3 kg)
Power Module Capacity 10 kW per module
Input Power Factor >0.99
Efficiency in Double Conversion Mode Up to 96.7%

Physical & Environmental
Dimensions (H x W x D) 78.74 x 23.62 x 33.46 in (2000 x 600 x 850 mm)
Operating Temperature 0° to 40°C (32° to 104°F)
Storage Temperature -25° to 55°C (-13° to 131°F)
Relative Humidity (Non-condensing) 5% to 95%
Altitude Up to 1000 m without derating
Noise Level <65 dB at 1 meter

Cloud Management & Licensing
Cloud Monitoring Eaton Intelligent Power Manager (IPM) compatible
Remote Management Interface Optional via Network-M2 card
Software Included Intelligent Power Software Suite (download)

Interfaces
Communication Ports USB, RS-232, relay contacts
Slot for Network Management Card Yes (Mini-Slot)
Web Interface Option Yes (via Network Management Card)
Input Connections Hardwired - 3 phase
Output Connections Hardwired - 3 phase
Parallel Capabilities Up to 4 units

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 1778, CSA, CE, IEC 62040-1, RoHS
Environmental Compliance RoHS, WEEE
Seismic Certification Yes (OSHPD pre-approval)

Advanced Security Features
Secure Network Management SNMPv3, HTTPS, SSH supported via Network-M2 card
User Access Control Role-based access via management interface
