Eaton 93PM 208V 40kW UPS, Tower, Double Conversion, 3-Breaker MBS

VENDOR: EATON Mfg Part#: 9GC208A029E20R1
1 3

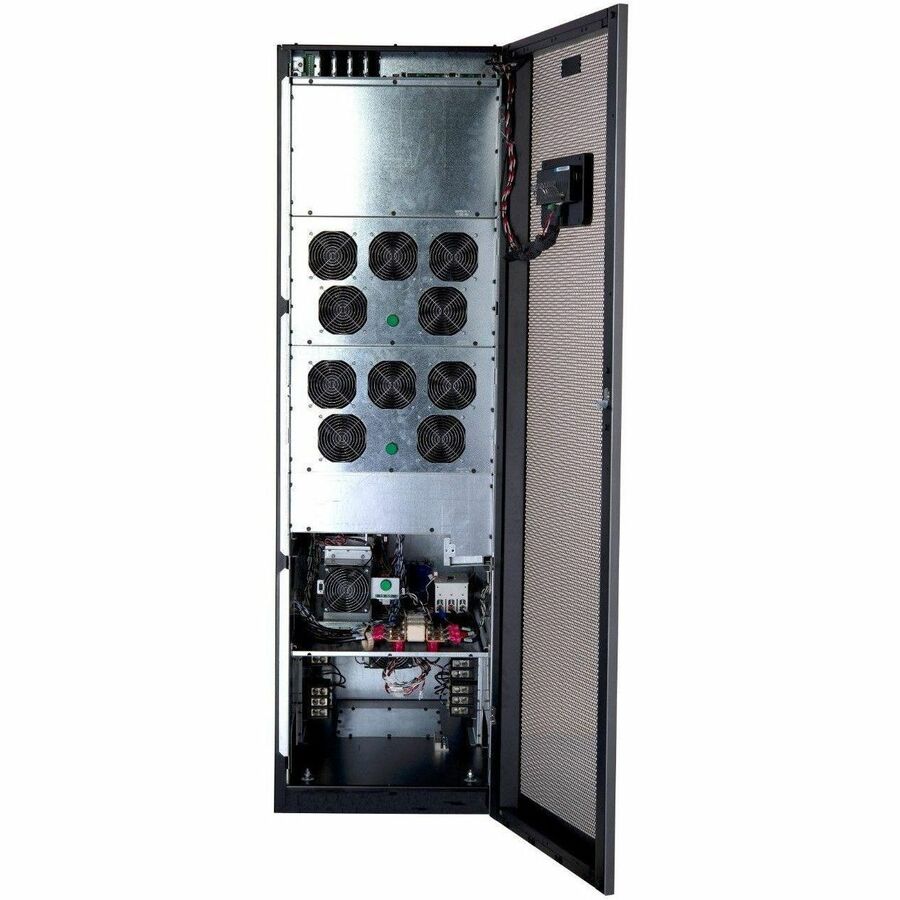

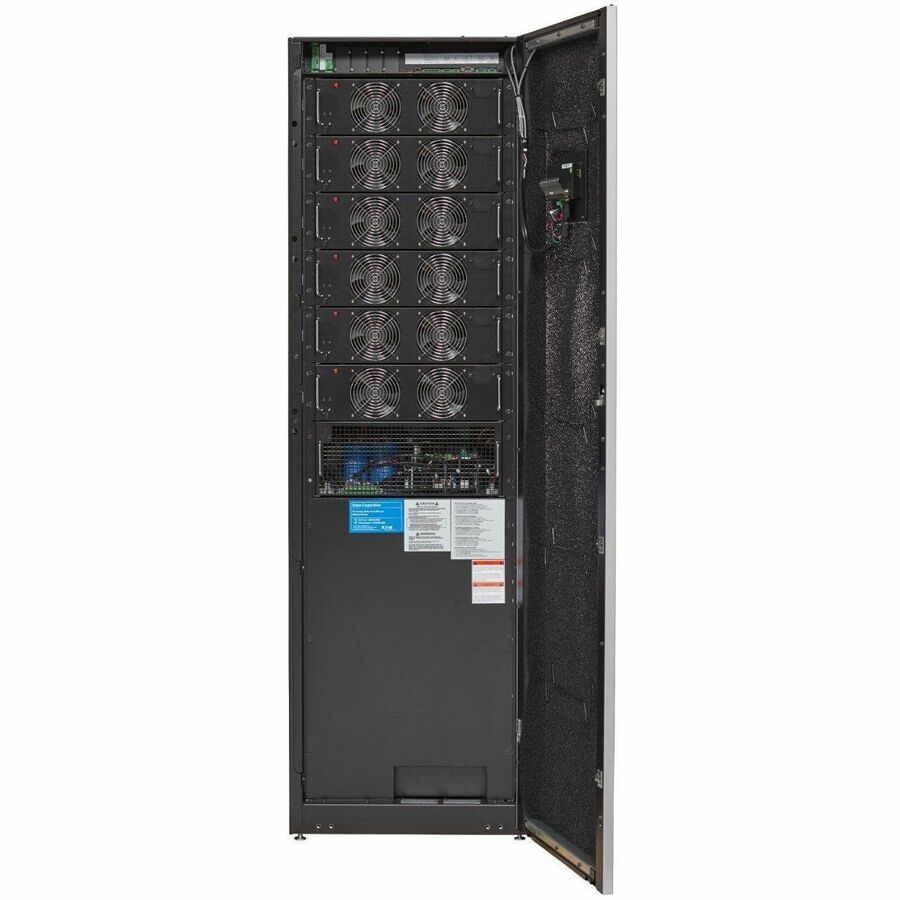

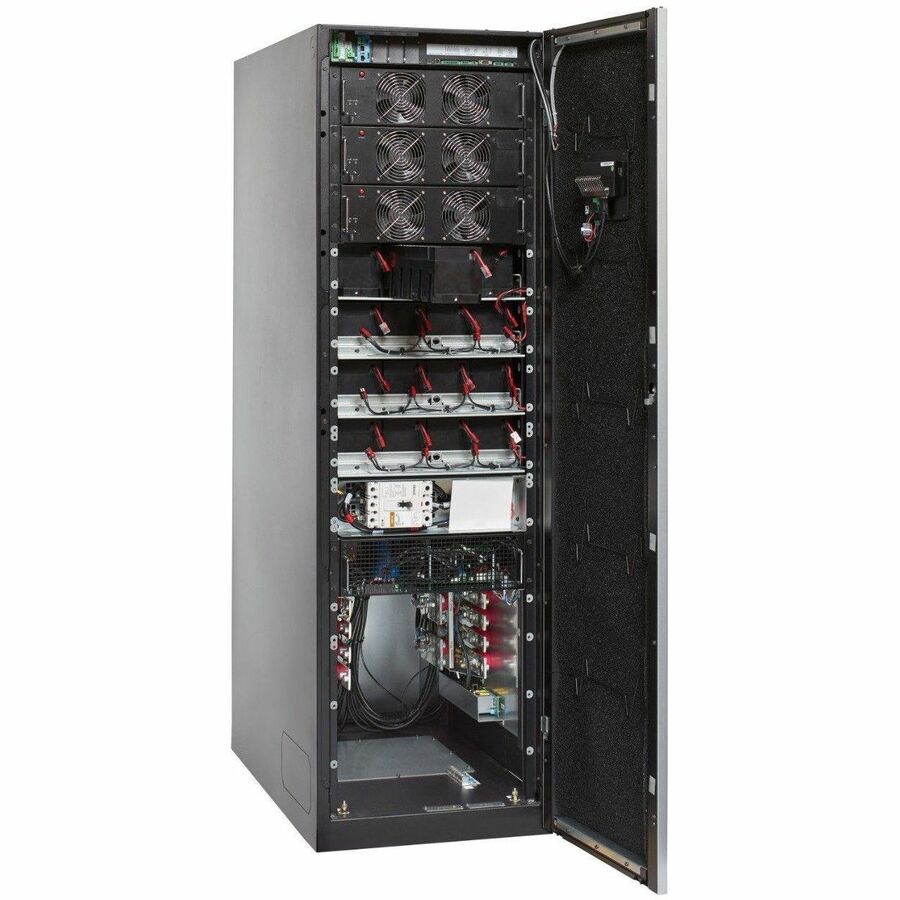

Photo is for illustration purposes only. Actual product may be different.
$45,947.99
$45,947.99
Sale Sold out
MSRP: $71,182.00
Shipping calculated at checkout.
  • 40kW capacity with 208V output for high-power IT environments
  • Double-conversion UPS technology for consistent and clean power delivery
  • Tower form factor measuring 74 inches high and 42 inches deep
  • Supports multiple battery chemistries: VRLA, lithium, AGM, wet, and gel
  • Includes integrated communication cards for remote monitoring
  • Features 3-breaker Maintenance Bypass Switch (MBS) for seamless servicing

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers robust 40kW double-conversion performance, ideal for critical infrastructure
  • Full support for diverse battery technologies provides customization and lifecycle flexibility
  • Built-in 3-breaker MBS and communication cards reduce downtime during maintenance and improve control

Product Overview

Eaton 93PM 208v 40kW all communication cards, 3 breaker MBS

Specifications

Product Overview
Product Type Uninterruptible Power Supply (UPS)
Model Eaton 93PM
Form Factor Tower
UPS Technology Double Conversion (Online)
Output Power Capacity 40 kW
Output Voltage 208V
Power Rating 40 kVA
Nominal Input Voltage 208V
Efficiency (at full load) Up to 96.7%
Power Factor Unity (1.0)
Weight 1300 lbs (approximate)
Power Requirements Three-phase AC input

Wireless Features
Wireless Connectivity

Compliance & Origin
TAA Compliant Yes
Country of Origin United States
Certifications UL 1778, cUL, FCC Part 15 Subpart B Class A
RoHS Compliant Yes
WEEE Compliance Yes

Advanced Security Features
User Authentication Role-based access control
Data Encryption HTTPS, SNMPv3, SSH
Firmware Integrity Validation Yes
Syslog Logging Support Yes

Interfaces
Available Communication Slots All communication slots included
Serial Port 1 x RS-232
USB Port 1 x USB
Network Interface Card Gigabit Network Card (optional or included)
Relay Communication Interface Yes
Modbus Support Yes (RTU and TCP/IP)

Physical & Environmental
Height 74 inches
Depth 42 inches
Width 20 inches (approximate)
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Storage Temperature Range -25°C to 55°C (-13°F to 131°F)
Relative Humidity (Non-condensing) 5% to 95%
Noise Level 65 dBA (typical at 1 meter)
Cooling Method Internal forced air with fans

Cloud Management & Licensing
Management Software Eaton Intelligent Power Manager (IPM)
Remote Management Yes, via Gigabit Network Card
SNMP Support Yes (SNMP v1/v2c/v3)
Web Interface Yes (HTML5-based)
License Included Basic (IPM Editions available separately)
