Eaton 93PM 30kW 480V UPS with MBS and 5 Battery Strings

VENDOR: EATON Mfg Part#: 9PA03D6025E20R2
1 2

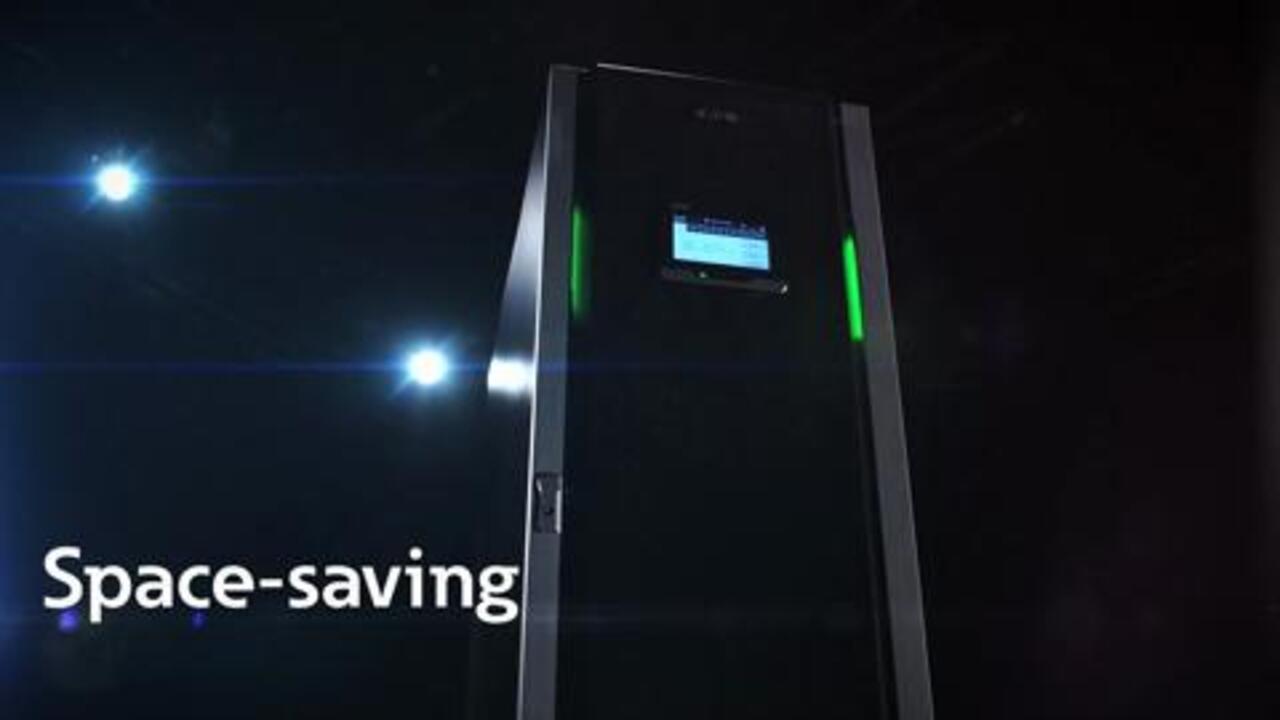

Photo is for illustration purposes only. Actual product may be different.
$48,062.00
$48,062.00
Sale Sold out
MSRP: $74,457.00
Shipping calculated at checkout.
  • 30kW double conversion UPS for clean, uninterrupted power
  • 480V input and output voltage for high-capacity deployments
  • Includes 5 battery strings compatible with VRLA and lithium technologies
  • Equipped with 3 breakers and a 35kAIC maintenance bypass switch
  • Tower form factor measuring 22" W x 42" D x 74" H
  • TAA compliant and RoHS certified; made in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides mission-critical power protection with 30kW double conversion UPS architecture
  • Flexible battery support (VRLA and lithium) and 5-string configuration ensures adaptability and longevity
  • Regulatory compliance (TAA and RoHS) along with U.S. manufacturing supports government procurement and trust

Product Overview

Eaton 93PM 480v 30kW 5 strings batt 3 breaker; 35kAIC MBS

Specifications

Product Overview
Model Eaton 93PM
Type Uninterruptible Power Supply (UPS)
Form Factor Tower
UPS Technology Double Conversion (Online)
Power Capacity (kW) 30 kW
Input Voltage 480V
Output Voltage 480V
Power Requirement 480V AC
Battery Type VRLA
Backup Time at Full Load 5–10 minutes (typical, with 5 strings)
Included Battery Strings 5
Breaker Configuration 3 Breakers
Maintenance Bypass Switch (MBS) Included - 35kAIC
Weight Approximately 1700 lbs (771 kg)

Wireless Features

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
RoHS Compliant Yes
Certifications UL 1778, CSA, IEC 62040-1
Seismic Compliance IBC 2012, OSHPD pre-approved (OSP)

Advanced Security Features
Secure Access Password protected management interface
Event Logging Yes, with timestamp and historical data
Alarm Notifications Email, SNMP traps, audible alarms
Authentication Protocols Role-based access, SNMPv3

Interfaces
Communication Interfaces USB, RS-232, Relay, Modbus, SNMP
Network Management Card Optional SNMP/Web card
Monitoring Panel Touchscreen LCD Display
External Battery Connector Yes

Physical & Environmental
Width 22 in (559 mm)
Depth 42 in (1066.8 mm)
Height 74 in (1880 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -15°C to 60°C (5°F to 140°F)
Relative Humidity 5% to 95%, non-condensing
Audible Noise <65 dBA at 1 meter
Cooling Method Forced Air Cooling
Installation Type Indoor

Cloud Management & Licensing
Remote Management Yes, via optional Eaton Intelligent Power Manager (IPM)
Cloud Monitoring Support Yes, with Eaton IPM or IPP Suite
Management Interface Web GUI, SNMP, Modbus
Licensing Model Per device (IPM licensing optional)
Firmware Upgradability Yes
