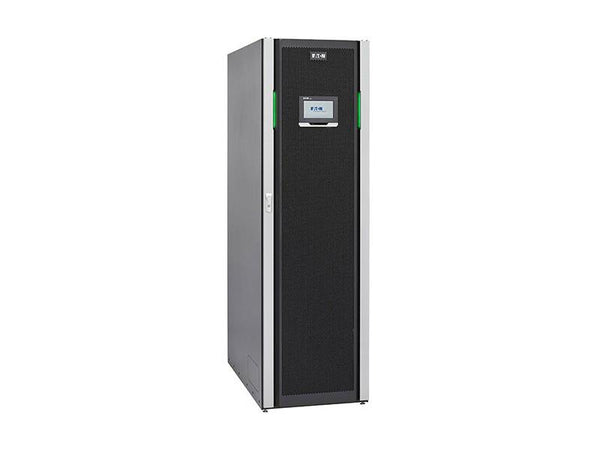

Eaton 93PM 30kW UPS, 480V Input, 208/120V Output, 3 Breaker MBS

VENDOR: EATON Mfg Part#: 9PA03N6029H20R2
1 2
Photo is for illustration purposes only. Actual product may be different.
$48,775.27
$48,775.27
Sale Sold out
MSRP: $75,562.00
Shipping calculated at checkout.
  • Double-conversion UPS topology for continuous clean power
  • 208/120V output with 480V input suitable for North American deployments
  • Tower form factor with a compact 22"W x 42"D x 74"H footprint
  • Includes 5 battery strings supporting Lithium and VRLA types
  • Three-breaker maintenance bypass system for seamless servicing
  • TAA compliant and RoHS certified, manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Provides uninterrupted double-conversion power at 30kW rating for critical applications
  • Three-breaker maintenance bypass allows service without power disruption
  • TAA compliance and U.S. manufacturing support government procurement and regulatory mandates

Product Overview

Eaton 93PM 480v, 208/120v 30kW, 5 strings batt; 3 breaker MBS

Specifications

Product Overview
Model Eaton 93PM
Type Uninterruptible Power Supply (UPS)
Form Factor Tower
Nominal Power Output 30 kW
UPS Technology Double Conversion (Online)
Power Input Voltage 480V
Power Output Voltage 208/120V
Phase Three Phase
Number of Battery Strings 5
Maintenance Bypass Switch 3 Breaker MBS
Battery Type Supported VRLA, Lithium-ion
Hot-Swappable Batteries Yes
User Interface 7-inch color touchscreen LCD
Efficiency at Full Load Up to 97%
Efficiency in Energy Saver Mode Up to 99%
Scalability Modular and scalable from 30 kW to 200 kW
Redundancy N+1 Redundancy
Weight 1,300 lbs (approximate, depending on configuration)
Power Factor 0.99 (input), 1.0 (output)

Physical & Environmental
Width 22 inches
Depth 42 inches
Height 74 inches
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Operating Altitude Up to 1,000 meters without derating
Storage Temperature Range -15°C to 60°C (5°F to 140°F)
Relative Humidity 5% to 95% non-condensing
Noise Level Less than 65 dBA at 1 meter

Cloud Management & Licensing
Cloud Management Platform Eaton Intelligent Power Manager (IPM)
Compatibility with Virtualization Platforms VMware, Citrix, Microsoft Hyper-V
Network Monitoring Support SNMP v1, v2c, v3
License Requirement for Cloud Features IPM licenses sold separately

Interfaces
Communication Ports RS-232, USB, Ethernet
Network Management Card Slot Yes (Mini-slot for optional SNMP/Modbus)
External Battery Connector Yes
Relay Output Contacts Yes
Remote Emergency Power Off (REPO) Yes

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
RoHS Compliance Yes
Certifications UL 1778, CSA C22.2 No. 107.3, FCC Part 15 Subpart B Class A

Advanced Security Features
User Access Control Password protected access
Network Security Protocols HTTPS, SSH, SNMPv3
Event Logging and Notifications Yes, configurable alerts
