Eaton 93PM 480V 200kW UPS with All Communication Cards

VENDOR: EATON Mfg Part#: 9P220D0029A00R2
1 2

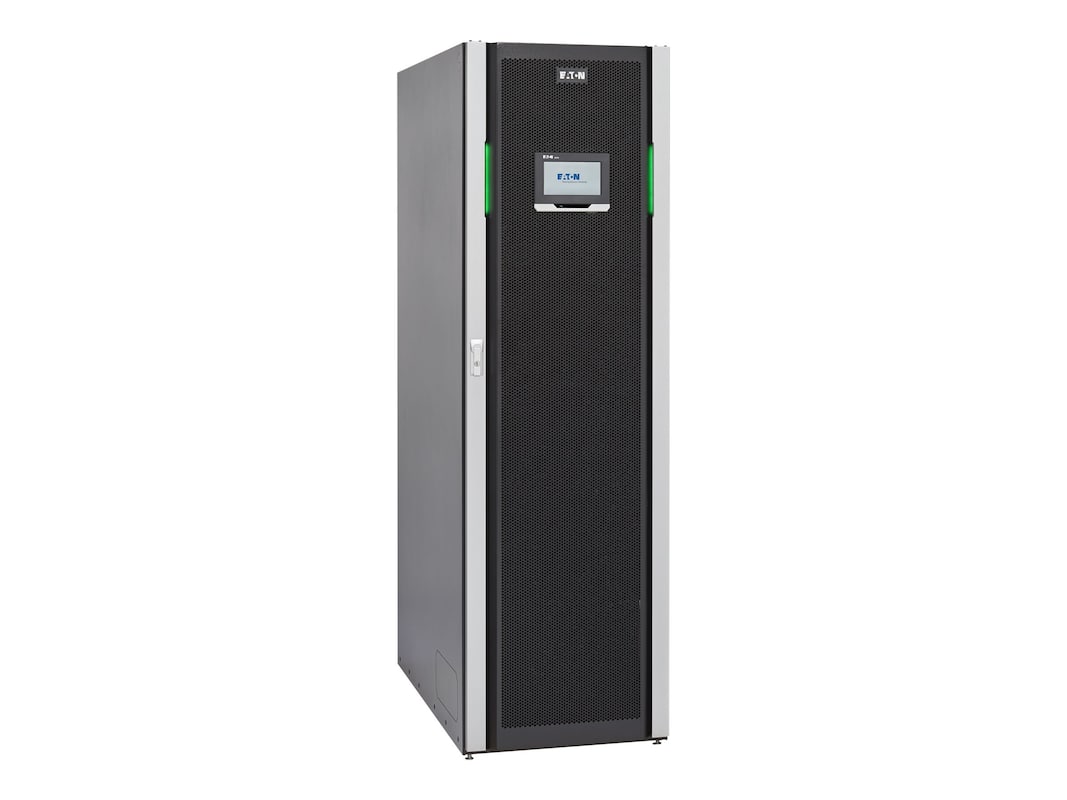

Photo is for illustration purposes only. Actual product may be different.
$94,747.78
$94,747.78
Sale Sold out
MSRP: $146,782.00
Shipping calculated at checkout.
  • Three-phase 480V tower UPS delivering 200kW of power
  • Supports multiple battery types: VRLA, lithium-ion, AGM, gel, and wet
  • TAA compliant and manufactured in the United States
  • Comes with all communication cards for advanced monitoring
  • Compact dimensions: 42-inch depth and 74-inch height

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Adaptability to various battery chemistries ensures long-term flexibility and futureproofing.
  • All communication cards included for full network integration and real-time power management.
  • TAA compliance and U.S. manufacturing provide assurance for government and enterprise buyers.

Product Overview

Eaton 93PM 480v 200kW all comm cards - The Eaton 93PM UPS is the perfect three-phase white or gray space solution for modern data centers. The 93PM is compatible with lithium-ion UPS batteries, which are 40 percent smaller than VRLA batteries and have twice the lifespan, saving money on battery replacement costs and extra square footage for battery cabinets.

Specifications

Product Overview
Product Type Uninterruptible Power Supply (UPS)
Model Eaton 93PM
Form Factor Tower
Output Power Capacity 200 kW
Input Voltage 480V
Output Voltage 480V
Power Capacity 200 kW / 250 kVA
Operating Frequency 50/60 Hz (auto-sensing)
Efficiency Rating Up to 97% (in double conversion), 99% (in Energy Saver System mode)
Technology Double-conversion online
Lithium-Ion Battery Compatibility Yes
Redundancy N+1 scalable
Scalability Yes, vertically scalable up to 1.2 MW
System Bypass Internal static & maintenance bypass
Type of Batteries Supported VRLA, Lithium-ion, AGM, Gel, Wet

Physical & Environmental
Height 74 in (1880 mm)
Depth 42 in (1067 mm)
Width 23.6 in (600 mm)
Unit Weight Estimated ~2000 lbs (varies by configuration)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Relative Humidity 0% to 95% non-condensing
Acoustic Noise Level ≤ 65 dBA at 1 meter

Cloud Management & Licensing
Management Software Eaton Intelligent Power Manager (IPM)
Cloud Interface Yes, with IPM or Eaton Brightlayer
Remote Monitoring Supported via IPM & SNMP
Licenses Included IPM Basic license included

Interfaces
Network Management Card Included
Serial Ports 1 x RS-232
USB Ports 1 x USB
Modbus TCP Supported
Modbus RTU Supported
Dry Contact I/O Yes
SNMP Support Supported (SNMP v1, v2, v3)
Environmental Monitoring Ports Yes, via optional sensors
Web Interface Yes, via Eaton Intelligent Power Manager

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 1778, cUL, IEC 62040-1, RoHS, ENERGY STAR® qualified
Environmental Compliance RoHS, WEEE

Advanced Security Features
Network Security Protocols HTTPS, SNMPv3, SSH, RADIUS
User Access Control Role-based access management
Data Encryption AES 256-bit (for network communications via SNMP v3 or HTTPS)
