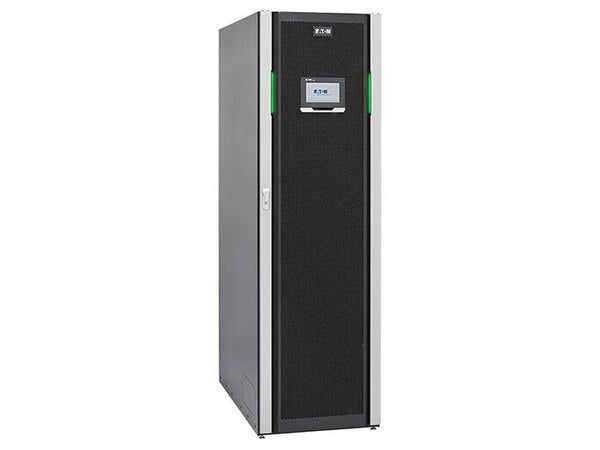

Eaton 93PM 480V 50KW UPS with INDGW-X2 Card and Top Exhaust

VENDOR: EATON Mfg Part#: 9PA05D4005A00R2
1 2
Photo is for illustration purposes only. Actual product may be different.
$42,800.52
$42,800.52
Sale Sold out
MSRP: $66,306.00
Shipping calculated at checkout.
  • - 50 kW uninterruptible power supply with 480V output
  • - Supports both VRLA and Lithium battery chemistries
  • - Tower form factor with top exhaust airflow design
  • - Integrated INDGW-X2 communication card for network monitoring
  • - TAA compliance for government procurement
  • - Dimensions: 74" height, 42" depth

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • - High-capacity 50 kW power output supports mission-critical applications demanding continuous uptime
  • - Dual battery type support (VRLA and Lithium) offers operational flexibility and extended runtime planning
  • - Integrated INDGW-X2 card ensures seamless network monitoring and management for IT infrastructure

Product Overview

Eaton 93PM 480V 50KW 4 STRINGS BATT, INDGW-X2 CARD, TOP EXHAUST

Specifications

Product Overview
Product Type Uninterruptible Power Supply (UPS)
Model Eaton 93PM UPS
Form Factor Tower
Power Capacity 50 kW
Output Voltage 480V
Input Voltage 480V
Power Input Type Hardwired 3-phase
Battery Configuration 4 Strings
Battery Type VRLA or Lithium-ion (varies by configuration)
Internal Batteries Included Yes
Hot-Swappable Batteries Yes
Power Module Redundancy N+1 Redundant
Bypass Type Internal Static and Maintenance Bypass

Wireless Features
Wireless Capability No

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 1778, CE, IEC 62040-1, RoHS Compliant
Safety Standard IEC 62040-1
EMC Compliance IEC 62040-2 Category C3

Advanced Security Features
Network Security Features User authentication, Role-based access, HTTPS support
Data Encryption Support HTTPS, SNMPv3
Event Logging Yes, via web interface and SNMP traps
Configurable Alarms Yes

Interfaces
Communication Interface INDGW-X2 (Industrial Gateway-X2)
Monitoring Ports RS-232, USB, Ethernet
Available Slots 2 x Communication Bays
Optional Interface Cards Modbus, BACnet, SNMP/Web Cards

Physical & Environmental
Height 74 in
Depth 42 in
Width 24 in
Weight Approximately 2100 lbs (varies by configuration)
Cooling Top Exhaust Airflow
Ambient Operating Temperature 0°C to 40°C (32°F to 104°F)
Relative Humidity 0% to 95% non-condensing
Noise Level Less than 72 dBA at 1 meter
Installation Location Indoor (Data Center, Industrial, Commercial)

Cloud Management & Licensing
Cloud Management Compatibility Eaton Intelligent Power Manager (IPM) Compatible
Remote Management Yes, via Web/SNMP
License Type Requires IPM license for advanced features
Monitoring Support Environmental and Power Monitoring via IPM
Integration Supports VMware, Citrix, Microsoft Hyper-V environments
