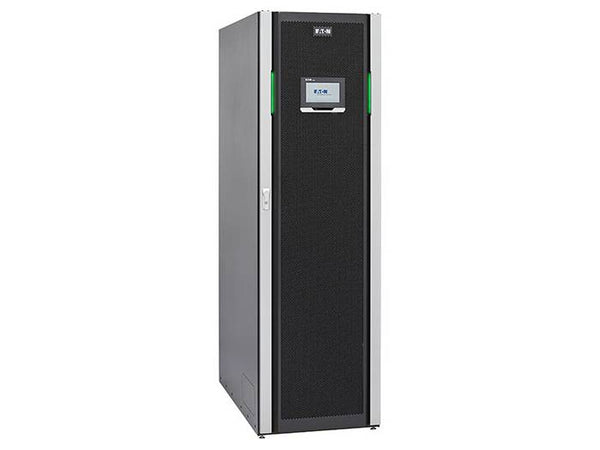

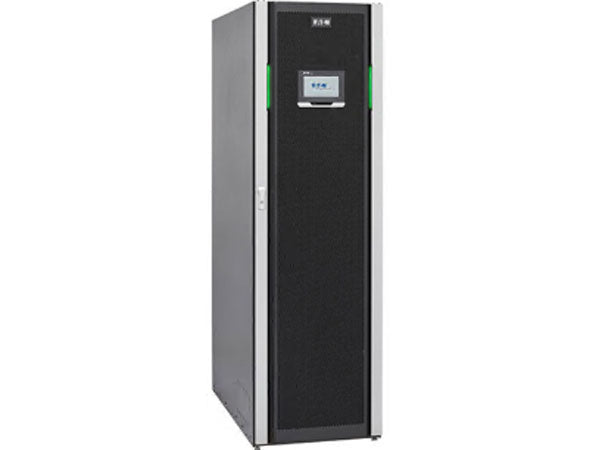

Eaton 93PM 480V 80kW N+1 UPS with 3 Breaker MBS and 65kAIC

VENDOR: EATON Mfg Part#: 9PH08D0029E40R2
1 3
Photo is for illustration purposes only. Actual product may be different.
$64,280.18
$64,280.18
Sale Sold out
MSRP: $99,582.00
Shipping calculated at checkout.
  • - 80 kW UPS with N+1 redundancy for enhanced fault tolerance
  • - High interrupting capacity rated at 65kAIC
  • - Includes all communication cards for remote system integration
  • - Integrated 3-breaker Maintenance Bypass Switch for service continuity
  • - TAA-compliant and manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers ultra-reliable power continuity with N+1 redundancy and 65kAIC protection, minimizing downtime risk.
  • Fully equipped with communication cards and bypass switch for seamless integration and maintenance.
  • TAA compliance and U.S. assembly make it ideal for government and high-security applications.

Product Overview

Eaton 93PM 480v 80kW N+1; all comm cards, 3 breaker MBS, 65kAIC

Specifications

Product Overview
Product Type Uninterruptible Power Supply (UPS)
Model 9PH08D0029E40R2
Form Factor Tower
Power Capacity (Watts) 80 kW
Power Capacity (VA) 480 VA
Redundancy N+1
Breaker Type 3 Breaker Maintenance Bypass Switch (MBS)
Maximum Fault Current Rating 65 kAIC
Topology Double Conversion (Online)
Efficiency in Double Conversion Mode >= 96%
Efficiency in Energy Saver System >= 99%
Power Module Scalability Yes (Scalable Modular Design)
Input Voltage 480V
Output Voltage 480V
Voltage Regulation +/-1%
Load Segments Configurable Output Segments

Physical & Environmental
Dimensions (H x W x D) 78.6 x 23.6 x 39.4 in (1997 x 600 x 1000 mm)
Weight 1600 lbs (726 kg) approx.
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Operating Humidity Range 0% to 95% non-condensing
Maximum Altitude (Operating) Up to 1000 m without derating
Audible Noise at 1m (full load) < 65 dB
Cooling Method Internal fans with front-to-top airflow

Cloud Management & Licensing
Cloud Management Compatible with Eaton Intelligence Platform
Network Management Intelligent Power Manager (IPM) compatible
Licensing No license required for local monitoring; optional for advanced IPM features

Interfaces
Communication Slot Type Mini-Slot for optional communication cards
Included Communication Cards All communication cards included
Remote Monitoring Yes
SNMP Support Yes (via optional SNMP/Web card)
Serial Interface Yes (RS-232)
USB Interface Yes
Dry Contact Inputs/Outputs Yes

Compliance & Origin
Country of Origin UNITED STATES
TAA Compliant Yes
Certifications UL 1778, cUL, CE, RoHS
Safety Standards EN 62040-1, IEC 60950-1
EMC Standards EN 62040-2

Advanced Security Features
Password Protection Yes
Role-Based Access Control Yes (via network module or IPM)
SNMPv3 Support Yes
Event Logging Yes
Syslog Support Yes
