Products Memory, Storage and Components Eaton 93PM 50KW UPS, 480V I...

Eaton 93PM 50KW UPS, 480V In / 208-120V Out, 3 Breaker MBS, 65KAIC

VENDOR: EATON Mfg Part#: 9PA05N0009E40R2
1 5

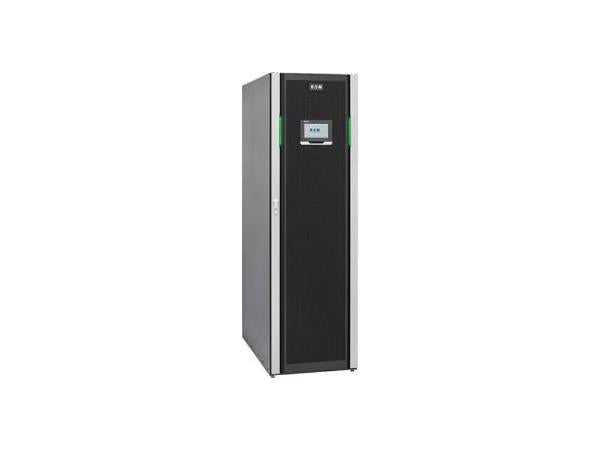

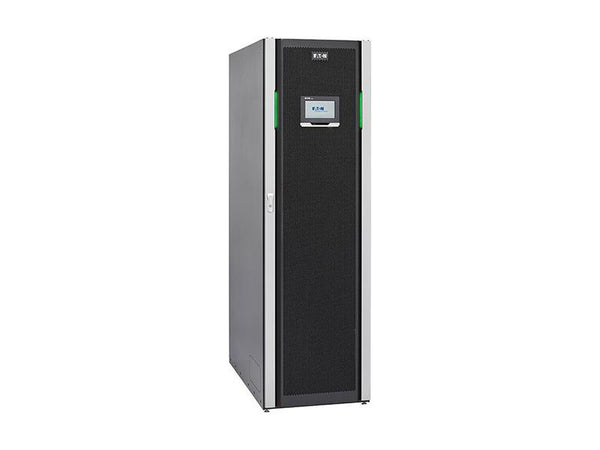

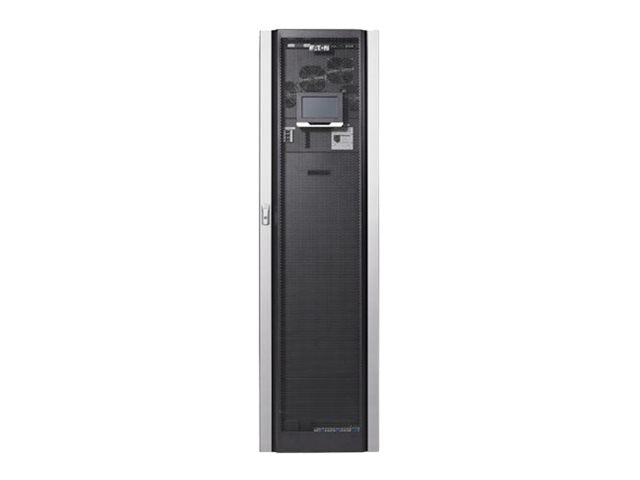

Photo is for illustration purposes only. Actual product may be different.
$43,078.74
$43,078.74
Sale Sold out
MSRP: $66,737.00
Shipping calculated at checkout.
  • 480V input and 208/120V output configuration
  • 50 KW power capacity in a tower form factor
  • Supports both VRLA and Lithium battery types
  • Includes all essential communication cards for remote monitoring
  • 3 Breaker MBS left-mount design for service continuity
  • 65KAIC fault tolerance rating for high-current protection

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Provides robust and reliable 50KW power backup for critical infrastructure with high input/output flexibility.
  • All-in-one unit with communication interfaces and dual battery compatibility simplifies installation and management.
  • TAA-compliant and made in the USA, supporting secure procurement for government and regulated industries.

Product Overview

Eaton 93PM 480V IN, 208/120V OUT 50KW ALL COMMUNICATION CARDS, 3 BREAKER MBS LEFT MOUNT, 65KAIC

Specifications

Product Overview
Product Type Three-phase UPS
Model Eaton 93PM UPS
Form Factor Tower
Power Capacity 50 kW / 50 kVA
Input Voltage 480V
Output Voltage 208/120V
Input Phase Three Phase
Output Phase Three Phase with Neutral
Efficiency Up to 97%
Redundancy N+1 scalable
Power Factor 0.99
Bypass Type 3 Breaker Maintenance Bypass Switch (MBS)
Weight Approx. 1115 lbs (506 kg)
Battery Type VRLA or Lithium-ion (option-dependent)
Internal Batteries External battery cabinet required
Power Module Type Hot-swappable

Physical & Environmental
Height 74 in (1880 mm)
Width 20 in (500 mm)
Depth 42 in (1060 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Relative Humidity 0%–95% non-condensing
Acoustic Noise Less than 65 dBA at 1 meter
Cooling Method Forced air
Installation Location Indoor

Cloud Management & Licensing
Management Interface Web interface, SNMP, optional Eaton Intelligent Power Manager (IPM)
Remote Monitoring Yes, via Network-M2 card
Software Compatibility Eaton IPM, VMware vCenter, Microsoft SCVMM, Citrix XenCenter

Interfaces
Communication Slots 2 communication bays
Serial Port 1 x RS-232
USB Port 1 x USB Type B
Network Interface 1 x Gigabit Ethernet (option with Network-M2 card)
Relay Contacts Included (building alarms/status)

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 1778, cUL, FCC Part 15 Subpart B Class A, RoHS
Seismic Rating IBC 2012 compliant
Environmental Regulations RoHS, REACH

Advanced Security Features
User Authentication Role-based access control (RBAC)
Network Security TLS 1.2, SNMPv3, IPv6 supported
Cybersecurity Compliance UL 2900-1 (with Network-M2 card)
