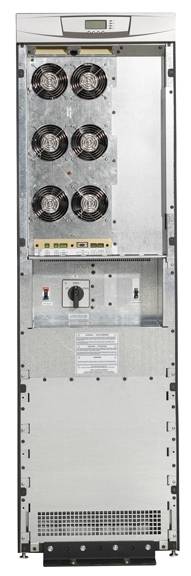

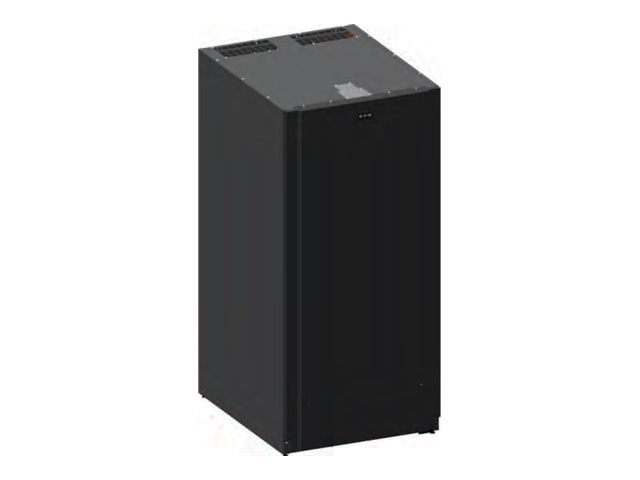

Eaton 93PM Battery Cabinet, IBC-LW 480VDC

VENDOR: EATON Mfg Part#: 9PZTDBE39020000
1 4
Photo is for illustration purposes only. Actual product may be different.
$58,805.06
$58,805.06
Sale Sold out
MSRP: $91,100.00
Shipping calculated at checkout.
  • 480VDC output for industrial-grade power delivery
  • Supports 480/277V 4-wire input
  • Integrated surge suppression for equipment protection
  • Tower form factor with 74" height and 42" depth
  • TAA compliant for government and institutional use
  • Manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-capacity 480VDC power output, ideal for enterprise-critical infrastructure.
  • TAA compliance ensures easy integration into government and regulatory-sensitive environments.
  • Integrated surge suppression enhances system reliability and protects connected equipment.

Product Overview

The Eaton 93PM Battery Cabinet, IBC-LW 480VDC is a high-performance UPS solution offering 480VDC output for critical infrastructure support. Designed in a tower form factor, it stands 74 inches tall with a depth of 42 inches, ensuring space-efficient deployment. This cabinet features surge suppression for enhanced protection and is TAA compliant, making it suitable for federal and enterprise-level applications. Manufactured in the United States, it supports quality and compliance standards for sensitive power environments.

Specifications

Product Overview
Manufacturer Eaton
Product Name Eaton 93PM Battery Cabinet, IBC-LW 480VDC
Model Eaton 93PM
Manufacturer Part Number 9PZTDBE39020000
Product Type UPS Battery Cabinet
UPS Type Battery Cabinet for Double Conversion UPS
Voltage Output 480VDC
Input Voltage Required 480/277V 4-wire
Surge Suppression Included
Form Factor Tower
Weight (Shipping) Approximately 1,980 lbs
Power Capacity (kW) Up to 200 kW (cabinet-dependent)
Battery Type VRLA (Valve-Regulated Lead-Acid)
Runtime Scalable Yes
Expandable Supports additional battery cabinets

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 1778, cUL, CE, RoHS
Environmental Compliance RoHS Compliant

Advanced Security Features
Tamper Detection Cabinet lockable for physical security
Access Control Physical access limited via keyed locking system

Interfaces
Power Connector Type Hardwired
Communication Interface To be integrated into 93PM UPS system
Monitoring Interface Optional via UPS control panel or external monitoring

Physical & Environmental
Height 74 in
Depth 42 in
Width 24 in
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Storage Temperature -15°C to 60°C (5°F to 140°F)
Operating Relative Humidity 0% to 95% non-condensing
Altitude (Max Operating) Up to 1,000 m (3,280 ft) without derating
Cooling Method Natural air convection / integrated fans
Sound Level Less than 62 dBA at 1 meter

Cloud Management & Licensing
Remote Monitoring Capability Available via Eaton Intelligent Power Manager (optional)
Management Software Compatible with Eaton Intelligent Power Manager (IPM)
License Included No (IPM licensing sold separately)
Cloud Ready Yes (via IPM or additional hardware)
