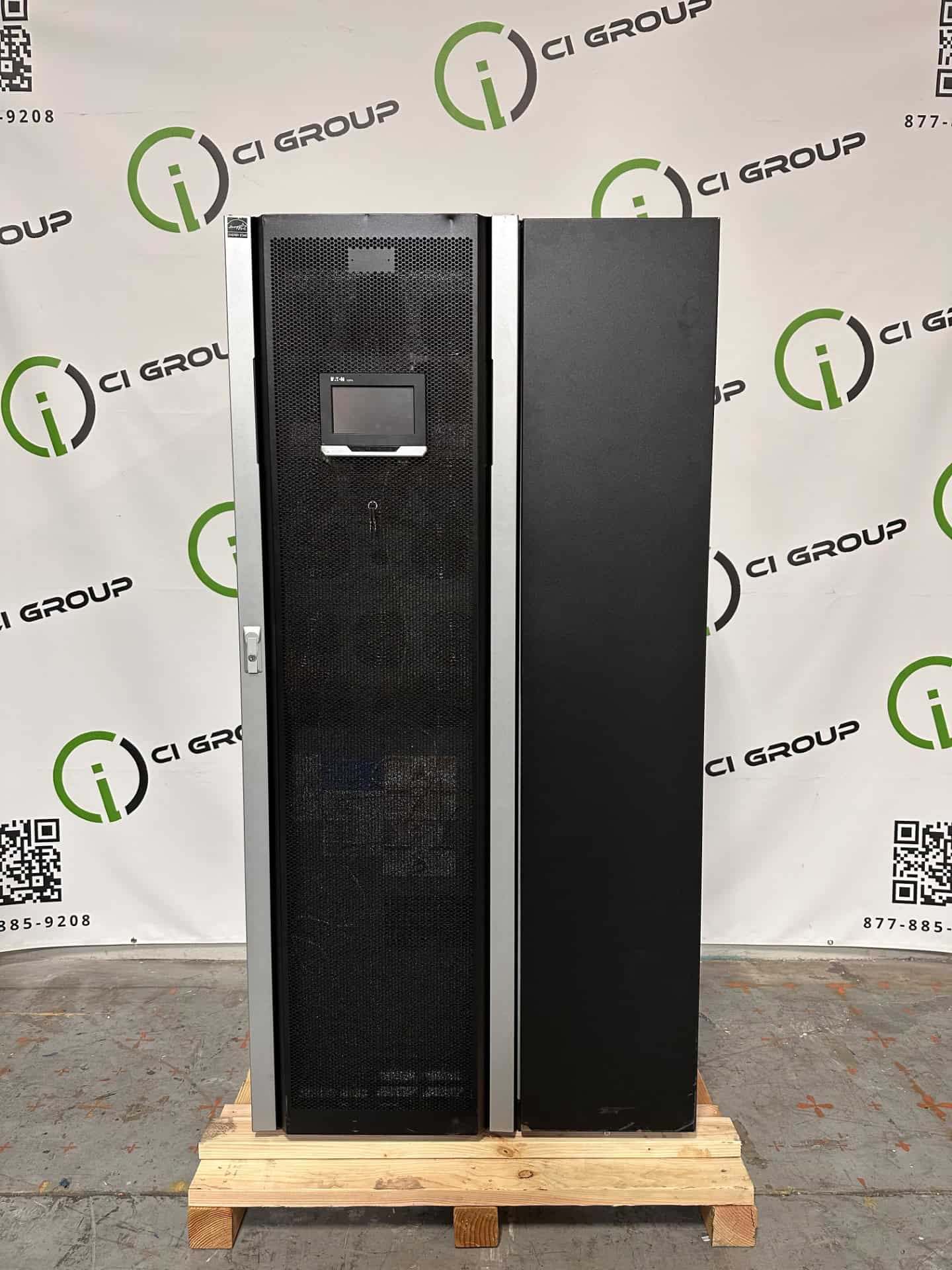

Eaton 93PM IAC-D 50KW 480/208V 225A Top Panel Board Power Unit

VENDOR: EATON Mfg Part#: 9PZD2SB40000001
1 4
Photo is for illustration purposes only. Actual product may be different.
$15,233.80
$15,233.80
Sale Sold out
MSRP: $23,600.00
Shipping calculated at checkout.
  • 50KW capacity power distribution unit
  • 480/208V Delta/Wye power configuration
  • 225A top panel board with 1 subfeed breaker
  • Includes 2 field provisions for customization
  • Top air exhaust for efficient thermal dissipation
  • TAA compliant and made in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for scalability and field customization with two expansion provisions.
  • Compliant with TAA standards and manufactured in the USA, ideal for government applications.
  • Top air exhaust feature promotes thermal efficiency in space-constrained environments.

Product Overview

Eaton 93PM IAC-D 50KW, K13, NON TP1, 480/208 DELTA/WYE, 225A TOP PANEL BOARD, 1 SUBFEED BREAKER + 2 FIELD PROVISIONS, TOP AIR EXHAUST

Specifications

Product Overview
Product Type Integrated Power Module
Model 93PM IAC-D 50KW
Power Capacity 50 kW
Power Distribution 480V/208V Delta/Wye
Form Factor Floor Standing
Input Voltage 480 V
Output Voltage 208 V
Maximum Output Current 225 A
Output Frequency 60 Hz
Cooling Method Forced Air - Top Exhaust
Load Type K13 Non-linear Load
TP1 Transformer Compliance Non-TP1

Physical & Environmental
Operating Temperature 0°C to 40°C
Storage Temperature -25°C to 55°C
Relative Humidity (Operating) 5% to 95%, non-condensing
Altitude (Max Operating) 1000 m (without derating)
Cooling Direction Top-air exhaust
Ventilation Front and Top
Acoustic Noise Level Less than 65 dBA

Cloud Management & Licensing
Cloud Monitoring Support Eaton Intelligent Power Manager (IPM) Compatible
On-Premise Management Eaton Power Xpert Software Supported
Remote Management Capabilities Available via IP-enabled monitoring devices

Interfaces
Subfeed Breakers Included 1 Pre-installed
Field Provision Slots 2 Available
Panel Board Type Top Panel Board
Transformer Type Isolation Transformer

Compliance & Origin
Country of Origin UNITED STATES
TAA Compliant Yes
Certifications UL 891, CSA C22.2 No. 244
RoHS Compliance Yes
Environmental Compliance Yes

Advanced Security Features
Breaker Lockout/Tagout Capabilities Yes
Surge Protection Optional SPD Modules Available
Ground Fault Protection Breaker Level Protection Supported
Tamper Resistance Lockable Cabinet Doors
Access Control Key-lock and electronic module options
