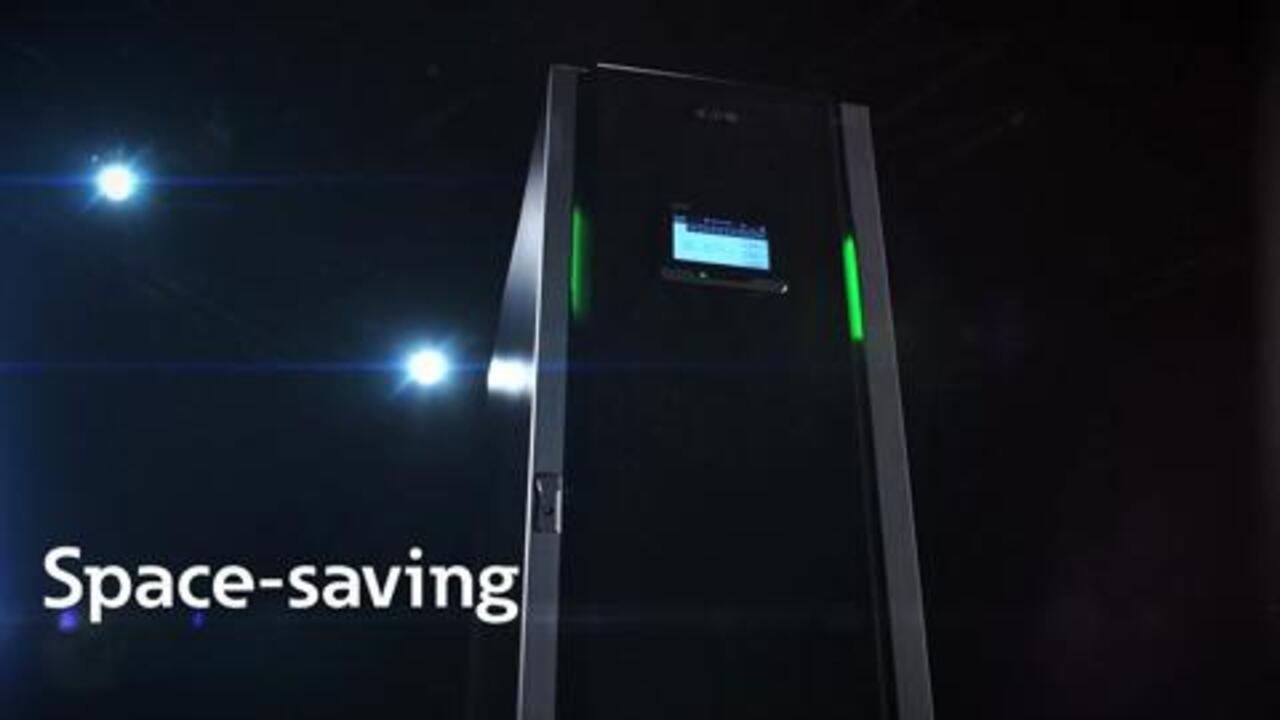

Eaton 93PM UPS 208V 25kW N+1 No Battery All Communications

VENDOR: EATON Mfg Part#: 9GC305A029B00R1
1 2
Photo is for illustration purposes only. Actual product may be different.
$42,914.14
$42,914.14
Sale Sold out
MSRP: $66,482.00
Shipping calculated at checkout.
  • 208V input voltage and 25kW scalable output power
  • Compatible with multiple battery types including VRLA, Lithium, AGM, Wet, and Gel
  • N+1 redundancy support for improved uptime and fault tolerance
  • Designed for front-access service and standard-depth rack integration
  • Includes communication card support and empty sidecar for expansion
  • TAA-compliant and made in Finland for high-assurance applications

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports multiple battery technologies and configurations, enabling flexible deployment and future scalability.
  • Front-access design and standard rack-depth compatibility simplify installation and reduce service time.
  • TAA compliance and Finnish manufacturing make it ideal for regulated or government environments.

Product Overview

Eaton 93PM UPS - 25KW - Maximizes deployment flexibility with thermal management options, flexible configurability and full-service access from the front, Simplifies installation by fitting perfectly in line or alongside any standard-depth rack, no batt a

Specifications

Product Overview
Type Three-phase Uninterruptible Power Supply (UPS)
Model Eaton 93PM UPS
Manufacturer Part Number 9GC305A029B00R1
Form Factor Tower
Power Capacity 25 kW
Voltage Required 208V
Input Voltage Range 176–276V
Output Voltage 208/120V
Output Power Factor 1.0
Power Efficiency Up to 97%
Number of Phases Three-phase
Configuration N+1 Redundant
Scalability Modular and scalable

Wireless Features
Wi-Fi Connectivity

Compliance & Origin
Country of Origin Finland
TAA Compliant Yes
Certifications UL 1778, CE, cUL, IEC 62040-2, IEC 62040-1
RoHS Compliant Yes
WEEE Compliant Yes

Advanced Security Features
Secure Boot Yes, with Network-M2 Card
Encryption Support TLS/SSL encryption on SNMP/web management interface
Role-Based User Access Supported via management interface

Interfaces
Network Interface 1 x Gigabit Ethernet (Optional Network-M2 card)
Serial Ports 1 x RS-232
USB Ports 1 x USB Type B (for configuration)
Expansion Slots for Communication Cards Yes (supports SNMP/Web, Modbus, Relay cards, Industrial Gateway)

Physical & Environmental
Height 74 inches (1880 mm)
Width 20 inches (500 mm)
Depth 42 inches (1070 mm)
Weight (without batteries) 748 lbs (340 kg)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -25°C to 55°C (-13°F to 131°F)
Relative Humidity 0% to 95% non-condensing
Noise Level < 65 dB
Cooling Method Forced air, front-to-top airflow
Installation Type Fits standard-depth IT racks

Cloud Management & Licensing
Management Interface LCD touchscreen display (front-accessible)
Remote Management Supported via optional Eaton Network-M2 Card
Monitoring Software Support Compatible with Eaton Intelligent Power Manager (IPM)
Cloud Integration Supported with Eaton Brightlayer Data Centers suite
Licensing Requirements Optional for advanced software functionality
