Eaton 93PM UPS 30KW, 480V Input, 208/120V Output, Tower Form Factor

VENDOR: EATON Mfg Part#: 9PA03N2007H20R2
1 2

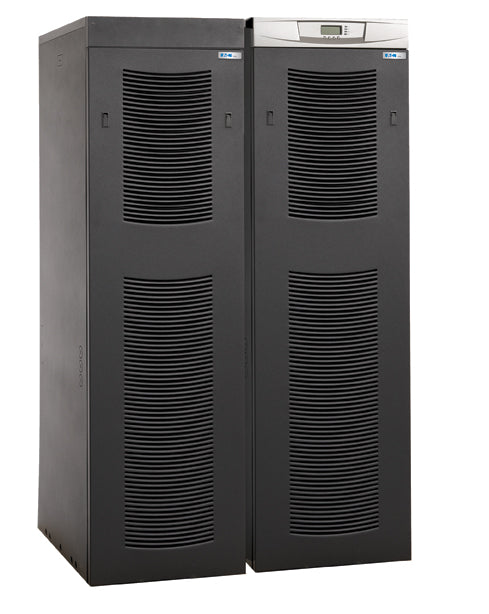

Photo is for illustration purposes only. Actual product may be different.
$43,770.07
$43,770.07
Sale Sold out
MSRP: $67,808.00
Shipping calculated at checkout.
  • 30KW power capacity for reliable power protection
  • Supports 480V input and 208/120V output for versatile deployment
  • Includes three battery strings with VRLA and lithium chemistry for flexible runtime
  • Integrated IDGW-X2 card enables remote monitoring and intelligent power management
  • Three circuit breakers with 35KAIC rating for safe operational continuity
  • Tower form factor design ideal for standalone installations

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-capacity 30KW uninterruptible power, optimal for data centers and mission-critical infrastructure
  • Includes both VRLA and lithium batteries across three battery strings, offering flexible redundancy and improved lifecycle performance
  • Integrated remote monitoring and high-rated circuit protection ensure operational control and safety in demanding power environments

Product Overview

Eaton 93PM 480V, 208/120V 30KW; 3 STRINGS BATT, IDGW-X2 CARD 3 BREAKERS MBS 35KAIC

Specifications

Product Overview
Type Uninterruptible Power Supply (UPS)
Form Factor Tower
Model Eaton 93PM UPS
Power Rating 30 kW
Input Voltage 480V
Output Voltage 208/120V
Battery Type VRLA
Alternative Battery Options Lithium-Ion (optional)
Number of Battery Strings 3
Redundancy Optional N+1 redundancy
Internal Bypass Maintenance Bypass Switch (MBS)
Breaker Rating 3 Breakers, 35 kAIC
Power Efficiency Up to 97%
ECO Mode Efficiency Up to 99%
Scalability Modular solution for growth

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 1778, CSA, FCC Part 15 Class A, RoHS
Environmental Compliance REACH, RoHS

Advanced Security Features
Built-in Firewall Yes, on IDGW-X2 network card
Encryption Protocols TLS 1.2, HTTPS, SSH
Access Control User-based role access

Interfaces
Communication Interface Intelligent Gateway Card (IDGW-X2)
Network Management Ports 1 x Ethernet (RJ-45)
USB Ports 1 x USB Type B
Serial Ports 1 x RS-232
Relay Ports 8 dry contact inputs/outputs
Web Interface Integrated web server

Physical & Environmental
Height 74 in (1880 mm)
Width 22 in (560 mm)
Depth 42 in (1070 mm)
Weight Approx. 1100 lbs (499 kg)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Relative Humidity 0%–95% non-condensing
Audible Noise <60 dBA at 1 meter
Cooling Method Forced air via internal fans

Cloud Management & Licensing
Cloud Monitoring Support Eaton Intelligent Power Manager (IPM), Brightlayer Data Centers suite
Web Management Interface Yes, via IDGW-X2 card
SNMP Support SNMP v1/v2c/v3
Licensing Model No license required for local monitoring; optional licenses for cloud services
