Eaton 93PM UPS 480V 30kW with Communication Cards, No Batteries Installed

VENDOR: EATON Mfg Part#: 9PA03C2029A00R2
1 2

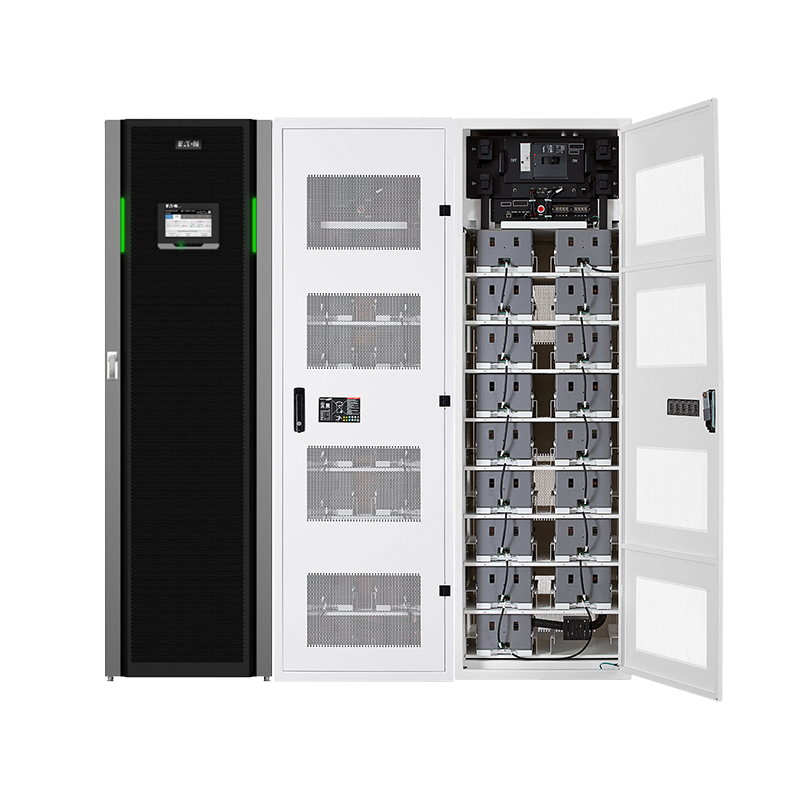

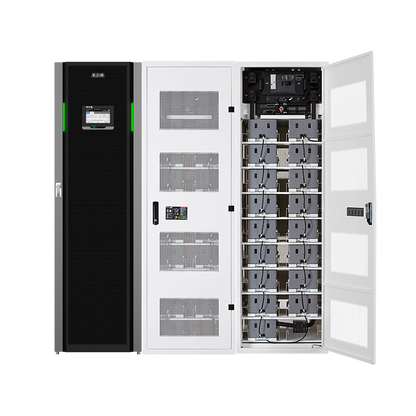

Photo is for illustration purposes only. Actual product may be different.
$43,008.38
$43,008.38
Sale Sold out
MSRP: $66,628.00
Shipping calculated at checkout.
  • 30kW power output at 480V for high-capacity support
  • Includes all communication cards for monitoring and integration
  • Supports up to 3 battery strings for flexible backup configurations
  • Compact footprint: 22" width, 42" depth, 74" height
  • TAA compliant and manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers reliable 30kW power capacity suitable for high-load enterprise and industrial IT systems.
  • Integrated communication cards simplify deployment into advanced remote monitoring environments.
  • Shipped without batteries to allow full customization of energy storage based on site-specific needs.

Product Overview

Eaton 93PM 480v 30kW 3 strings batt; all communication cards, no batt installed

Specifications

Product Overview
Manufacturer EATON
Model Eaton 93PM UPS
Manufacturer Part Number 9PA03C2029A00R2
Product Type Uninterruptible Power Supply (UPS)
Form Factor Tower
Power Capacity 30 kW
Input Voltage 480V
Output Voltage 480V
Efficiency Up to 97%
Power Factor 1.0
Weight (without batteries) Approximately 1,100 lbs
Energy Star Certified Yes

Physical & Environmental
Height 74 in (1880 mm)
Width 22 in (560 mm)
Depth 42 in (1067 mm)
Minimum Operating Temperature 0°C (32°F)
Maximum Operating Temperature 40°C (104°F)
Relative Humidity (Non-Condensing) 5% - 95%
Cooling Method Forced air
Noise Level 60 dBA (at 1 meter)

Cloud Management & Licensing
Remote Monitoring Yes, via Eaton Intelligent Power Manager (IPM)
Cloud Support Eaton Brightlayer enabled
Management Interfaces Web, SNMP, Modbus, BACnet
Licensing Model Optional IPM licensing for advanced features

Interfaces
Communication Slots 3 communication card slots
Network Management Card Included
Serial Ports Yes (RS-232)
USB Ports Yes (1)
Ethernet Port 1 x RJ-45 10/100 Base-T
EPO (Emergency Power Off) Yes
Relay Output Ports Yes
Dry Contact Ports Yes

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
RoHS Compliant Yes
UL Listed UL 1778
CSA Certified Yes
FCC Compliance Class A
Seismic Rating OSHPD tested
Environmental Standards ENERGY STAR qualified

Advanced Security Features
Secure Protocol Support HTTPS, SNMPv3, SSH
User Access Control Role-based access with authentication
Event Logging Yes, with time stamp and alert distribution
Firmware Upgrade Security Digitally signed firmware
