| Product Type | Uninterruptible Power Supply (UPS) |
| UPS Topology | Online Double Conversion |
| Form Factor | Tower (12-slot modular) |
| Model Series | Eaton 9PXM |
| Hot-Swappable Modules | Yes, both power and battery modules |
| Power Capacity | 12 kVA / 10.8 kW |
| Expandable Power Modules | Yes, scalable power capacity |
| Battery Backup Time (Full Load) | 4.2 minutes |
| Battery Type | Sealed, lead-acid, maintenance-free |
| Power Supply Type | Redundant, hot-swappable |
| Nominal Input Voltage | 208/240 VAC |
| Nominal Output Voltage | 208/240 VAC |
| Load Segments | 4 programmable load segments |
| Replacement Battery Module | Eaton BM12RT |
| Power Distribution Unit (PDU) | Integrated |
Eaton 9PXM UPS, 12-Slot Tower, (2) L6-30R, (16) 5-20R, TAA Compliant

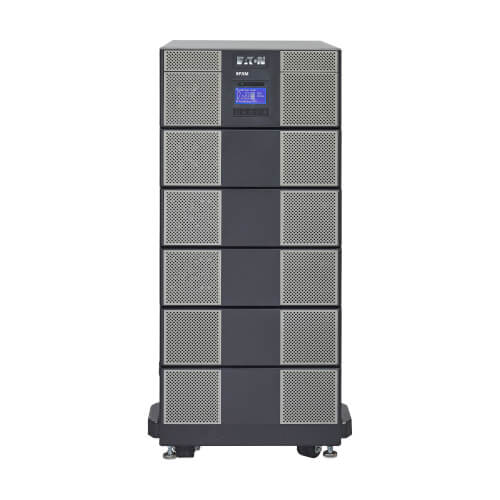

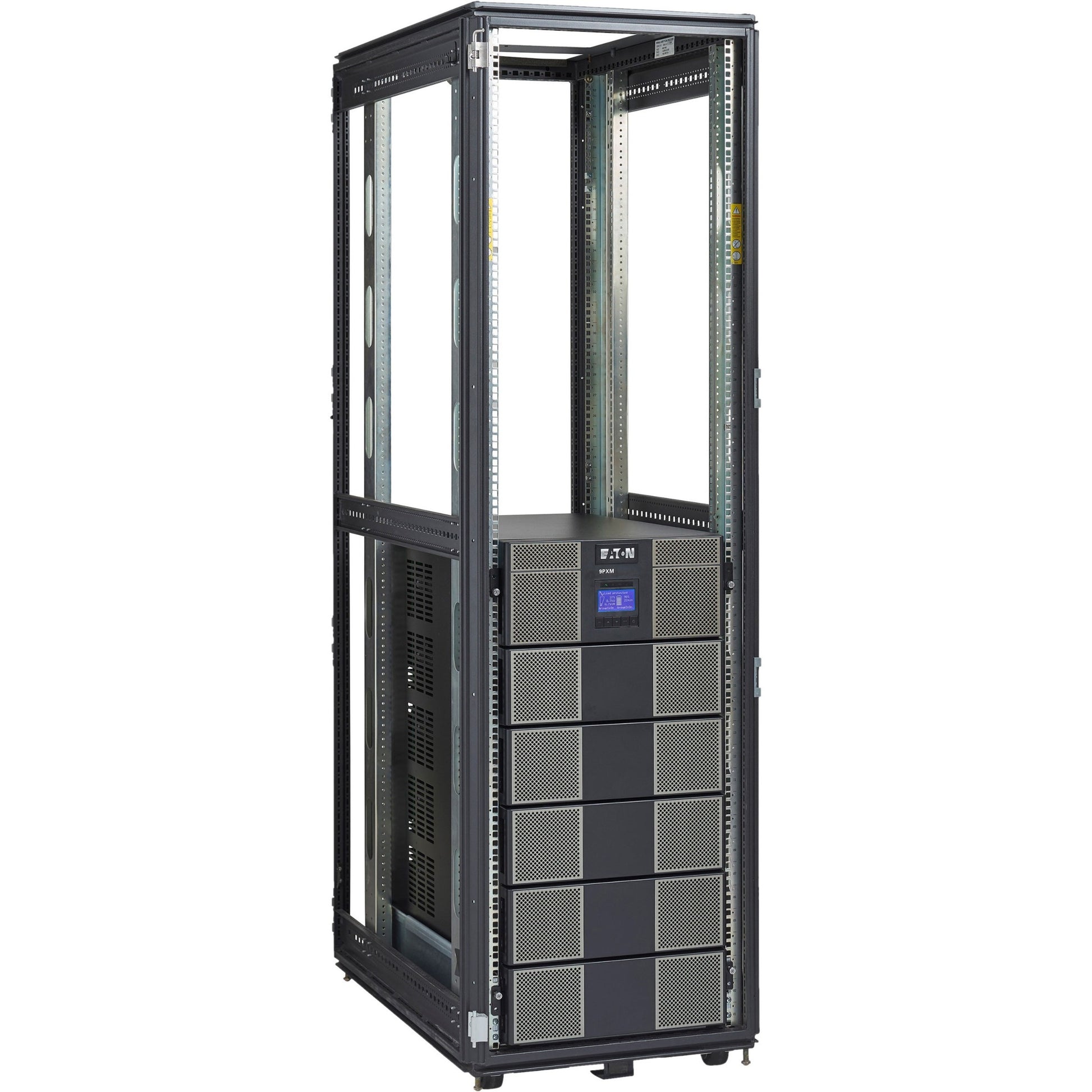

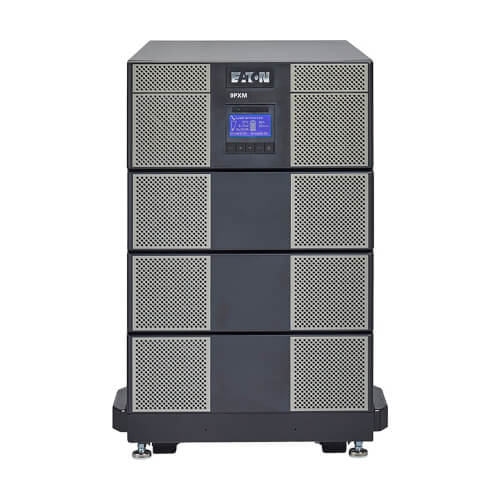

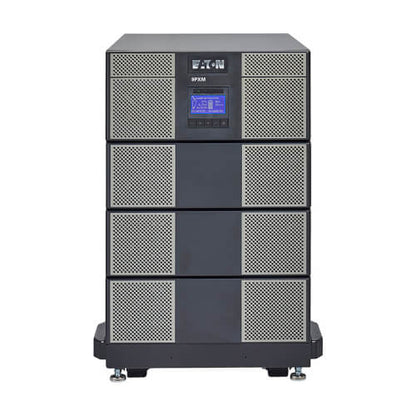

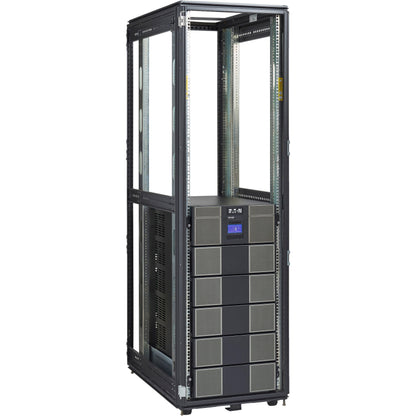

Photo is for illustration purposes only. Actual product may be different.
Regular price
$5,155.50
Regular price
Sale price
$5,155.50
Unit price
per
MSRP: $8,173.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 12-slot modular tower UPS for scalable power management
- (2) L6-30R and (16) 5-20R output receptacles for versatile device connectivity
- Hot-swappable power and battery modules enable uninterrupted maintenance
- TAA compliant for approved federal procurement
- Manufactured in the United States
- Designed for mission-critical reliability
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Hot-swappable design reduces maintenance downtime and avoids costly outages
- TAA compliance and U.S. manufacturing make it suitable for federal institutions
- High outlet density (18 total) supports diverse power needs in enterprise environments
Product Overview
Eaton 9PXM UPS - UPS - Tower - 208-240V - (2) L6-30R; (16) 5-20R - Hot-swappable power and battery modules are lightweight, allowing you to replace modules in normal operation mode without a service call.Specifications
Product Overview
Physical & Environmental
| Dimensions (H x W x D) | 34.5 x 17.2 x 27.2 inches (876 x 437 x 691 mm) |
| Weight | 272.0 lbs (123.4 kg) without batteries |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -15°C to 40°C (5°F to 104°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Altitude (Maximum Operating) | 3,000 m (10,000 ft) |
| Audible Noise Level | <50 dB at 1 meter |
| Cooling Method | Forced Air Cooling |
Cloud Management & Licensing
| Management Interface | Eaton Intelligent Power Manager (optional) |
| Remote Monitoring | Supported via SNMP/Web with optional card |
| Licensing Requirements | None for basic features; optional licensing for advanced features |
| Mobile Management | Yes, via Eaton mobile app and network card |
Interfaces
| Output Connections | (2) L6-30R; (16) 5-20R |
| Input Connection | Hardwired – 3 wire (1PH) with ground |
| Communication Ports | RS-232, USB, Relay Output, Slot for Network Card |
| Manageability Slot | 1 x Mini-Slot |
| Network Management Card Option | Eaton Network-M2 (optional) |
| SNMP Support | Yes, with optional network card |
Compliance & Origin
| Country of Origin | United States |
| TAA Compliant | Yes |
| Certifications | UL 1778, CSA, FCC Class A, ENERGY STAR qualified |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Advanced Security Features
| Network Isolation | Optional with network card and secure protocols |
| Secure SNMP v3 Support | Yes, with Network-M2 card |
| User Authentication | Role-based access control via web interface |
