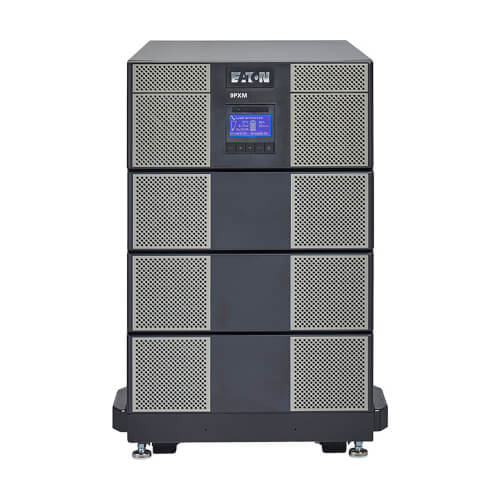

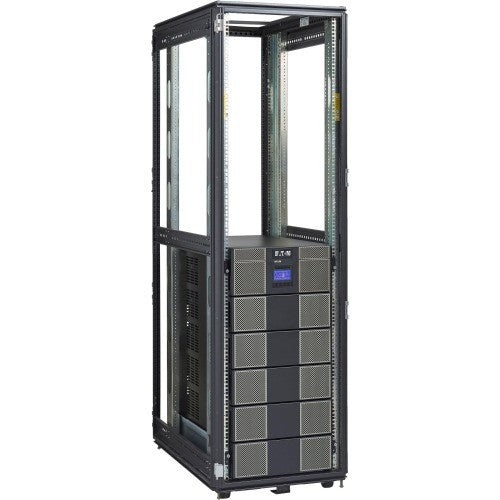

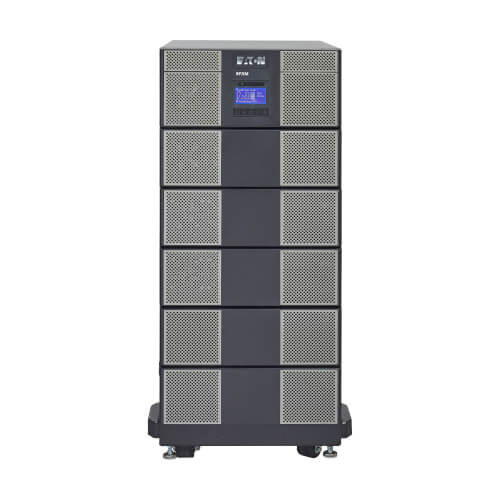

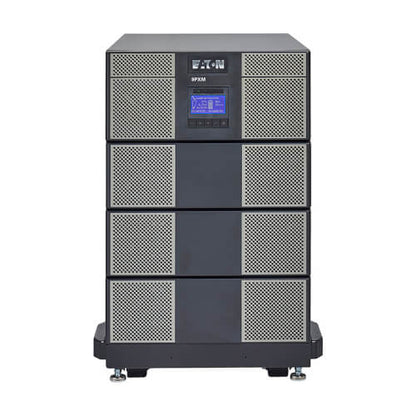

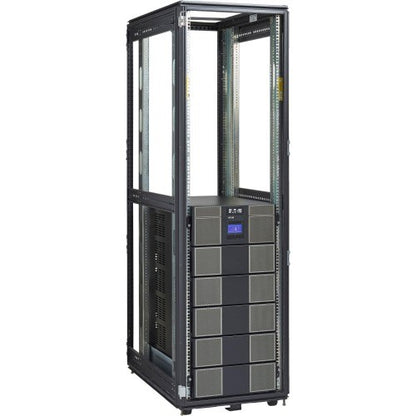

Eaton 9PXM UPS, Rack/Tower, 12-Slot, (4) L6-30R, (2) L6-20R, (8) C13

VENDOR: EATON Mfg Part#: 9PXM12HHFCA
1 4
Photo is for illustration purposes only. Actual product may be different.
$5,183.89
$5,183.89
Sale Sold out
MSRP: $8,218.00
Shipping calculated at checkout.
  • - Rack/Tower hybrid form factor for deployment flexibility
  • - 12-slot modular UPS chassis for scalable power capacity
  • - (4) L6-30R, (2) L6-20R, and (8) C13 outlets for broad device compatibility
  • - TAA compliant and manufactured in the United States
  • - Supports enterprise-grade applications with reliable power delivery

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Modular 12-slot design provides easy scalability for growing power needs
  • - TAA compliance and U.S. origin make it ideal for government and regulated markets
  • - Versatile outlet configuration supports a wide range of equipment from IT to industrial systems

Product Overview

Eaton 9PXM UPS - UPS - Rack/Tower - (4) L6-30R s, (2) L6-20R s, (8) C13 s.

Specifications

Product Overview
Product Type Uninterruptible Power Supply (UPS)
Model Eaton 9PXM UPS
Form Factor Rack/Tower Convertible
Mounting Rack-mountable / Tower
Slot Capacity 12-slot chassis
Hot-swappable Modules Yes
Redundancy N+1 redundancy capable
Scalable Runtime Yes, via additional battery modules
Topology Online Double-Conversion
Power Capacity up to 20 kVA
Efficiency Up to 92% online, 98% in Energy Saver System (ESS) mode
Input Voltage Range 208V/120V or 240V Input
Output Voltage 208V/120V or 240V configurable
Frequency 50/60 Hz auto-sensing
Weight (fully populated) 452 lbs (205 kg)

Wireless Features

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications UL 1778, cULus, FCC Class A, RoHS
Safety Standards UL, cUL Listed

Advanced Security Features
Encryption Support AES-256 for network communication via Network-M2 card
Network Security Protocols HTTPS, SNMPv3, SSH, SMTP authentication
User Access Control Role-based access via management interface

Interfaces
Output Connectors (4) NEMA L6-30R, (2) NEMA L6-20R, (8) IEC C13
Input Connector Hardwired or optional input cord
Communication Ports USB, RS-232, Relay ports, 1 x Gigabit Network interface
Management Interface Slot 1 x Network-M2 Communication Slot
Extended Battery Connector Yes

Physical & Environmental
Dimensions (H x W x D) 17.5 in x 17.3 in x 29.25 in (445 mm x 439 mm x 743 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -15°C to 45°C (5°F to 113°F)
Relative Humidity 5% to 95% non-condensing
Altitude (Operating) Up to 10,000 ft (3,000 m)
Noise Level ≤ 55 dB at 1 meter

Cloud Management & Licensing
Management Software Eaton Intelligent Power Manager (IPM)
Web Management Interface Yes, via optional Network-M2 Card
SNMP Support Yes
Remote Monitoring Yes
Included Licenses Basic IPM license included (expandable)
