Eaton EPDU G3HD MA 24A PDU, L14-30P, 30 Outlets, 71.45in, Black

VENDOR: EATON Mfg Part#: EMACNT3XJE5Y2K2
1 5

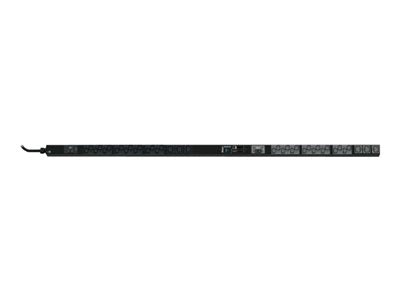

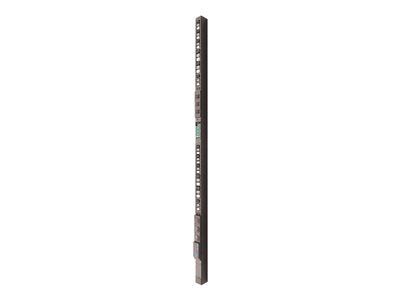

Photo is for illustration purposes only. Actual product may be different.
$2,157.70
$2,157.70
Sale Sold out
MSRP: $2,777.00
Shipping calculated at checkout.
  • 24A input with L14-30P plug and 10-foot cord for flexible installations
  • 30 total outlets including 12x C13, 6x C39, and 12x 5-20 for wide device compatibility
  • Three DP-20A output circuits enabling segmented load distribution
  • Occupies 71.45 inches (40.9U) in vertical rackmount deployments
  • TAA-compliant and made in the USA
  • Professional black enclosure suited for enterprise rack deployments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports a wide mix of plug types and devices with 30 total outlets, maximizing rack-level versatility
  • Compliant with TAA regulation and made in the USA, ideal for federal and government contracts
  • Long vertical form factor (71.45in) allows high-density power distribution in tall rack environments

Product Overview

Eaton EPDU G3HD MA L14-30P 24A 10FT-END 3XDP-20A 12XC13,6XC39,12X5-20 LENGTH 71.45IN/1815MM/40.9U, COLOR BLACK

Specifications

Product Overview
Type Power Distribution Unit (PDU)
Form Factor Vertical Rackmount
Mounting Orientation Vertical
Rack Height 40.9U
Unit Length 71.45 in
Color Black
Power Capacity 4.9 kW
Input Voltage 208/240V
Input Current 24A
Number of Output Phases Single-phase output from three-phase input
Power Input Type Hardwired with 10 ft cord
Cord Length 10 ft

Physical & Environmental
Enclosure Type Metal
Unit Dimensions (Height x Width x Depth) 71.45 in x 2.18 in x 2.18 in
Weight 21 lbs
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Relative Humidity 0% to 95% non-condensing

Cloud Management & Licensing
Network Management Eaton G3 Network Management Interface
Management Protocols SNMP v1/v2c/v3, HTTP/HTTPS, Telnet, SSH
User Interface Web browser-based GUI
Supported Platforms Eaton Intelligent Power Manager (IPM), HTML5 GUI

Interfaces
Input Connector Type NEMA L14-30P
Input Plug Type NEMA L14-30P
Output Connector Types 12 x IEC C13, 6 x C39, 12 x NEMA 5-20R
Total Outlets 30
Metering Individual Outlet Level
Switching Capability Outlet-level switching
Display Type OLED local display
Communication Ports Ethernet (RJ-45), USB, Serial
Network Interface 10/100 Mbps Ethernet

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
RoHS Compliant Yes
ETL Listed Yes
Certifications cUL, CE, NOM, FCC Part 15 Class A

Advanced Security Features
User Authentication Role-based access control (RBAC)
Secure Communication HTTPS, SSH, SNMPv3, TLS encryption
Logging & Alerts Event logging, Email alerts, SNMP traps
