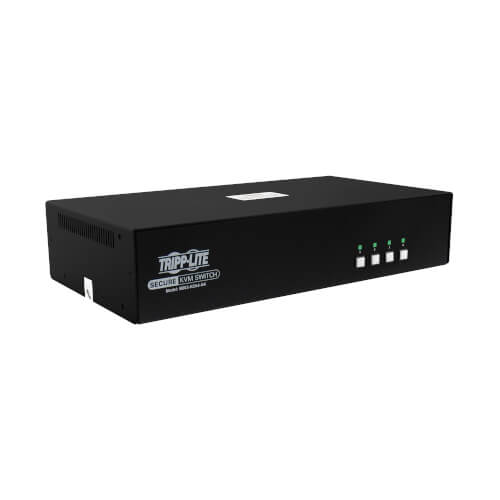

Eaton Tripp Lite 4-Port Dual Head DisplayPort Secure KVM Switch

VENDOR: EATON Mfg Part#: B002-DP2AC4-N4 UPC#: 037332274243
1 2
Photo is for illustration purposes only. Actual product may be different.
$1,920.89
$1,920.89
Sale Sold out
MSRP: $3,104.00
Shipping calculated at checkout.
  • 4-Port Dual Head KVM switch with DisplayPort-to-DisplayPort support
  • Supports 4K video resolution at 3840 x 2160 @ 30Hz
  • NIAP Protection Profile 4.0 and TAA compliance for secure applications
  • Includes USB A/B, DisplayPort, and 3.5mm audio interfaces
  • Compatible with any major operating system
  • Backed by a 3-year limited warranty for long-term support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for secure networks with NIAP PP4.0 certification and TAA compliance
  • High-resolution support up to 4K ensures crisp visuals across dual displays
  • Multi-interface design (USB, DisplayPort, Audio) maximizes compatibility and efficiency

Product Overview

Eaton Tripp Lite Series Secure KVM Switch, 4-Port, Dual Head, DisplayPort to DisplayPort, 4K, NIAP PP4.0, Audio, CAC, TAA - 4-Port DisplayPort KVM Switch Is Ideal for Applications That Demand Secure Networks

Specifications

Product Overview
Device Type KVM Switch
Form Factor Desktop
Users Supported 1
Display Support Dual DisplayPort
Max Resolution 3840 x 2160 @ 30Hz
Power Supply External AC Adapter
Power Consumption 4.65W (typical), 6.4W (max)
Color Black
Product Model B002-DP2AC4-N4
Product Family Tripp Lite Secure KVM
Operating Systems Supported Windows, macOS, Linux, UNIX

Wireless Features
Wireless Support

Compliance & Origin
NIAP Protection Profile PP 4.0
TAA Compliant Yes
Country of Origin United States
Certifications FCC, CE, RoHS, NIAP PP4.0, REACH
Security Accreditations NIAP Common Criteria Certified

Advanced Security Features
Keyboard/Mouse Emulation Yes
Unidirectional Data Flow Enforcement Yes
No External Network Access Yes
Anti-Tamper Housing Yes
Non-Reprogrammable ROM Yes
Configurable CAC Port Isolation Yes
Physical Button Switching Only (no hotkeys) Yes

Interfaces
Computer Ports 4 x DisplayPort (female), 4 x USB-B (female), 4 x 3.5mm audio (female)
Console Ports 2 x DisplayPort (female), 2 x USB-A (female), 1 x 3.5mm audio (female), 1 x CAC USB-A
Port Type DisplayPort 1.2
Number of Ports 4 Computers / 1 Console
CAC (Common Access Card) Support Yes (dedicated USB port)
Audio Support Yes (3.5mm stereo audio)
USB Hub USB 2.0
Video Bandwidth 21.6 Gbps per DisplayPort channel

Physical & Environmental
Dimensions (H x W x D) 5.9 x 13.9 x 1.7 in (15 x 35.2 x 4.3 cm)
Weight 6.6 lb (3.0 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Operating Humidity 0 to 80% RH, non-condensing
Storage Humidity 0 to 80% RH, non-condensing
Cooling Fanless
Enclosure Type Metal

Cloud Management & Licensing
Remote Management No
Licensing Requirements None (Plug and Play)
Software Included None required
