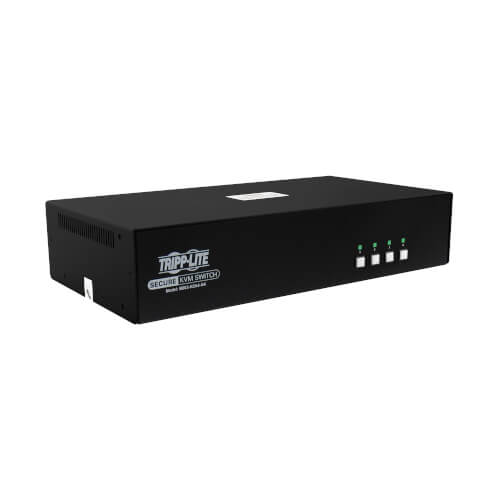

Eaton Tripp Lite 4-Port Secure DisplayPort KVM Switch, NIAP PP4.0, 4K, Audio

VENDOR: EATON Mfg Part#: B002-DP1A4-N4 UPC#: 037332274274
1 2
Photo is for illustration purposes only. Actual product may be different.
$1,423.34
$1,423.34
Sale Sold out
MSRP: $2,300.00
Shipping calculated at checkout.
  • 4-port secure KVM switch with DisplayPort-to-DisplayPort connectivity
  • Supports maximum resolution of 3840 x 2160 @ 30Hz for 4K UHD outputs
  • Certified to NIAP Protection Profile 4.0 for strict information assurance
  • TAA-compliant for government and federally regulated procurement
  • Includes 3.5mm audio interface and international power adapter kit
  • Compact dimensions: 4.47 cm (W), 16.9 cm (H), 31.7 cm (D)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for classified or multi-domain environments requiring strict computer isolation (NIAP PP4.0 certified)
  • Supports high-fidelity 4K UHD video output, ensuring optimal display quality across secure systems
  • Global-ready with 100–240V support and power adapters for US, UK, EU, and Australia included

Product Overview

Tripp Lite B002-DP1A4-N4 Secure KVM Switch, 4-Port, Single Head, DisplayPort to DisplayPort, 4K, NIAP PP4.0, Audio, TAA -Black - 3-year limited warranty

Specifications

Product Overview
Product Type Secure KVM Switch
Model B002-DP1A4-N4
Form Factor Desktop
Number of Ports 4
Display Support Single Head
Video Resolution 3840 x 2160 @ 30Hz (4K UHD)
Power Requirements 100-240V AC, 50/60Hz, 1.3A; Output: 12V DC 3A
Power Adapter Plugs Included US, UK, EU, Australia
Enclosure Color Black
Warranty 3-year limited warranty
TAA Compliant Yes

Physical & Environmental
Width 4.47 cm
Depth 31.7 cm
Height 16.9 cm
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Relative Humidity 0% to 80% (non-condensing)
Enclosure Material Steel

Cloud Management & Licensing
Remote Management
Cloud Integration
Licensing Requirements No additional licensing required

Interfaces
Host Ports 4 x DisplayPort + USB-B + 3.5 mm audio
Console Ports 1 x DisplayPort, 2 x USB (keyboard/mouse), 1 x 3.5 mm audio
Audio Ports 3.5 mm stereo jack (microphone and speaker)
User Console Keyboard/Mouse Ports 2 x USB Type A
User Console Monitor Port 1 x DisplayPort (female)
Computer Keyboard/Mouse Ports 4 x USB Type B
Computer Monitor Ports 4 x DisplayPort (female)
Data Transfer Rate USB 2.0 (up to 480 Mbps)

Compliance & Origin
Country of Origin United States
Certifications NIAP Protection Profile 4.0, TAA Compliant, CE, FCC, REACH, RoHS
Security Standard NIAP Common Criteria PP4.0 for Peripheral Sharing Switch

Advanced Security Features
Secure Switching Data signals fully isolated to prevent data leakage between ports
Anti-Tamper Protection Built-in tamper-evident seals and chassis intrusion detection
Keyboard/Mouse Emulation Always-on, non-reprogrammable
Unidirectional Optical Data Diodes Implemented for keyboard and mouse channels
USB Peripheral Filtering Only keyboard and mouse HID USB devices allowed
Audio Protection Unidirectional audio – no microphone sharing across channels
Isolated Channel Switching No buffer or memory leakage between sessions
