Eaton Tripp Lite 8-Port Secure DP KVM Switch, 4K, NIAP PP4.0, CAC, TAA

VENDOR: EATON Mfg Part#: B002-DP1AC8-N4 UPC#: 037332274885
1 3

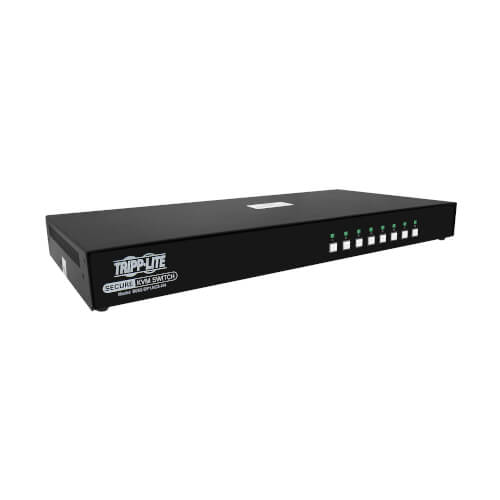

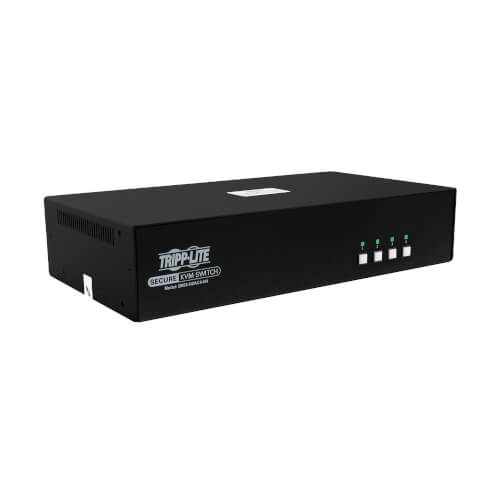

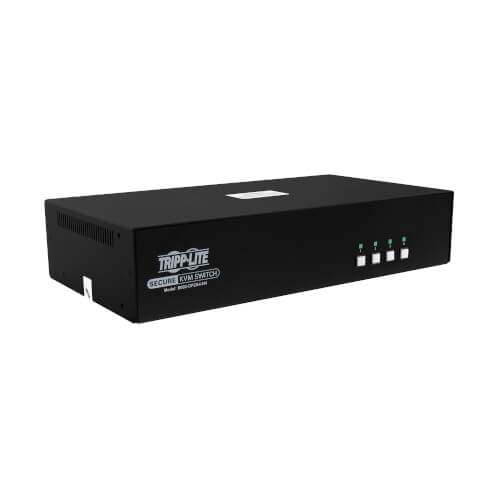

Photo is for illustration purposes only. Actual product may be different.
$3,024.28
$3,024.28
Sale Sold out
MSRP: $4,887.00
Shipping calculated at checkout.
  • 8-port secure KVM switch with DisplayPort to DisplayPort connections
  • Supports max resolution of 3840 x 2160 at 30Hz
  • NIAP PP4.0-certified for secure multi-system access
  • Integrated CAC reader support with audio capability
  • Includes external power supply with 4 regional adapters (US, UK, EU, AU)
  • TAA compliant and includes 3-year limited warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Certified to NIAP PP4.0 standards, making it suitable for use in sensitive government or enterprise environments
  • Supports 4K DisplayPort video and CAC functionality, meeting high-performance and security demands simultaneously
  • Includes 4 interchangeable power supply heads for international compatibility in global IT infrastructures

Product Overview

Tripp Lite B002-DP1AC8-N4 Secure KVM Switch, 8-Port, Single Head, DisplayPort to DisplayPort, 4K, NIAP PP4.0, Audio, CAC, TAA -Black - 3-year limited warranty

Specifications

Product Overview
Device Type KVM Switch
Model B002-DP1AC8-N4
Product Name Eaton Tripp Lite 8-Port Secure DP KVM Switch, 4K, NIAP PP4.0, CAC, TAA
Form Factor Rack-mountable
Mounting Type 1U rackmount
Enclosure Color Black
Weight 2.72 kg
Power Supply Input 100-240V AC, 50/60 Hz, 1.3A
Power Supply Output 12V DC, 3A
External Power Adapter Included with 4 international heads (US, UK, EU, AU)
Warranty 3-year limited warranty

Wireless Features
Wireless Support

Compliance & Origin
NIAP Certification NIAP Protection Profile 4.0 (PP4.0)
TAA Compliant Yes
RoHS Compliance Yes
Certifications NIAP PP4.0, FCC, CE, RoHS, REACH
Country of Origin United States

Advanced Security Features
Data Path Isolation True data path isolation between channels
Unidirectional Data Flow True data diode architecture
Keyboard/Mouse Emulation Security Always-on emulation
Tamper Protection Yes, tamper-evident and tamper-proof hardware
EDID Isolation Yes, ensures display data isolation
Secure USB Filtering Yes, prevents unauthorized USB device connections
Common Criteria Certification Yes

Interfaces
Ports Quantity 8
Keyboard/Mouse Interface USB
Audio Interface 3.5mm stereo (input/output)
Host Video Interface DisplayPort (female)
Console Video Interface DisplayPort (female)
Console USB Ports 2 x USB Type-A (keyboard & mouse)
CAC Support Yes, Common Access Card reader supported
User Console Ports DisplayPort, USB keyboard/mouse, audio
KVM Technology Secure KVM
Max Supported Video Resolution 3840 x 2160 @ 30Hz
Number of User Consoles Supported 1

Physical & Environmental
Width 4.47 cm
Depth 43.18 cm
Height 22.07 cm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 0% to 80% RH, non-condensing
Storage Humidity 5% to 90% RH, non-condensing

Cloud Management & Licensing
Management Interface Local physical interface only (non-network connected)
Cloud Management Support No
Licensing Requirements No license required
