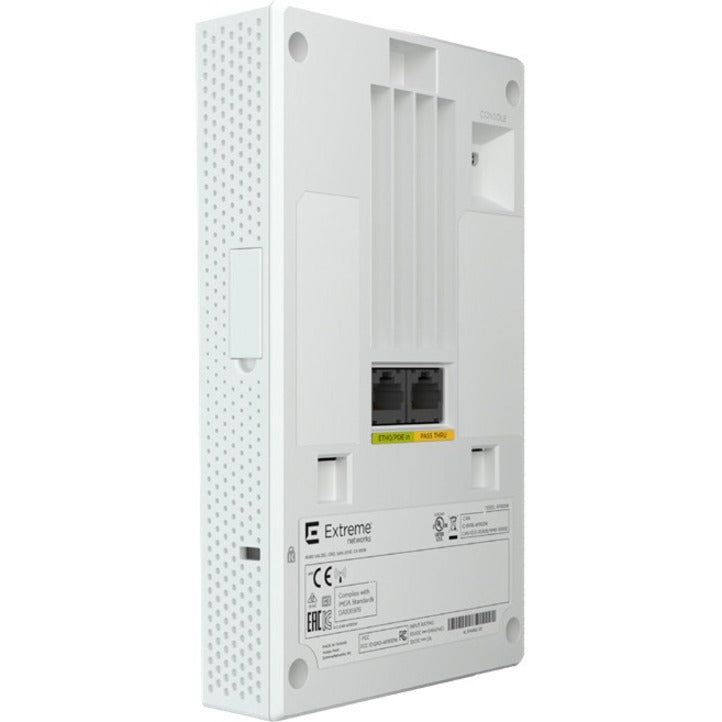

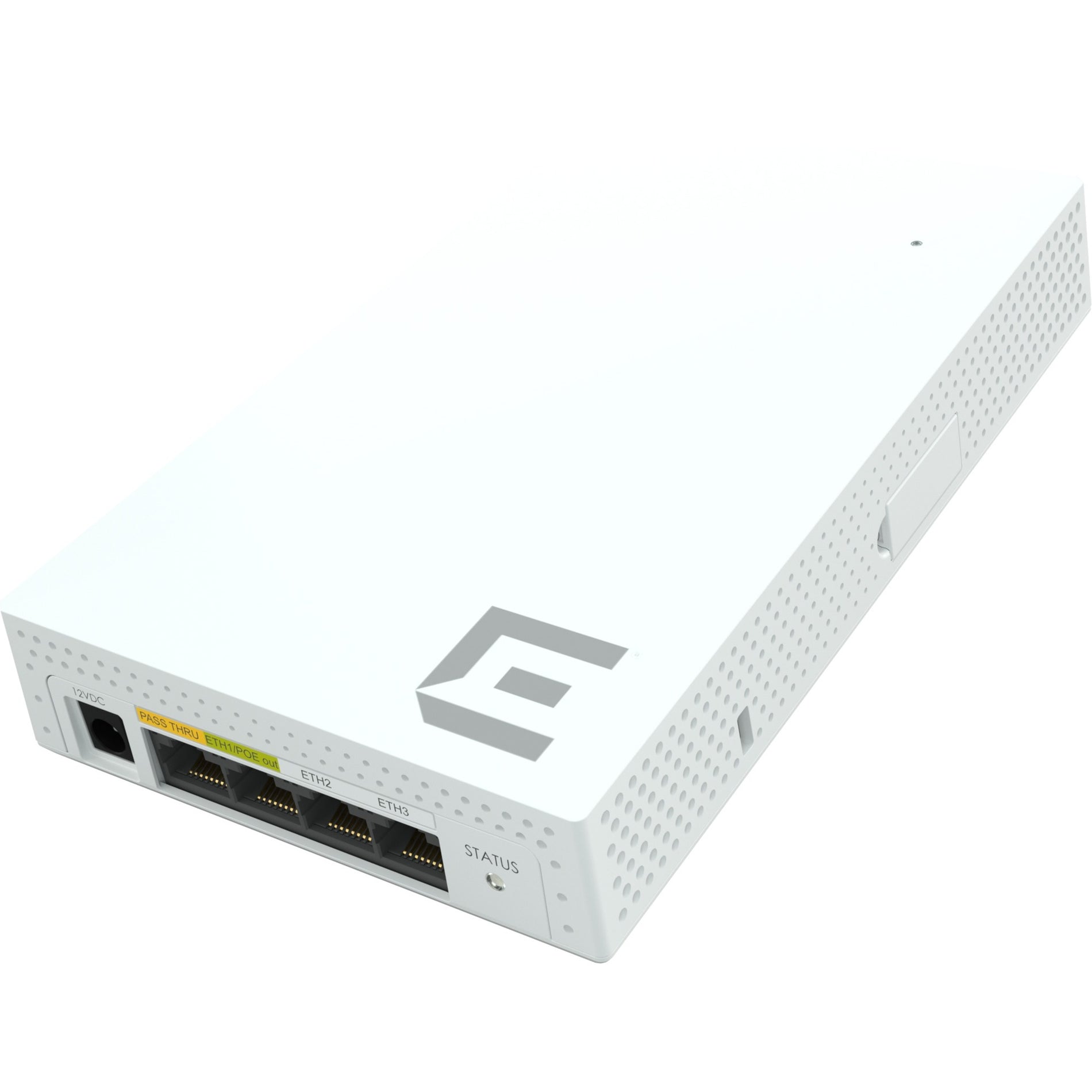

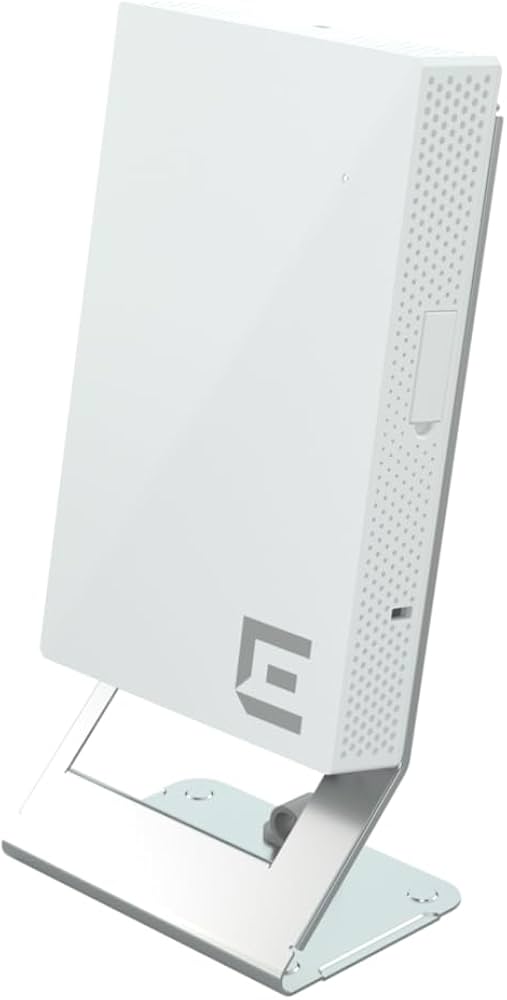

Extreme Networks AP302W WiFi 6 Wallplate Access Point, Dual 5GHz, BLE, PoE+

VENDOR: EXTREME NETWORK INC Mfg Part#: AP302W-WR
1 4
Photo is for illustration purposes only. Actual product may be different.
$332.91
$332.91
Sale Sold out
MSRP: $479.00
Shipping calculated at checkout.
  • Wi-Fi 6 access point with dual 5GHz 2x2 MU-MIMO radios and internal antennas
  • Integrated Bluetooth Low Energy (BLE) and ZigBee for IoT device connectivity
  • Four Gigabit Ethernet ports (3x PoE+, 1x passthrough), including USB 2.0 expansion
  • Built-in light and power sensors enable AI/ML-driven green mode for energy efficiency
  • Supports WPA3, DPI, QoS, WIPS, RADIUS authentication, and VPN services
  • Remote management via RADIUS and ExtremeCloud IQ platform

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-performance Wi-Fi 6 connectivity with dual 5GHz radios for dense multi-user environments
  • Integrated BLE, ZigBee, and IoT device support expands its utility in smart building applications
  • PoE+ output ports and light/power sensors offer enhanced efficiency and simplified cable management for enterprise deployments

Product Overview

ExtremeCloud IQ Indoor WiFi6 Wallplate 2x2 radios with Dual 5GHz and 4 GE Ethernet ports with POE Out. Integrated light/power sensors BLE. AI/ML green mode. Internal antennas. Domain EMEA and Rest Of World

Specifications

Product Overview
Device Type Wireless access point
Product Description Extreme Networks ExtremeCloud IQ AP302W - wireless access point - Bluetooth, ZigBee, Wi-Fi 6
Manufacturer Part Number AP302W-WR
Form Factor External - indoor
Ruggedized Design Indoor
Weight 15.17 oz
Power Consumption Operational 23.6 Watt
Power Requirements PoE+ (IEEE 802.3at)

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac Wave 1 & 2/ax (Wi-Fi 6)
Radio Configuration 2x2:2 MU-MIMO Dual 5GHz + 2.4GHz
Frequency Band 2.4 GHz, 5 GHz
Modulation 256 QAM, OFDM, DSSS
Spread Spectrum Method OFDM, DSSS
Antenna Type Internal
Antenna Count 4
Directivity Omni-directional
Bluetooth Support Bluetooth Low Energy (LE)
ZigBee Support Yes
IoT Compatibility Yes

Compliance & Origin
Compliance Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 1/2, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Country of Origin (COO) TAIWAN
TAA Compliance Yes

Advanced Security Features
Authentication Method RADIUS
Security Features VPN support, DPI, QoS, TxBF, WIPS, HT, SU-MIMO, VHT, PPSK, Kensington lock-compatible

Interfaces
Interfaces 3 x 1000Base-TX (PoE+) - RJ-45 ¦ 1 x 1000Base-TX (PoE+) - RJ-45 ¦ 2 x pass-through - RJ-45 ¦ 1 x USB 2.0 - Type A
Port Count 4 Gigabit Ethernet + 2 pass-through + 1 USB
Interface Types Gigabit Ethernet, USB 2.0
USB Interface USB 2.0 Type A

Physical & Environmental
Dimensions (WxDxH) 4.2 in x 1.1 in x 6.9 in
Width 4.2 in
Depth 1.1 in
Height 6.9 in
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 95% (non-condensing)
Built-in Sensors Light sensor, Power sensor

Cloud Management & Licensing
Management Platform ExtremeCloud IQ
Remote Management Protocol RADIUS
Cloud AI/ML Features AI/ML green mode
