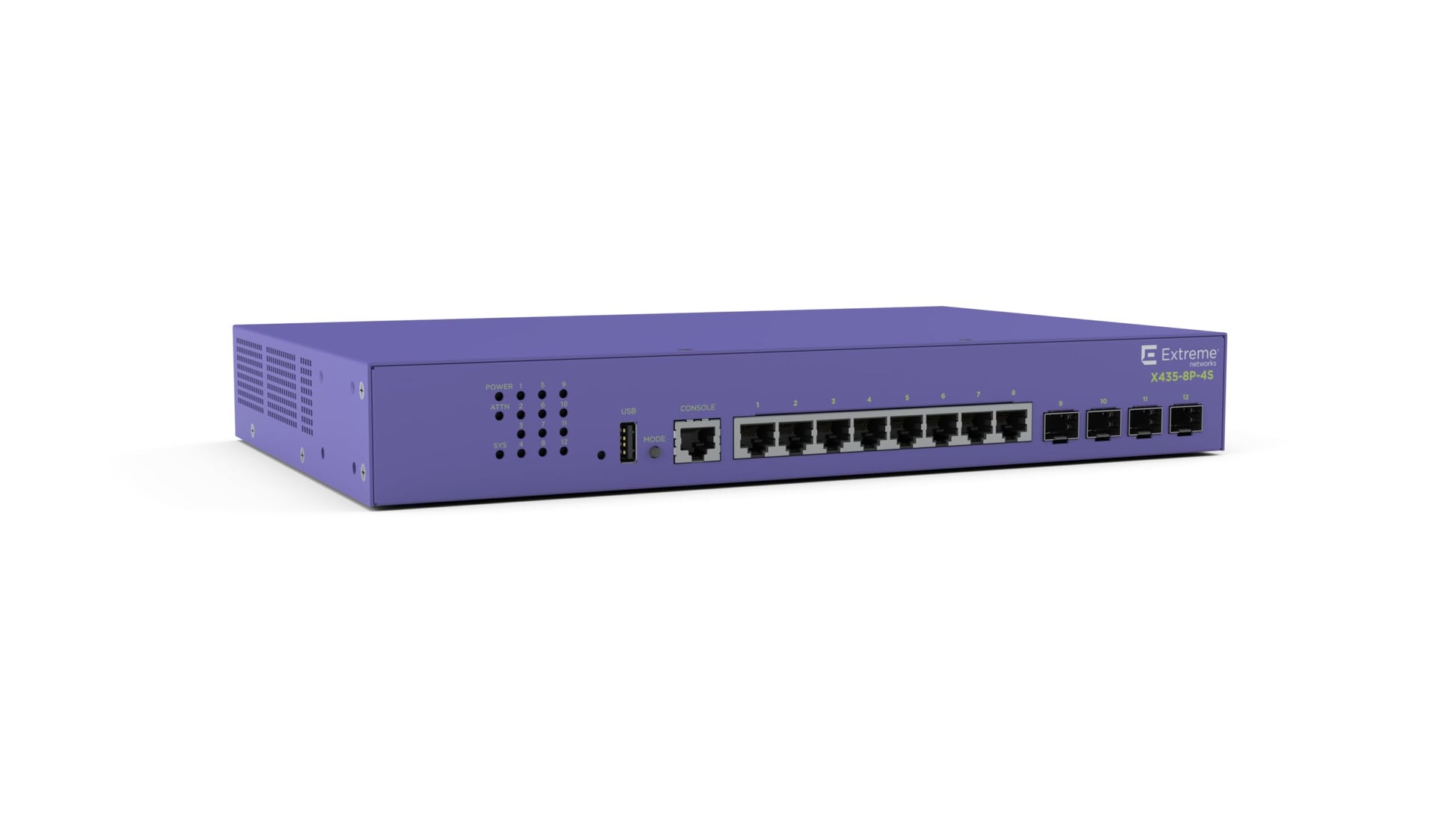

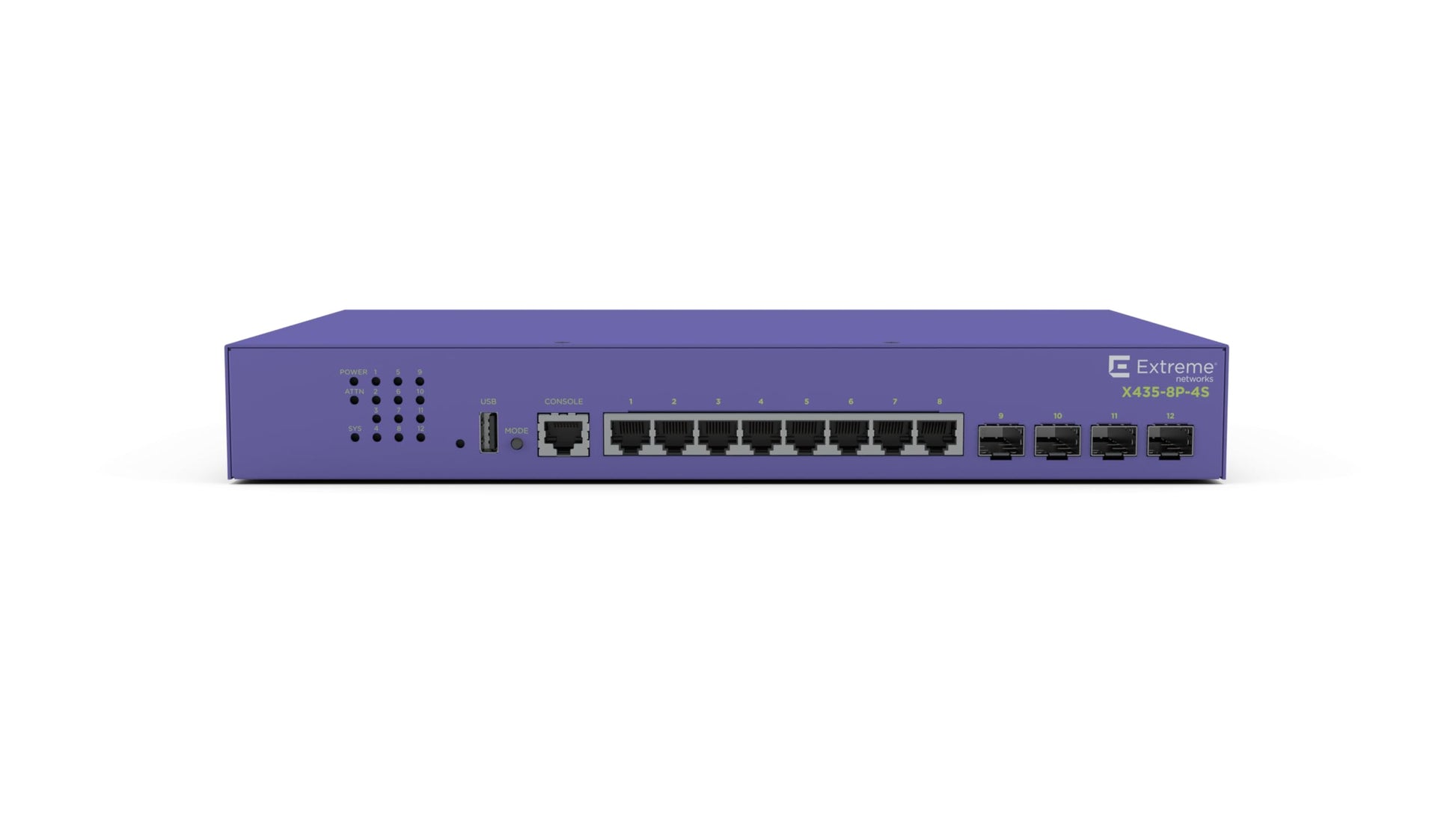

EXTREME NETWORKS X435-8P-2T-W 8-Port PoE+ Gigabit Switch, Fanless

VENDOR: EXTREME NETWORK INC Mfg Part#: X435-8P-2T-W UPC#: 644728046065
1 5
Photo is for illustration purposes only. Actual product may be different.
$976.91
$976.91
Sale Sold out
MSRP: $1,406.00
Shipping calculated at checkout.
  • 8 x 10/100/1000BASE-T PoE+ access ports and 2 x 802.3bt uplink ports (60W/90W)
  • Supports Gigabit Ethernet, IEEE 802.3at/bt/bz/az Standards
  • ARM Cortex A9 processor with 512 MB RAM and 128 MB flash memory
  • Fanless design for silent operation and improved reliability
  • Supports jumbo frames up to 9216 bytes
  • Cloud-based management via ExtremeCloud™ IQ

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high PoE power (up to 90W) for advanced edge devices like cameras and WLAN access points
  • Fanless architecture ensures silent operation and lower maintenance in noise-sensitive environments
  • Integrated cloud-based control via ExtremeCloud™ IQ offers centralized and scalable device management

Product Overview

X435-8P-2T-W 8 port 10/100/1000BASE-T PoE+ half/full duplex 2x1000BASE-T uplinks POE powered 802.3bt type 4 fanless - ARM Cortex A9 - 512MB RAM - 128MB Flash Memory, IEEE 802.3bz, IEEE 802.3at , IEEE 802.1ab, IEEE 802.3bt, IEEE 802.3az

Specifications

Product Overview
Type Managed Gigabit Ethernet Switch
Model X435-8P-2T-W
Form Factor Desktop/Rack-mountable (1U height)
Processor Type ARM Cortex A9
Memory (RAM) 512 MB
Flash Memory 128 MB
Power Requirements PoE powered (IEEE 802.3bt Type 4)
PoE Budget 90W max via PoE input
Max Power Consumption 122.5 W
Weight 1.43 kg
Mounting Options Rack-mountable and wall-mountable

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL, CE, FCC Class A, WEEE, RoHS
Networking Standards IEEE 802.3bz, 802.3at, 802.3bt, 802.1ab, 802.3az

Advanced Security Features
Traffic Segmentation Private VLANs, Port Isolation
Access Control IEEE 802.1X, MAC-based authentication
Network Access Control RADIUS, TACACS+
Threat Management DHCP Snooping, IP Source Guard, Dynamic ARP Inspection

Interfaces
Data Link Protocol Gigabit Ethernet
Total Number of Ports 10
Access Ports 8 x 10/100/1000BASE-T (PoE+)
Uplink Ports 2 x 10/100/1000BASE-T (PoE++)
Console Port 1 x RJ-45 Serial Console
USB Port 1 x USB Type-A
Jumbo Frame Support Up to 9216 bytes
MAC Address Table Size 16K entries
Switching Capacity 20 Gbps
Forwarding Rate 14.88 Mpps

Physical & Environmental
Width 8.20 inches
Depth 10.10 inches
Height 1.73 inches
Operating Temperature Range 0° to 40° C
Storage Temperature Range -40° to 70° C
Operating Humidity 10% to 95% RH (non-condensing)
Cooling Method Fanless

Cloud Management & Licensing
Cloud Management Platform ExtremeCloud IQ
On-Prem Management Option ExtremeCloud IQ - Site Engine
Management Protocols IPv4, IPv6, SNMPv1/v2c/v3, SSH, HTTPS
Cloud Licensing Requirement Subscription-based for full features
Included Cloud Features Centralized management, zero-touch provisioning, network analytics
