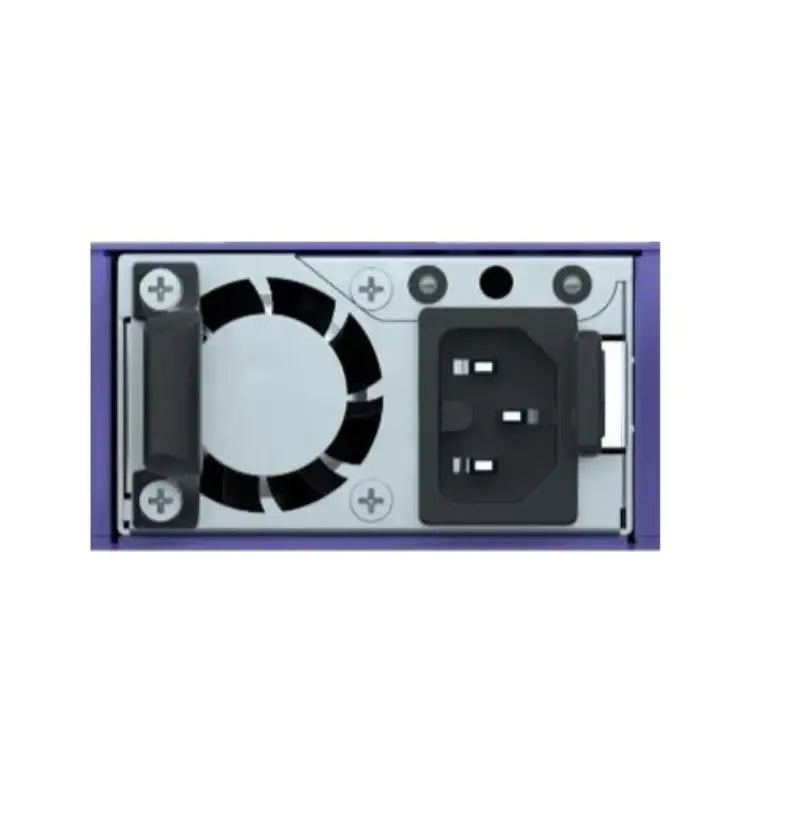

Extreme Networks XN-ACPWR-1200W 1200W PoE Power Supply for 5420 Switches

VENDOR: EXTREME NETWORK INC Mfg Part#: XN-ACPWR-1200W UPC#: 644728052059
1 4
Photo is for illustration purposes only. Actual product may be different.
$1,455.65
$1,455.65
Sale Sold out
MSRP: $2,095.00
Shipping calculated at checkout.
  • 1200W AC Power Supply designed for PoE models of 5420 switches
  • Supports input voltage ranges of 100–127V and 200–240V AC
  • Equipped with IEC/EN60320 C16 input and C15 output connectors
  • Operating temperature range: 0°C to 50°C
  • TAA compliant and manufactured in Taiwan
  • Provides reliable PoE power to high-demand networking equipment

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized specifically for PoE models in the 5420 series, ensuring compatibility and peak performance.
  • Delivers 1200W of power to support high-density PoE applications such as VoIP phones and wireless access points.
  • Complies with TAA regulations, making it ideal for government and federally funded projects.

Product Overview

1200W AC PoE PSU supported on PoE models of 5420 switches

Specifications

Product Overview
Product Type AC Power Supply Unit (PoE)
Model XN-ACPWR-1200W
Form Factor Plug-in module
Power Capacity 1200 Watts
Power Output Type PoE (Power over Ethernet)
Weight 2.2 lbs (approx.)
Power Requirements 100-127/200-240 VAC, 50/60 Hz
Redundancy Support Yes, when installed with redundant PSU
Hot-Swappable Yes
Usage For use with PoE models of Extreme Networks 5420 Switches

Physical & Environmental
Minimum Operating Temperature 0°C (32°F)
Maximum Operating Temperature 50°C (122°F)
Operating Humidity Range 10% to 85% RH (non-condensing)
Storage Temperature -40°C to 70°C
Storage Humidity 5% to 95% RH (non-condensing)
Cooling Method Internal fan (front-to-back airflow)
Dimensions (H x W x D) 1.5 x 4.3 x 11.5 inches (approx.)

Cloud Management & Licensing
Cloud-Managed No
Subscription or License Required No
Management Interface Not applicable (hardware component)

Interfaces
Input Connector Type IEC/EN60320 C16
Output Connector Type IEC/EN60320 C15
Power Interface Internal to chassis backplane
Supported Device Interface Internal PSU slot

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliance Yes
WEEE Compliance Yes
Certifications UL, cUL, CE, FCC, VCCI, BSMI
Safety Standards IEC/EN/UL 60950-1; IEC/EN/UL 62368-1

Advanced Security Features
Integrated Security Features Not applicable (power supply only)
Supported Security Applications Relies on host switch security architecture
