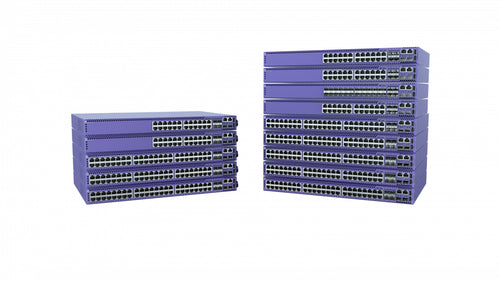

ExtremeSwitching 5420F-24P-4XE PoE+ Switch, 24-Port, 10G SFP+, MACsec

VENDOR: EXTREME NETWORK INC Mfg Part#: 5420F-24P-4XE UPC#: 644728051946
1 5
Photo is for illustration purposes only. Actual product may be different.
$4,783.82
$4,783.82
Sale Sold out
MSRP: $6,885.00
Shipping calculated at checkout.
  • 24 x 10/100/1000BASE-T ports with IEEE 802.3at PoE+ (30W per port)
  • 4 unpopulated 10G SFP+ uplinks for high-speed stacking or uplink
  • MACsec encryption support for secure data transmission
  • 660W operational power consumption with modular PSU option
  • Compact 1.7" height, 17.4" width rackmount form factor
  • Operating temperature range: 0°C to 50°C, RoHS and TAA compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High PoE+ budget (380W) supports power-hungry devices like IP cameras or access points without additional injectors.
  • MACsec encryption ensures end-to-end data security for compliance-driven deployments.
  • Adaptable with 4x 10G SFP+ slots and modular power design, allowing flexible scaling and redundancy.

Product Overview

ExtremeSwitching 5420F 24 10/100/1000BASET FDX/HDX PoE+ 2 stacking/SFP-DD 4 10G unpopulated SFP+ MACsec capable internal fixed PSU fans 1 unpopulated modular PSU slot.

Specifications

Product Overview
Type Managed Ethernet Switch
Form Factor 1U Rack-mountable
Weight 4.64 Kg
Power Requirements Internal Fixed PSU, 660W Provided, 833W Max
PoE Power Budget 380W
Product Model 5420F-24P-4XE

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin Taiwan
RoHS Compliant Yes
TAA Compliant Yes
Certifications UL, cUL, CE, FCC Class A, EN60950-1, IEC 62368

Advanced Security Features
MACsec Encryption IEEE 802.1AE support on PHY ports
Network Access Control 802.1X Port-Based and MAC-Based
Port Security Yes
DHCP Snooping Yes
Dynamic ARP Inspection Yes
IP Source Guard Yes
Access Control Lists (ACLs) Ingress and Egress ACLs
Secure Management HTTPS, SSHv2, SNMPv3
DoS Protection Yes

Interfaces
Total 10/100/1000BASE-T Ports 24
Total SFP+ Ports 4
Data Transfer Rate 10 Gbps
Uplink Ports 4 x 10G SFP+
Stacking Ports 2 x SFP-DD (Stacking/Expansion)
PoE+ Supported Ports 24 x IEEE 802.3at
MACsec Support Yes
Forwarding Rate 95.2 Mpps
Switching Capacity 128 Gbps
Total Number of Ports 30

Physical & Environmental
Dimensions (W x D x H) 17.4 x 11.3 x 1.7 in
Minimum Operating Temperature 0°C
Maximum Operating Temperature 50°C
Operating Humidity 10% to 95% (non-condensing)
Cooling Fixed internal fans
Redundant Power Supply Support Yes, 1 modular PSU slot (unpopulated)

Cloud Management & Licensing
Cloud Management Platform ExtremeCloud™ IQ (optional)
Management Interface Web UI, SSH, SNMPv3, CLI
Supported Protocols SNMP, RMON, HTTP(S), Telnet, SSH
Layer 2 / Layer 3 Support Layer 2 and static Layer 3 routing
Remote Management Yes
