ExtremeSwitching 5520-24T 24-Port Gigabit Ethernet Switch with MACsec

VENDOR: EXTREME NETWORK INC Mfg Part#: 5520-24T UPC#: 644728046966
1 3

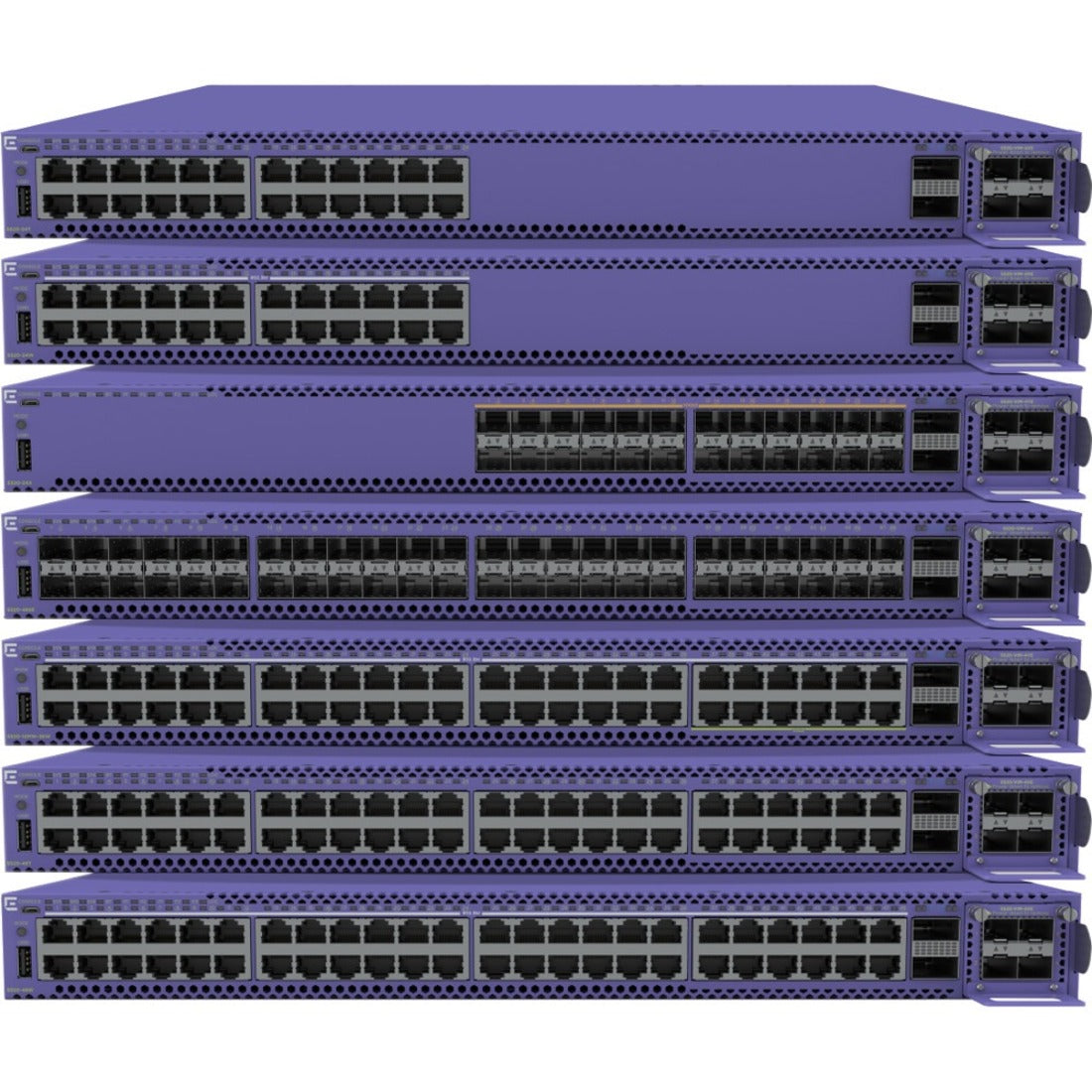

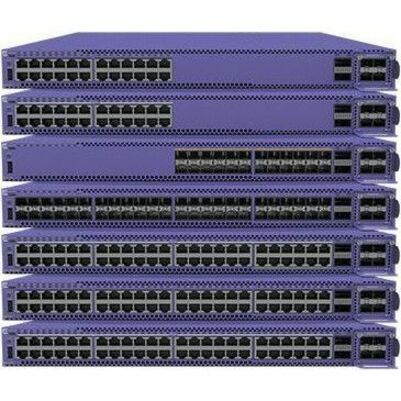

Photo is for illustration purposes only. Actual product may be different.
$4,178.64
$4,178.64
Sale Sold out
MSRP: $6,014.00
Shipping calculated at checkout.
  • 24 x 10/100/1000BASE-T Gigabit Ethernet ports for high-speed connectivity
  • MACsec encryption support for enhanced data security
  • Hot-swappable, redundant fan and power supply modules
  • Two stacking ports via QSFP28 and one unpopulated VIM slot
  • Supports IPv4/IPv6, IEEE 802.3ab, 802.3bz, 802.3ae, 802.3at standards
  • Includes 1-year XIQ Pilot Cloud subscription for remote management

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers enterprise-grade scalability with 24 Gigabit ports and modular expansion options
  • Enhances network security with built-in MACsec encryption and next-gen protocol support
  • Reduces downtime through hot-swappable fans and dual redundant PSU slots

Product Overview

ExtremeSwitching 5520 24 10/100/1000BASET FDX/HDX 2 stacking/QSFP28 1 unpopulated VIM slot MACsec capable includes 2 fan modules 2 unpopulated modular PSU slots.

Specifications

Product Overview
Product Type Managed Switch
Model ExtremeSwitching 5520-24T
Form Factor 1U Rack-mountable
Weight 5.54 kg
Power Supply Configuration Dual modular, redundant (unpopulated by default)
Included Fan Modules 2 Hot-swappable fans
Maximum Power Consumption 142 W
Expansion Modules 1 unpopulated VIM (Versatile Interface Module) slot
Stacking Capability Yes, via 2 QSFP28 stacking ports

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin (COO) Taiwan
TAA Compliant Yes
Certifications UL, cUL, CB, FCC Class A, EN 55032 Class A
Environmental Compliance RoHS, WEEE, REACH

Advanced Security Features
Network Encryption Protocols MACsec 256-bit encryption
Access Control IEEE 802.1X, RADIUS, TACACS+
Traffic Security Features DHCP snooping, Dynamic ARP Inspection, IP Source Guard
Control Plane Protection Control Plane Policing (CoPP)
Secure Management Access SSH, HTTPS, SNMPv3

Interfaces
Primary Ports 24 x 10/100/1000BASE-T RJ-45
Uplink Ports 2 x 100GbE QSFP28
Additional Interfaces 1 x unpopulated VIM for optional uplinks
Total Port Count 31
Ethernet Standards Supported IEEE 802.3ab, 802.3bz, 802.3ae, 802.3at
MACsec Support Yes
PoE Support No
Data Transfer Rate 10/100/1000 Mbps per port
Switching Capacity Up to 880 Gbps
Forwarding Rate Up to 654 Mpps

Physical & Environmental
Width 17.36 inches
Depth 17.42 inches
Height 1.73 inches
Min Operating Temperature 0 °C
Max Operating Temperature 45 °C
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C
Operating Humidity 10% to 95% non-condensing

Cloud Management & Licensing
Cloud Management Platform ExtremeCloud™ IQ
Free Cloud License Included 1-year ExtremeCloud IQ Pilot
Management Protocols SNMPv1/v2/v3, Telnet, SSH, HTTP/HTTPS
