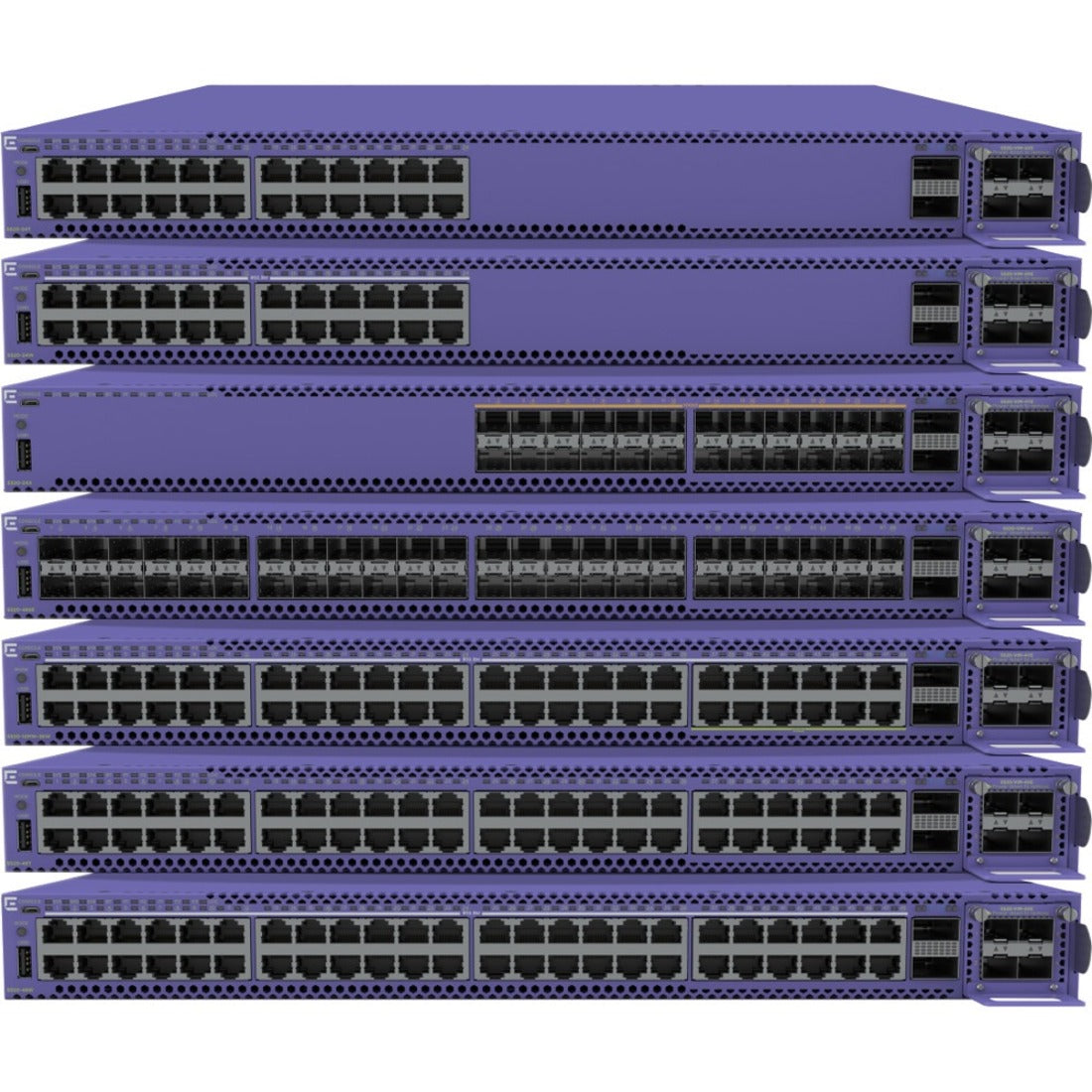

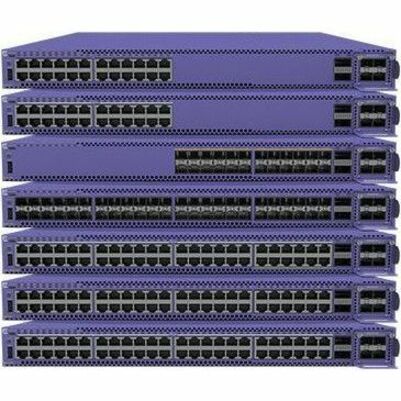

ExtremeSwitching 5520-48T 48-Port Gigabit Switch with MACsec & QSFP28

VENDOR: EXTREME NETWORK INC Mfg Part#: 5520-48T UPC#: 644728046980
1 2
Photo is for illustration purposes only. Actual product may be different.
$6,427.07
$6,427.07
Sale Sold out
MSRP: $9,250.00
Shipping calculated at checkout.
  • 48 x 10/100/1000Base-T Ethernet ports for high-density connectivity
  • MACsec-capable hardware enhances data layer security
  • Universal hardware supports Switch Engine (EXOS) or Fabric Engine (VOSS)
  • Includes three fan modules and two unpopulated modular PSU slots for redundancy
  • Supports wired connectivity with QSFP28 form factor for uplinks or stacking
  • Operates on 100–240V AC with maximum power consumption up to 171W

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for secure enterprise environments with MACsec support and flexible OS options
  • Expandable architecture with VIM slot and redundant power supply support enhances future-proofing
  • Bundled 1-year ExtremeCloud IQ Pilot subscription adds value with cloud-managed capabilities

Product Overview

ExtremeSwitching 5520 48 10/100/1000BASET FDX/HDX 2 stacking/QSFP28 1 unpopulated VIM slot MACsec capable includes 3 fan modules 2 unpopulated modular PSU slots.

Specifications

Product Overview
Product Type Managed Layer 3 Ethernet Switch
Model 5520-48T
Form Factor 1U Rack-mountable
Operating System EXOS or VOSS via Universal Hardware Platform
Weight 5.76 kg
Power Requirements 100-240 VAC
Max Power Consumption 171 Watt
Typical Power Consumption 60 Watt
Power Supply Type Dual hot-swappable modular PSU slots (unpopulated)
Cooling 3 pre-installed fan modules

Physical & Environmental
Dimensions (W x D x H) 44.2 x 44.2 x 4.4 cm
Rack Units 1U
Operating Temperature 0°C to 50°C
Storage Temperature -40°C to 70°C
Operating Humidity 10% to 95% non-condensing
Altitude Up to 3,050 m (10,000 ft)
Acoustic Noise 49.7 dB (typical)
Heat Dissipation 584.0 BTU/hr (maximum)

Cloud Management & Licensing
Cloud Management Platform ExtremeCloud IQ
Subscription Type ExtremeCloud IQ Pilot
Subscription Term 1 year included
Management Options Web GUI, CLI, SNMP, REST API, cloud-based
Zero-Touch Provisioning Yes

Interfaces
10/100/1000BASE-T Ports 48 RJ-45
QSFP28 Ports 2 for uplink/stacking
Modular Expansion Slot 1 unpopulated VIM slot for additional uplink options
Stacking Support Yes (via QSFP28 ports)
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet
Throughput Up to 880 Gbps switching capacity
Forwarding Rate Up to 654 Mpps

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL/CSA 60950-1, EN 60950-1, IEC 60950-1, CE, FCC Part 15 Class A, ICES-003 Class A
RoHS Compliance Yes
WEEE Compliance Yes

Advanced Security Features
MACsec Encryption Supported on all 48 ports
Access Control Lists (ACLs) Ingress and egress ACL support
IEEE 802.1X Port-Based Network Access Control Yes
DHCP Snooping Yes
Dynamic ARP Inspection Yes
IP Source Guard Yes
Secure Management HTTPS, SSHv2, SNMPv3
