| Product Type | Managed Layer 3 Multi‑Gigabit Ethernet Switch |
| Form Factor | 1U Rack‑mountable |
| Model | 5720-24MXW |
| Family | ExtremeSwitching 5720 Series |
| Power Requirements | AC 100–240 V, 50/60 Hz |
| Max Power Consumption | 2576 Watt |
| Redundant Power Supply Support | Yes, dual modular PSU slots (unpopulated) |
| Fans Included | Yes, includes field-replaceable fan modules |
| Switching Capacity | 880 Gbps |
| Forwarding Rate | 654 Mpps |
ExtremeSwitching 5720 24-Port Multi-Gigabit 90W PoE Switch

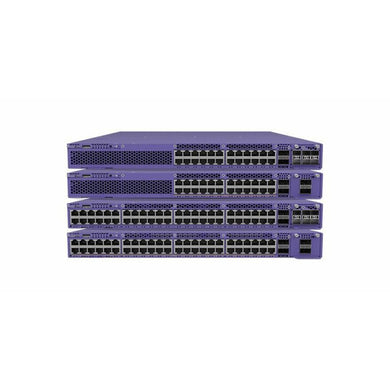

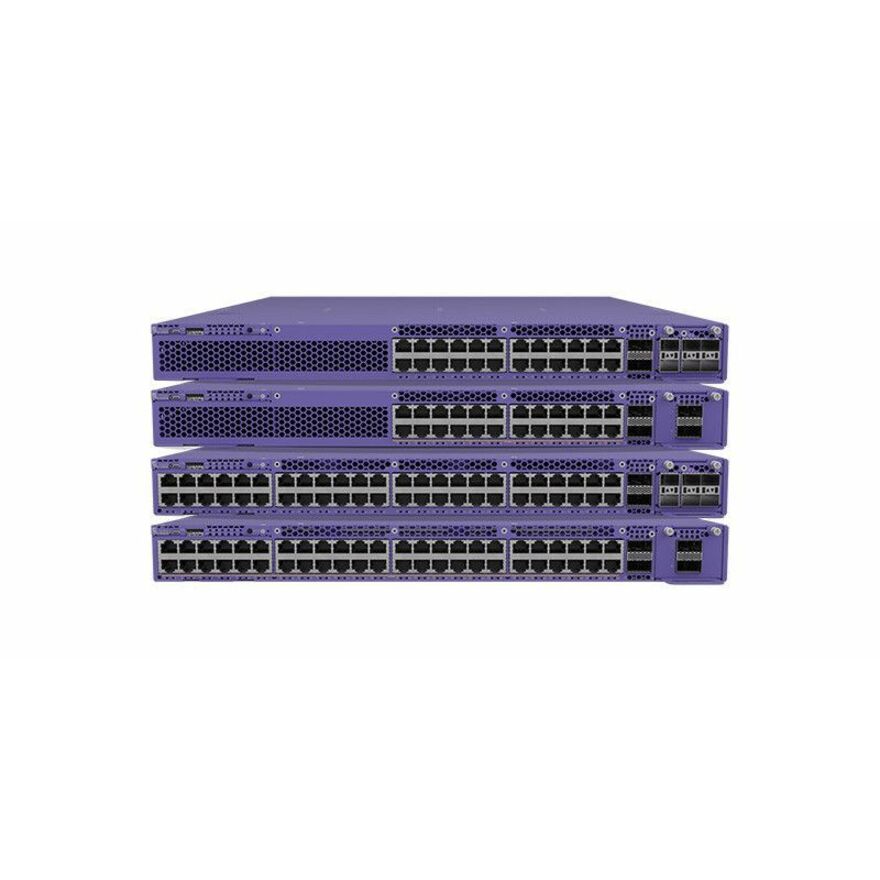

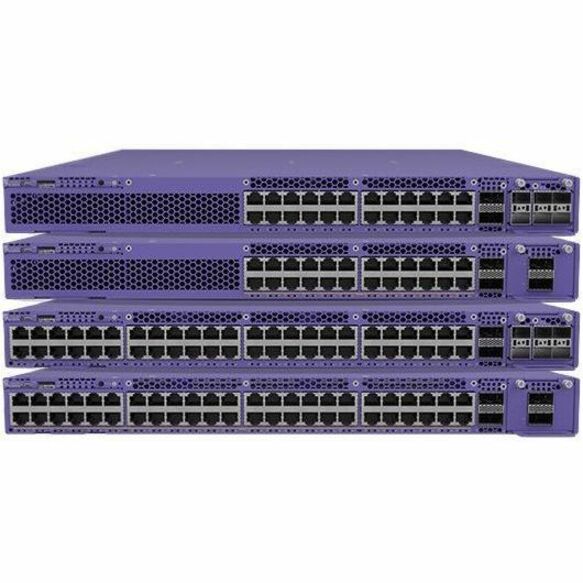

Photo is for illustration purposes only. Actual product may be different.
Regular price
$15,977.34
Regular price
Sale price
$15,977.34
Unit price
per
MSRP: $22,995.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 24 100M/1G/2.5G/5G/10GBase-T ports with 802.3bt 90W PoE support
- 2 unpopulated QSFP28 stacking/uplink ports
- MACsec encryption capability for secure link-level communication
- Modular design with 1 unpopulated VIM slot and 2 unpopulated PSU bays
- Comprehensive management interfaces: RJ-45 console, out-of-band Ethernet port, USB
- TAA compliant and includes 1-year ExtremeCloud™ IQ Pilot cloud subscription
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Supports 90W PoE on all ports, enabling deployment of high-power PoE devices without extra cabling
- Scalable and secure with stacking capability, MACsec support, and VIM slot for interface expansion
- Comes with a 1-year ExtremeCloud™ IQ Pilot subscription, offering enhanced cloud-based management and visibility
Product Overview
ExtremeSwitching 5720 24 100Mb/1Gb/2.5Gb/5Gb/10Gb 802.3bt 90W PoE 2 stacking/QSFP28 1 unpopulated VIM slot MACsec capable includes fan modules 2 unpopulated modular PSU slots.Specifications
Product Overview
Wireless Features
| Wireless Capability |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Regulatory Compliance | FCC Class A, UL/cUL, CE, VCCI, C-Tick, BSMI |
| Certifications | RoHS, WEEE, REACH, UL 62368-1, IEC 62368-1 |
Advanced Security Features
| MACsec Encryption | Yes (IEEE 802.1AE) |
| Access Control | 802.1X, MAC-based authentication |
| Control Plane Protection | Yes |
| Network Access Control | Integration with ExtremeControl NAC |
| Secure Management | HTTPS, SSH, SNMPv3 |
Interfaces
| Total Ports | 24 x 100M/1G/2.5G/5G/10GBase-T PoE+ ports |
| Uplink Ports | 2 x QSFP28 (unpopulated) |
| Stacking Ports | 2 x 100GbE QSFP28 (shared with uplinks) |
| Out-of-Band Management Port | 1 x 10/100/1000Base-T RJ-45 |
| Console Port | 1 x RJ-45 serial console port |
| USB Port | 1 x USB Type-A |
| Port Speeds Supported | 100 Mbps / 1 Gbps / 2.5 Gbps / 5 Gbps / 10 Gbps |
| PoE Standard | IEEE 802.3bt Type 4 (90W) |
| PoE Budget | Up to 2000W (with dual PSUs) |
Physical & Environmental
| Width | 17.53 in (445.2 mm) |
| Depth | 20.7 in (526 mm) |
| Height | 1.7 in (43.6 mm) |
| Weight | Approximately 19.8 lbs (9 kg) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 95% non-condensing |
| Acoustic Noise | ≤ 62 dB |
Cloud Management & Licensing
| Cloud Management | ExtremeCloud™ IQ (XIQ) support |
| Local Management | Web UI, CLI, SNMP, REST API |
| License Included | 1-year ExtremeCloud IQ Pilot Subscription |
| Stacking Support | Yes, up to 8 units |
| Modular Expansion | 1 unpopulated VIM slot for modular uplinks |
