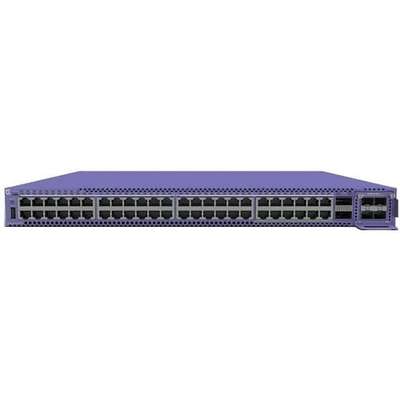

ExtremeSwitching 5720-48MW Multi-Gigabit PoE Switch

VENDOR: EXTREME NETWORK INC Mfg Part#: 5720-48MW UPC#: 644728054510
1 4
Photo is for illustration purposes only. Actual product may be different.
$13,892.89
$13,892.89
Sale Sold out
MSRP: $19,995.00
Shipping calculated at checkout.
  • 48-port multi-gigabit wired switch supporting 100Mb, 1Gb, 2.5Gb, and 5Gb speeds
  • Delivers 90W 802.3bt PoE for high-powered devices like access points and cameras
  • Two stacking/QSFP28 ports enable scalable uplink and backbone connections
  • Includes fan modules for thermal management; power modules are modular and unpopulated
  • MACsec encryption provides hardware-based network security
  • TAA-compliant and manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports a wide range of Ethernet speeds and high PoE wattage, ideal for diverse enterprise infrastructures
  • Futureproof with modular PSU bays and versatile VIM slot, enabling scalable network design
  • MACsec support and TAA compliance make it suitable for secure and regulated environments

Product Overview

ExtremeSwitching 5720 48 100Mb/1Gb/2.5Gb/5Gb 802.3bt 90W PoE 2 stacking/QSFP28 1 unpopulated VIM slot MACsec capable includes fan modules 2 unpopulated modular PSU slots.

Specifications

Product Overview
Product Type Managed Multi-Gigabit Ethernet Switch
Model ExtremeSwitching 5720-48MW
Form Factor 1U Rack-mountable
Rack Units 1U
Weight 14.1 lbs (6.4 kg)
Power Supply Dual Modular PSU Slots (PSUs sold separately)
Power Consumption Up to 1600W with PoE devices
Fan Modules Redundant, hot-swappable fan trays included
PoE Capability IEEE 802.3bt 90W PoE++

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL, CE, FCC Class A, RoHS, WEEE
EMC Standards EN 55032 Class A, EN 55024
Safety Compliance UL 60950-1, IEC 60950-1, EN 60950-1

Advanced Security Features
Access Control 802.1X, MAC-based authentication
Port Security Yes
DHCP Snooping Yes
MACsec Encryption IEEE 802.1AE supported on all ports
Dynamic ARP Inspection Yes
IP Source Guard Yes

Interfaces
Total Ethernet Ports 48
Ethernet Port Speeds 100Mb/1Gb/2.5Gb/5Gb Ethernet
Uplink/Stacking Ports 2 x QSFP28 (100Gb) ports
Virtual Interface Module (VIM) Slot 1 unpopulated VIM slot for expansion
Management Ports 1 x RJ-45 Serial Console, 1 x USB Type-A, 1 x Out-of-Band Ethernet
PoE Ports 48 PoE-enabled ports supporting 802.3af/at/bt
Maximum PoE Budget 1440W (requires 2 PSUs)
MACsec Support Yes
Switching Capacity 960 Gbps
Forwarding Rate 714 Mpps

Physical & Environmental
Dimensions (W x D x H) 17.3 x 20.2 x 1.7 in (440 x 513.4 x 43.6 mm)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% (non-condensing)
Altitude Up to 3,048 m (10,000 ft)
Acoustic Noise Maximum 60 dB
Cooling Front-to-back or back-to-front airflow

Cloud Management & Licensing
Cloud Management ExtremeCloud IQ capable
Management Interface Web GUI, CLI, SNMP v1/v2c/v3, RESTful API
License Requirements Requires subscription for ExtremeCloud IQ
Zero Touch Provisioning Supported
Included Software Features Quality of Service, VLAN, IGMP Snooping, Link Aggregation
