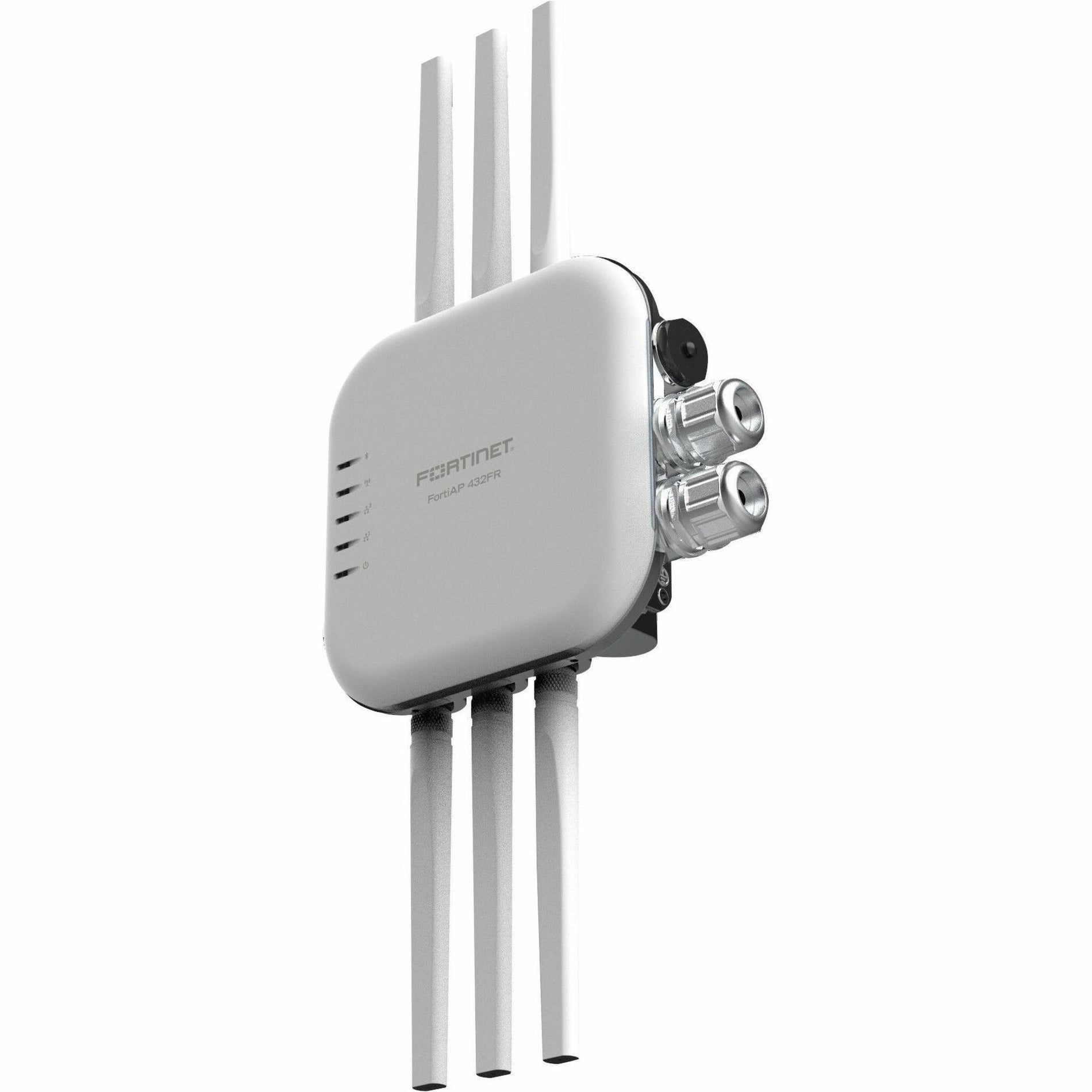

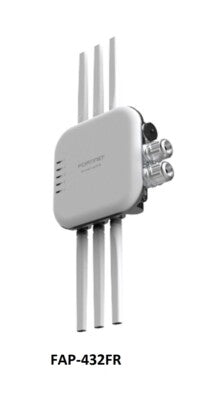

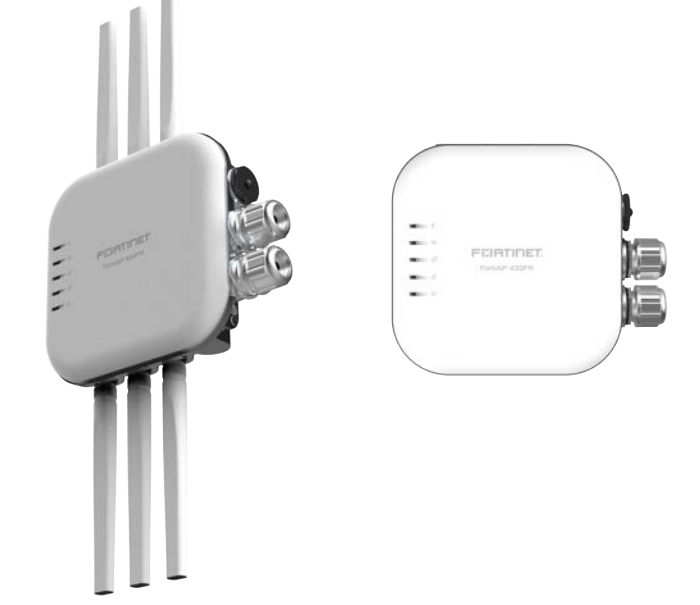

FORTINET FAP-432FR-A Outdoor Tri-Radio Wireless Access Point

VENDOR: FORTINET Mfg Part#: FAP-432FR-A UPC#: 195875218633
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,477.78
$1,477.78
Sale Sold out
MSRP: $2,010.00
Shipping calculated at checkout.
  • Tri-radio configuration: 1x 802.11b/g/n/ax (4x4), 1x 802.11a/n/ac/ax (4x4), 1x 802.11a/b/g/n/ac Wave 2 (2x2)
  • UL Class 1, Division 2 certification for hazardous environments
  • Dual Ethernet ports: 1x 10/100/1000/2500 Base-T, 1x 10/100/1000 Base-T
  • Support for Bluetooth/BLE, Zigbee, Type A USB, and RS-232 RJ45 serial interface
  • External dual-band N-type omni-directional antennas
  • Wall and pole mounting kit included for outdoor deployment

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for hazardous industrial settings with UL Class 1, Division 2 compliance, making it ideal for oil, gas, and chemical plants
  • Multi-standard tri-radio design enhances performance and connectivity for modern enterprise demands
  • Rich interface options including BLE/Zigbee, USB, and RS-232 increase integration with IoT and legacy systems

Product Overview

FORTIAP-432FR UL CLASS 1, DIVISION 2 .OUTDOOR WIRELESS FORTIAP - TRI RADIO (1X 802.11B/G/N/AX 4X4 RADIO, 1 X 802.11A/N/AC/AX 4X4 RADIO AND 1X 802.11 A/B/G/N/AC WAVE 2, 2X2), 1X 10/100/1000/2500 BASE-T RJ45, 1X 10/100/1000 BASE-T RJ45, BT/BLE + ZIGBEE, 1X TYPE A USB, 1X RS-232 RJ45 SERIAL PORT. EXTERNAL DUAL BAND N-TYPE OMNI DIRECTIONAL ANTENNAS, INTEGRATED MOUNTING BRACKET FOR ANTENNA INCLUDED + WALL/POLE MOUNT MOUNTING KIT. FOR POWER ORDER: 802.3AT POE INJECTOR GPI-130 OR AC ADAPTER SP-FAP400-PA. REGION CODE A

Specifications

Product Overview
Product Type Outdoor Tri-Radio Wireless Access Point
Model FAP-432FR-A
Form Factor Outdoor, Wall/Pole Mountable
Weight 2.75 kg (6.06 lbs)
Power Requirements 802.3at PoE or Optional AC Adapter (SP-FAP400-PA)
Maximum Power Consumption 25.5 W
Enclosure IP67-rated Weatherproof Casing
Mounting Options Integrated bracket for antenna, wall/pole mounting kit included

Wireless Features
Radios 3 Total Radios
Radio 1 1x 4x4 MU-MIMO 802.11b/g/n/ax
Radio 2 1x 4x4 MU-MIMO 802.11a/n/ac/ax
Radio 3 1x 2x2 MU-MIMO 802.11a/b/g/n/ac (Wave 2)
Wi-Fi Standards 802.11a/b/g/n/ac/ax
MU-MIMO Support Yes
Wi-Fi Frequencies 2.4 GHz, 5 GHz
Bluetooth Low Energy (BLE) Yes
ZigBee Support Yes
Antenna Type External Omnidirectional Dual-Band N-Type
Maximum Data Rate Up to 3.5 Gbps aggregate

Compliance & Origin
Country of Origin Taiwan
Certifications FCC, CE, UL, IC, ANSI/ISA 12.12.01
RoHS Compliant Yes
WEEE Compliance Yes

Advanced Security Features
Wireless IDS/IPS Yes
Rogue AP Detection Yes
WPA3 Support Yes
Integrated Firewall Features Yes, via FortiGate Integration
Application Control Yes, via Fortinet Security Fabric
Malware Protection Yes, via FortiGuard Services

Interfaces
Ethernet Ports 2x RJ45 (1x 10/100/1000/2500 Mbps, 1x 10/100/1000 Mbps)
Serial Console Port 1x RS-232 (RJ45)
USB Ports 1x USB Type-A
PoE Input 802.3at PoE via 2.5G Ethernet port
Bluetooth/ZigBee Support Yes, BT/BLE and ZigBee integrated
Antenna Connectors External N-Type Dual-Band Antennas

Physical & Environmental
Dimensions 260 × 220 × 65 mm (10.24 × 8.66 × 2.56 in)
Ingress Protection IP67
Operating Temperature -40°C to +65°C (-40°F to +149°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Operating Humidity 5% to 95% non-condensing
Hazardous Environment Rating UL Class 1 Division 2

Cloud Management & Licensing
Cloud Management Managed via FortiCloud or FortiGate Controller
Zero Touch Deployment Yes, with FortiCloud
Integrated Controller Support FortiGate Wireless LAN Controller
Licensing Model Subscription-based for cloud services and support
