FORTINET FAP-432FR-D Outdoor Wireless Access Point

VENDOR: FORTINET Mfg Part#: FAP-432FR-D
1 3

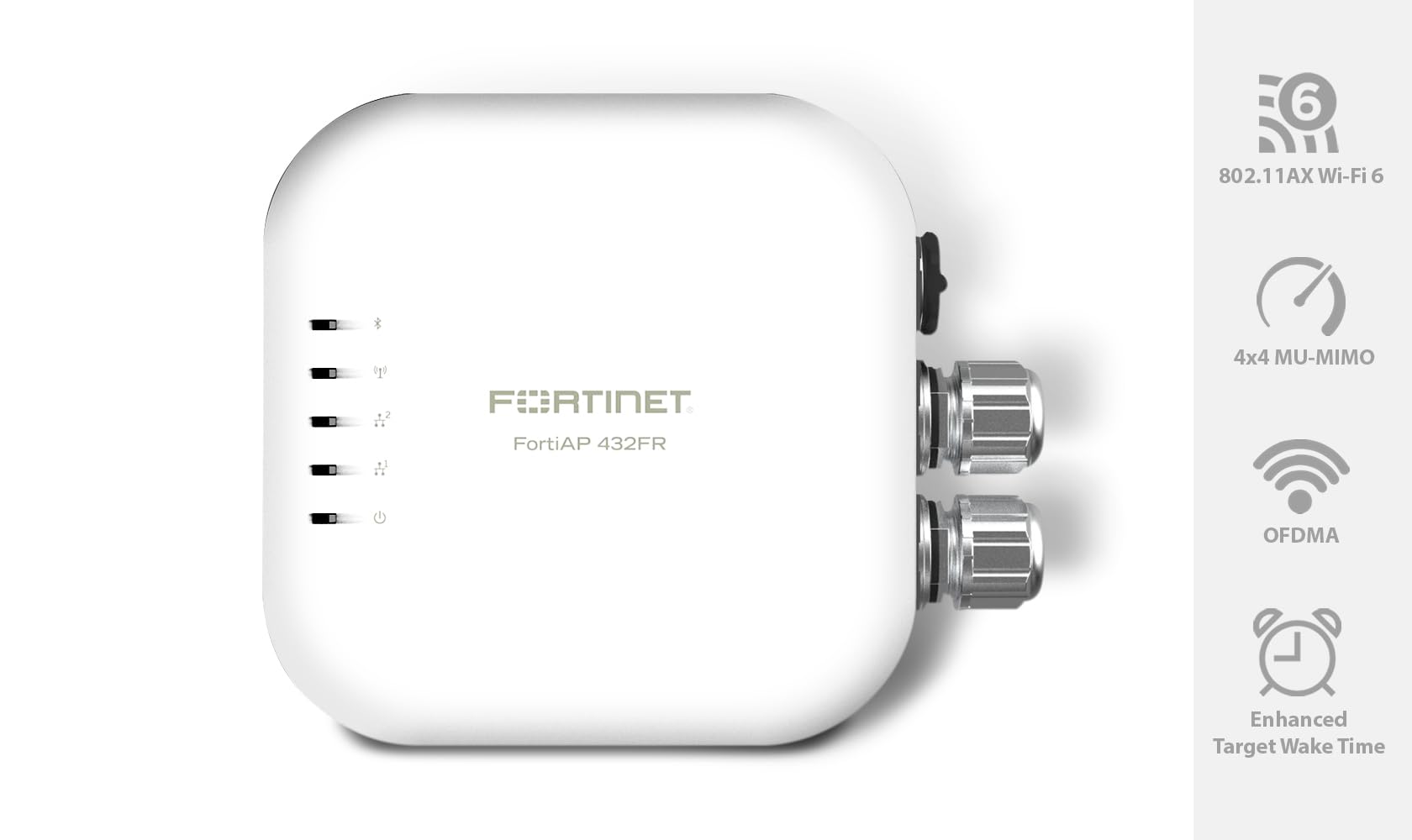

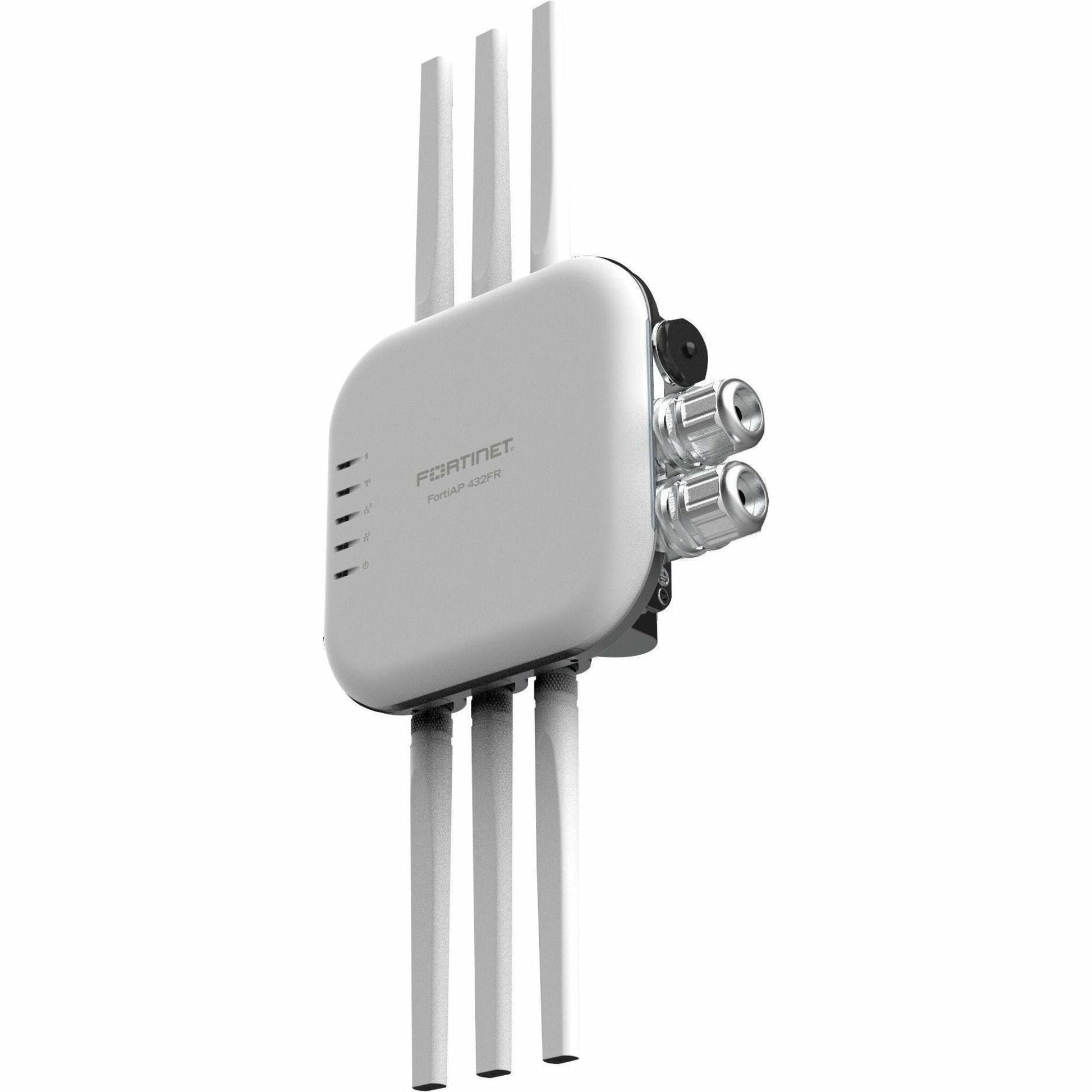

Photo is for illustration purposes only. Actual product may be different.
$1,473.13
$1,473.13
Sale Sold out
MSRP: $2,010.00
Shipping calculated at checkout.
  • Tri-radio configuration: 1x 802.11b/g/n/ax 4x4, 1x 802.11a/n/ac/ax 4x4, 1x 802.11a/b/g/n/ac Wave 2 2x2
  • UL Class 1, Division 2 certified for hazardous environments
  • Dual Ethernet ports, including 1x 2.5GBase-T and 1x Gigabit RJ45
  • Integrated Bluetooth/BLE and Zigbee wireless protocols for IoT support
  • 1x USB Type A and 1x RS-232 RJ45 serial for flexible I/O
  • Includes external dual band N-type antennas and wall/pole mount kit

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for industrial-grade environments with UL Class 1, Division 2 certification, ensuring safety and resilience.
  • Tri-radio Wi-Fi architecture supports high-capacity, high-density environments with multi-band, multi-device optimization.
  • Built-in support for Bluetooth/BLE and Zigbee extends functionality for modern IoT applications with no extra gateways required.

Product Overview

FORTIAP-432FR UL CLASS 1, DIVISION 2 .OUTDOOR WIRELESS FORTIAP - TRI RADIO (1X 802.11B/G/N/AX 4X4 RADIO, 1 X 802.11A/N/AC/AX 4X4 RADIO AND 1X 802.11 A/B/G/N/AC WAVE 2, 2X2), 1X 10/100/1000/2500 BASE-T RJ45, 1X 10/100/1000 BASE-T RJ45, BT/BLE + ZIGBEE, 1X TYPE A USB, 1X RS-232 RJ45 SERIAL PORT. EXTERNAL DUAL BAND N-TYPE OMNI DIRECTIONAL ANTENNAS, INTEGRATED MOUNTING BRACKET FOR ANTENNA INCLUDED + WALL/POLE MOUNT MOUNTING KIT. FOR POWER ORDER: 802.3AT POE INJECTOR GPI-130 OR AC ADAPTER SP-FAP400-PA. REGION CODE D

Specifications

Product Overview
Product Type Wireless Access Point
Model FAP-432FR-D
Form Factor Outdoor, Ruggedized
Mounting Options Wall/Pole Mount with Integrated Bracket
Power Requirements 802.3at PoE or Optional AC Adapter (SP-FAP400-PA)
Weight 2.5 kg (5.51 lbs)
Power Consumption (Max) 25.5 W
Enclosure IP67 Rated Outdoor Housing

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Radio Configuration Tri-Radio
Radio 1 4x4 MIMO 802.11b/g/n/ax (2.4 GHz)
Radio 2 4x4 MIMO 802.11a/n/ac/ax (5 GHz)
Radio 3 2x2 MIMO 802.11a/b/g/n/ac Wave 2 (Dual Band)
Maximum Data Rate Up to 5.9 Gbps Aggregated
MIMO Support Yes, 4x4 and 2x2 MIMO per radio
MU-MIMO Support Yes
OFDMA Support Yes
Beamforming Supported
Mesh Networking Supported (Fortinet Controller Mode)

Compliance & Origin
Country of Origin Taiwan
Hazardous Location Certification UL Class 1 Division 2
RoHS Compliance Yes
Certifications FCC, CE, IC, RCM, VCCI, BSMI

Advanced Security Features
Firewall Integration Seamless integration with FortiGate NGFW
Rogue AP Detection Yes
WIDS/WIPS Yes (Wireless Intrusion Detection and Prevention)
802.1X Authentication Yes
MAC Filtering Yes
Virtual AP Support Yes

Interfaces
Ethernet Ports 1x 10/100/1000/2500BASE-T, 1x 10/100/1000BASE-T RJ45
USB Ports 1x USB Type A
Console Port 1x RS-232 RJ45 Serial Console
Bluetooth Bluetooth Low Energy (BLE)
ZigBee Integrated ZigBee Radio for IoT
Antenna Connectors 6x N-Type External Omni-Directional Antennas

Physical & Environmental
Dimensions (W x H x D) 290 x 224 x 90 mm (11.42 x 8.82 x 3.54 in)
Operating Temperature -40°C to 65°C (-40°F to 149°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity (Operating) 5% to 95% non-condensing
Ingress Protection Rating IP67
Vibration Resistance IEC60068-2-64
Shock Resistance IEC60068-2-27
Flame Rating UL2043 Plenum Rated

Cloud Management & Licensing
Management Interface FortiCloud, FortiWLC, FortiGate Controller
Zero Touch Deployment Supported via FortiCloud
Licensing Requirements Fortinet subscription/license required for advanced security & management features
Cloud-Based Management Supported via FortiCloud
