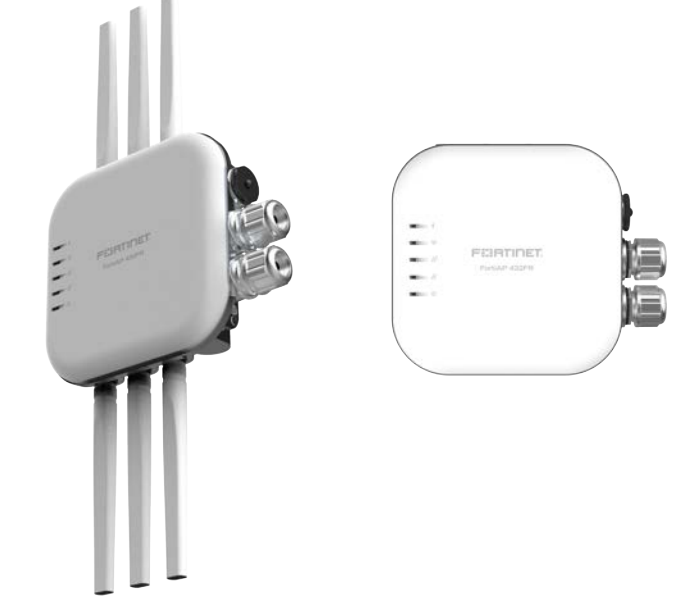

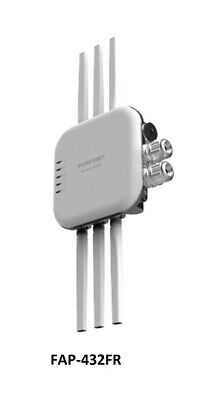

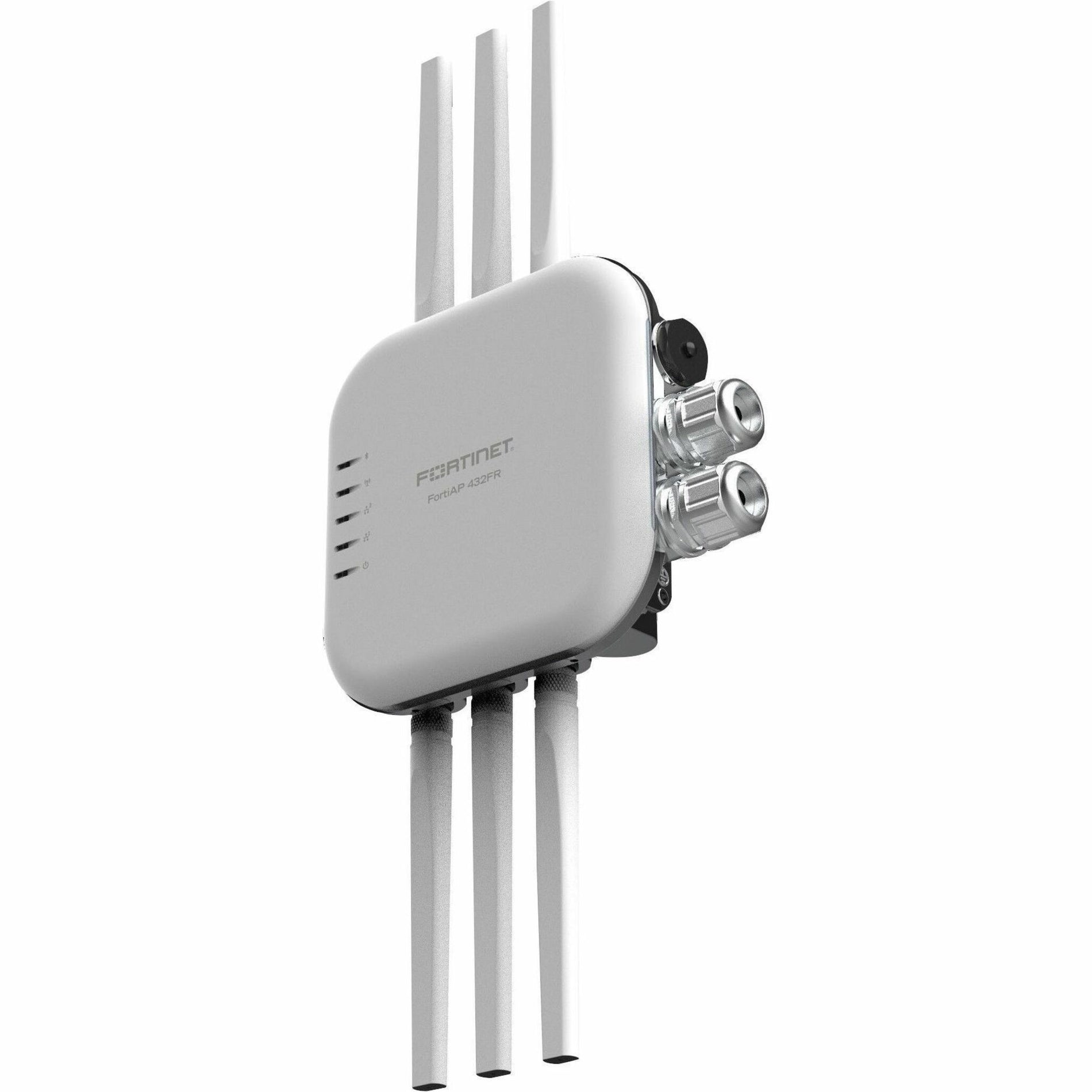

FORTINET FAP-432FR-I Tri-Radio Outdoor Wireless Access Point

VENDOR: FORTINET Mfg Part#: FAP-432FR-I
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,473.13
$1,473.13
Sale Sold out
MSRP: $2,010.00
Shipping calculated at checkout.
  • Tri-radio support: 1x 4x4 802.11b/g/n/ax, 1x 4x4 802.11a/n/ac/ax, 1x 2x2 802.11a/b/g/n/ac Wave 2
  • UL Class 1, Division 2 certified for operation in hazardous environments
  • Integrated Bluetooth/BLE and Zigbee for IoT device communication
  • Dual Ethernet ports: 1x 10/100/1000/2500 Base-T, 1x 10/100/1000 Base-T
  • Includes external dual-band omni-directional N-type antennas and mounting kits
  • Connectivity includes USB Type-A and RS-232 RJ45 serial port

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for industrial-grade deployment in environments requiring UL Class 1, Division 2 compliance
  • Tri-radio design enables flexible, high-capacity wireless performance across multiple frequency bands
  • Integrated mounting hardware and PoE or AC power options reduce installation complexity and cost

Product Overview

FORTIAP-432FR UL CLASS 1, DIVISION 2 .OUTDOOR WIRELESS FORTIAP - TRI RADIO (1X 802.11B/G/N/AX 4X4 RADIO, 1 X 802.11A/N/AC/AX 4X4 RADIO AND 1X 802.11 A/B/G/N/AC WAVE 2, 2X2), 1X 10/100/1000/2500 BASE-T RJ45, 1X 10/100/1000 BASE-T RJ45, BT/BLE + ZIGBEE, 1X TYPE A USB, 1X RS-232 RJ45 SERIAL PORT. EXTERNAL DUAL BAND N-TYPE OMNI DIRECTIONAL ANTENNAS, INTEGRATED MOUNTING BRACKET FOR ANTENNA INCLUDED + WALL/POLE MOUNT MOUNTING KIT. FOR POWER ORDER: 802.3AT POE INJECTOR GPI-130 OR AC ADAPTER SP-FAP400-PA. REGION CODE I

Specifications

Product Overview
Product Type Outdoor Wireless Access Point
Form Factor Wall or Pole Mountable
Radio Configuration Tri-Radio
Radio 1 1 x 802.11b/g/n/ax 4x4 MU-MIMO
Radio 2 1 x 802.11a/n/ac/ax 4x4 MU-MIMO
Radio 3 1 x 802.11a/b/g/n/ac Wave 2 2x2 MU-MIMO
Antenna Type External Dual Band N-Type Omni-directional Antennas
Mounting Integrated Antenna Bracket and Wall/Pole Mount Kit
Power Requirements 802.3at PoE Injector GPI-130 or AC Adapter SP-FAP400-PA

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax
MU-MIMO Support Yes, 4x4 and 2x2 MU-MIMO
Frequency Bands 2.4 GHz and 5 GHz
Mesh Network Support Yes
Band Steering Yes
Antenna Connectors N-Type (external)

Compliance & Origin
Country of Origin Taiwan
UL Certification UL Class 1, Division 2
Ingress Protection Rating IP67
RoHS Compliance Yes
Safety Certifications UL, CE, FCC, IC

Advanced Security Features
WLAN Security WPA3, WPA2-Enterprise, WPA-Personal
Rogue AP Detection Yes
Wireless Intrusion Detection System (WIDS) Yes
Wireless Intrusion Prevention System (WIPS) Yes
Integration with Fortinet Security Fabric Yes

Interfaces
Ethernet Ports 2 x RJ45
Port 1 1 x 10/100/1000/2500 Base-T RJ45
Port 2 1 x 10/100/1000 Base-T RJ45
USB Ports 1 x Type-A USB
Serial Ports 1 x RS-232 RJ45
Bluetooth Bluetooth Low Energy (BLE)
Zigbee Support Yes

Physical & Environmental
Enclosure Type Outdoor Hardened Enclosure
Mounting Options Wall and Pole Mount
Operating Temperature -40°C to 65°C (-40°F to 149°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Ingress Protection IP67 Rated Weatherproof Housing

Cloud Management & Licensing
Cloud Controller Compatibility FortiCloud
On-Prem Controller Compatibility FortiGate
Controller-less (Cloud-managed) Yes
Licensing Model Optional FortiCloud subscription or managed via FortiGate
