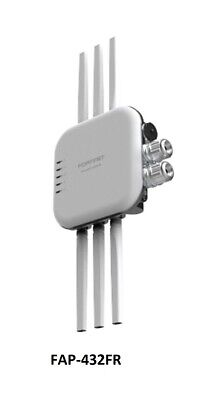

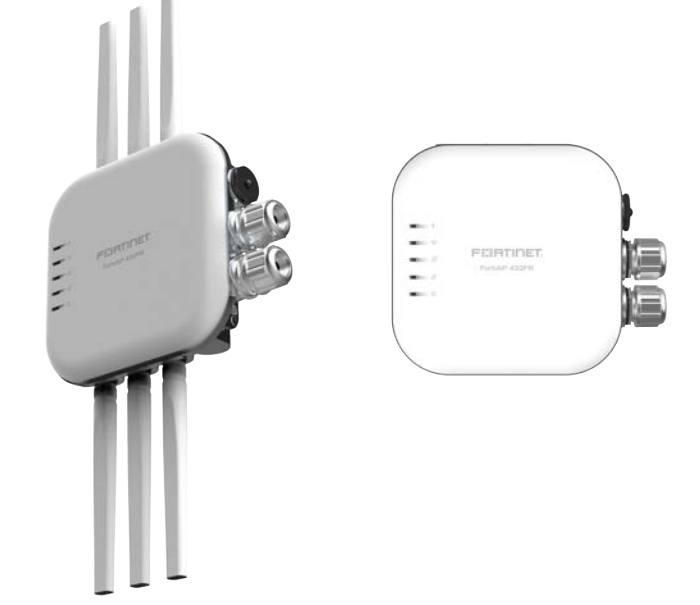

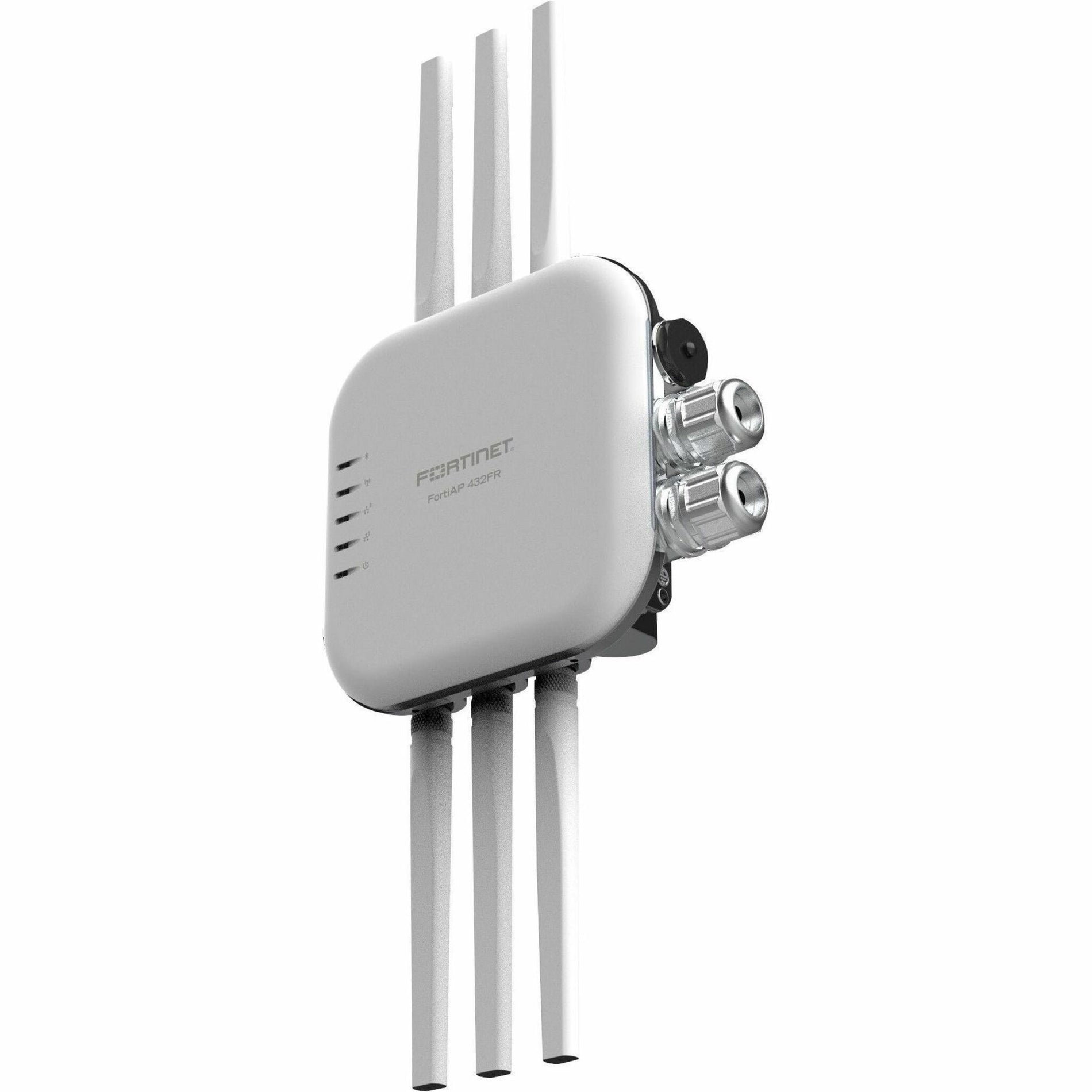

FORTINET FAP-432FR Outdoor Tri-Radio Wireless Access Point

VENDOR: FORTINET Mfg Part#: FAP-432FR-E
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,473.13
$1,473.13
Sale Sold out
MSRP: $2,010.00
Shipping calculated at checkout.
  • Tri-radio design: dual 4x4 and one 2x2 supporting multiple 802.11 standards
  • UL Class 1, Division 2 certified for hazardous environments
  • BT/BLE and Zigbee connectivity for IoT support
  • Dual Ethernet ports including one 2.5GBase-T RJ45
  • Includes wall/pole mount kit and integrated antenna bracket
  • N-type external omni-directional dual-band antennas

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for hazardous outdoor deployment with UL Class 1, Division 2 certification
  • Tri-radio architecture supports broad wireless compatibility and scalability
  • Integrated BT/BLE and Zigbee radios deliver added value for IoT applications

Product Overview

FORTIAP-432FR UL CLASS 1, DIVISION 2 .OUTDOOR WIRELESS FORTIAP - TRI RADIO (1X 802.11B/G/N/AX 4X4 RADIO, 1 X 802.11A/N/AC/AX 4X4 RADIO AND 1X 802.11 A/B/G/N/AC WAVE 2, 2X2), 1X 10/100/1000/2500 BASE-T RJ45, 1X 10/100/1000 BASE-T RJ45, BT/BLE + ZIGBEE, 1X TYPE A USB, 1X RS-232 RJ45 SERIAL PORT. EXTERNAL DUAL BAND N-TYPE OMNI DIRECTIONAL ANTENNAS, INTEGRATED MOUNTING BRACKET FOR ANTENNA INCLUDED + WALL/POLE MOUNT MOUNTING KIT. FOR POWER ORDER: 802.3AT POE INJECTOR GPI-130 OR AC ADAPTER SP-FAP400-PA. REGION CODE E

Specifications

Product Overview
Product Type Outdoor Wireless Access Point
Model FORTIAP-432FR
Form Factor Outdoor, Wall/Pole Mountable
Mounting Options Integrated mounting bracket for antenna, Wall and Pole Mount Kit included
Radio Configuration Tri-Radio (1x 4x4 2.4GHz, 1x 4x4 5GHz, 1x 2x2 dual band)
Maximum Power Consumption 25.5W
Power Options 802.3at PoE Injector (GPI-130) or AC Adapter (SP-FAP400-PA), sold separately
Weight 2.27 kg (5.0 lbs)

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax
Radio 1 4x4 MIMO, 802.11b/g/n/ax (2.4 GHz)
Radio 2 4x4 MIMO, 802.11a/n/ac/ax (5 GHz)
Radio 3 2x2 MIMO, 802.11a/b/g/n/ac (dual-band Wave 2)
Antenna Type External dual-band N-type omni-directional antennas
Frequency Bands 2.4 GHz and 5 GHz
Max Data Rate Up to 4.8 Gbps
Spatial Streams Up to 10 total (4+4+2)
MU-MIMO Support Yes, MU-MIMO with 802.11ax

Compliance & Origin
Country of Origin Taiwan
Certifications FCC, CE, UL, IC, RoHS, REACH, Wi-Fi Certified
Environmental Standards RoHS Compliant, REACH Compliant

Advanced Security Features
Wireless Intrusion Detection (WIDS) Supported
Wireless Intrusion Prevention (WIPS) Supported
Integrated Firewall Via FortiGate integration
Rogue AP Detection Yes
Client Device Fingerprinting Supported

Interfaces
Ethernet Ports 2 x RJ45 (1x 10/100/1000/2500 Mbps, 1x 10/100/1000 Mbps)
USB Ports 1 x USB Type-A
Serial Port 1 x RS-232 RJ45 serial console port
Bluetooth / BLE Yes, Bluetooth Low Energy supported
Zigbee Support Yes

Physical & Environmental
Dimensions 222 x 272 x 108 mm (8.7 x 10.7 x 4.3 in)
Operating Temperature -40°C to +65°C (-40°F to +149°F)
Humidity (non-condensing) 5% to 95% RH
Enclosure Rating IP67 (weatherproof and dustproof)
Hazardous Location Certification UL Class 1, Division 2

Cloud Management & Licensing
Management Interface FortiCloud, FortiGate, or FortiLAN Cloud
SDN Integration Supported via Fortinet Fabric Management Center
Licensing No license required for basic mode; advanced features via Fortinet subscription
Zero Touch Deployment Supported via FortiCloud
