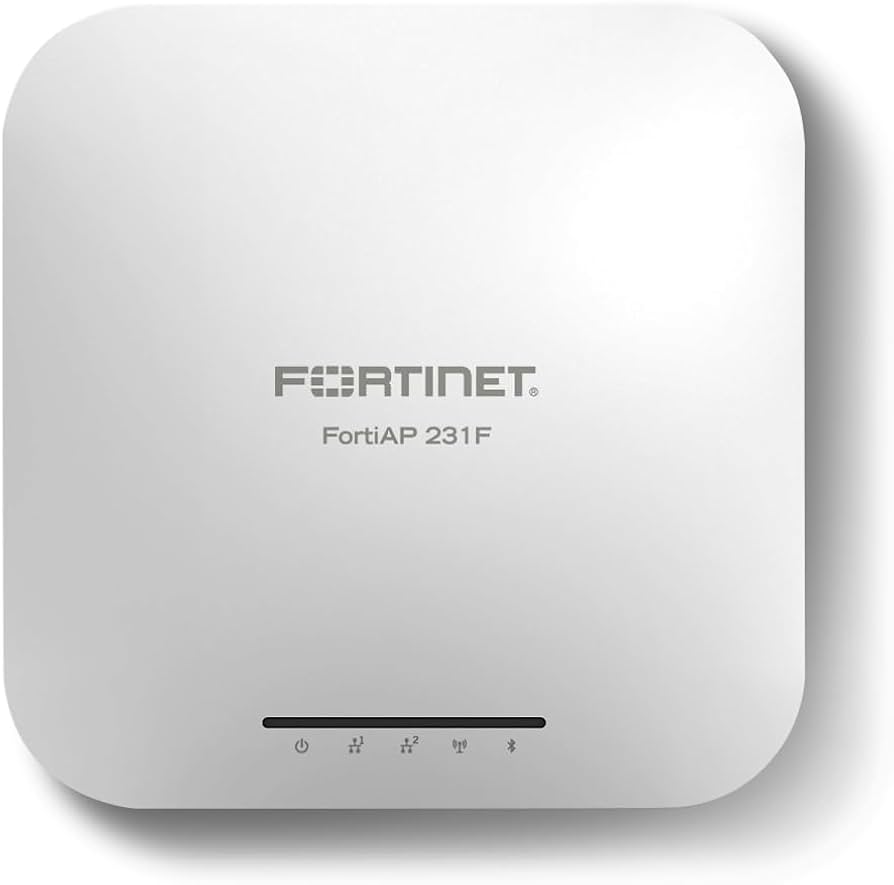

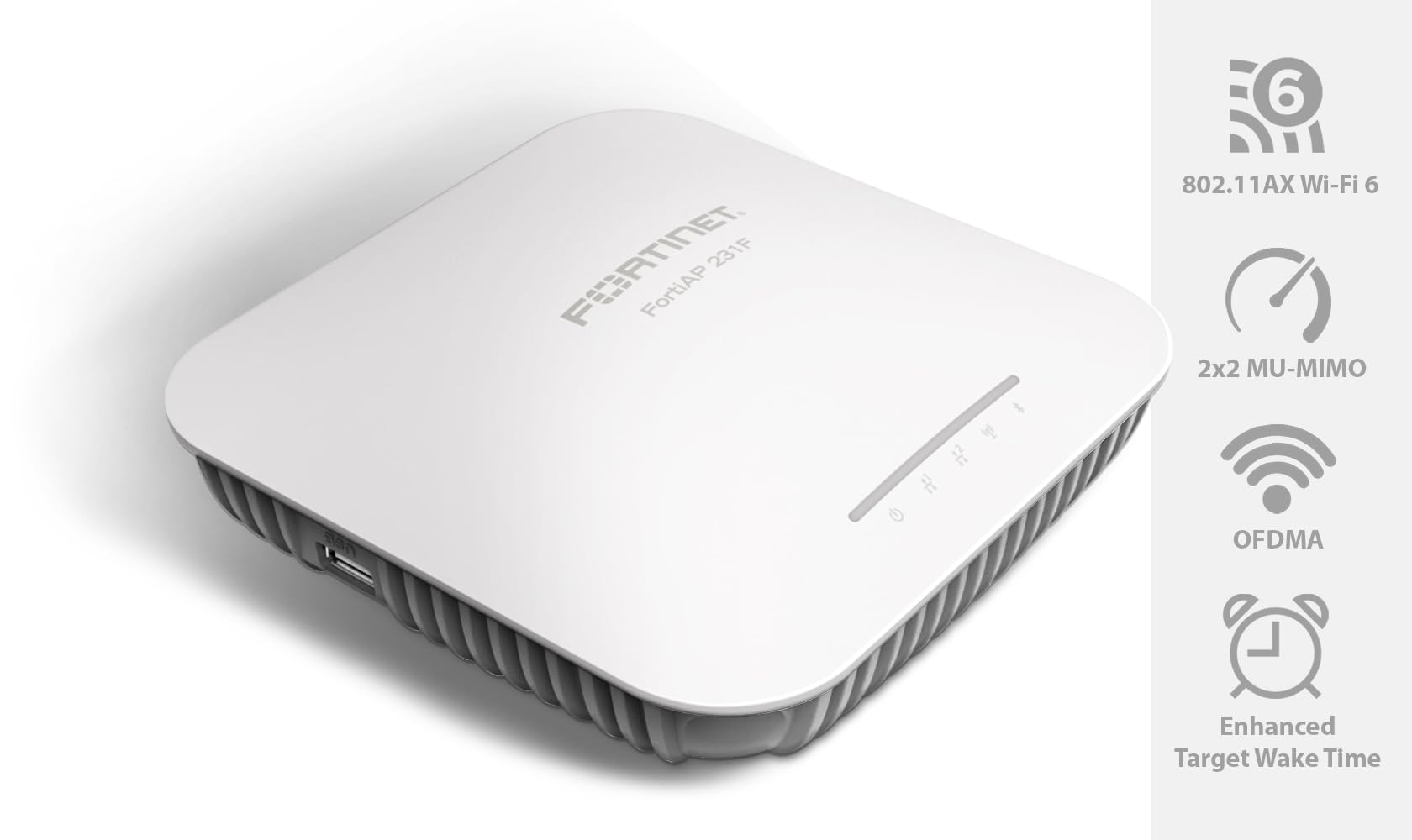

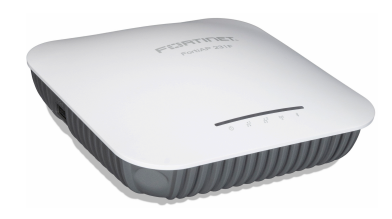

Fortinet FortiAP‑231F Indoor Wireless Access Point, Tri‑Radio, MU‑MIMO

VENDOR: FORTINET Mfg Part#: FAP-231F-T
1 3
Photo is for illustration purposes only. Actual product may be different.
$287.03
$287.03
Sale Sold out
MSRP: $390.00
Shipping calculated at checkout.
  • Tri-radio with support for 802.11 b/g/n/ax, a/n/ac/ax, and a/b/g/n/ac Wave 2
  • 2x2 MU-MIMO on two radios and 1x1 configuration on the third
  • Dual 10/100/1000 RJ45 gigabit Ethernet ports
  • Internal antennas for streamlined deployment
  • Integrated Bluetooth/BLE, USB Type-A port, and RS-232 RJ45 serial interface
  • Supports ceiling or wall mounting for flexible installation

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Tri-radio MU-MIMO architecture enables superior wireless performance in high-density environments
  • Extensive wired and wireless interface options support a wide range of deployment needs and device connectivity
  • TAA compliance and Taiwanese manufacturing make it suitable for government and regulated sector deployments

Product Overview

The Fortinet FortiAP-231F is an enterprise-grade tri-radio indoor wireless access point supporting advanced 802.11 wireless standards. It features two radios with 2x2 MU-MIMO support for 802.11 b/g/n/ax and a/n/ac/ax, plus a third radio for 802.11 a/b/g/n/ac Wave 2 in a compact 1x1 configuration. Internal antennas ensure a sleek form factor and reliable coverage. Connectivity is enhanced with two Gigabit Ethernet ports, Bluetooth Low Energy, a USB Type-A interface, and an RS-232 RJ45 serial port. With ceiling and wall mount options, and TAA compliance with manufacturing in Taiwan, it meets the needs of secure, high-traffic institutional deployments.

Specifications

Product Overview
Product Type Indoor Wireless Access Point
Wireless Radios Tri-Radio
Supported Wireless Standards 802.11a/b/g/n/ac/ax
MIMO Configuration 2x2 MU-MIMO (2 radios), 1x1 (3rd radio)
Antenna Type Internal antennas
Installation Options Ceiling and wall mount
Maximum Data Rate 3.0 Gbps
Processor ARM Cortex-A53 Quad-Core
Memory 512 MB RAM
Flash Memory 256 MB
Power Supply PoE 802.3af/at
Power Consumption (Maximum) 17.5 W
Weight 0.52 kg

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax
Wi-Fi 6 (802.11ax) Supported
Frequency Bands 2.4 GHz and 5 GHz
Max Transmit Power 20 dBm per radio
Spatial Streams 2 per main radio, 1 on third radio
Band Steering Supported
Client Load Balancing Supported
WIDS/WIPS Support Yes, with FortiWLC or FortiGate

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC, CE, IC, UL, Wi-Fi Certified 6
RoHS Compliant Yes

Advanced Security Features
Integrated Firewall Controlled via FortiGate access controller
Threat Protection Via FortiGate integration
Rogue AP Detection Supported
MAC Filtering Yes
Dynamic VLAN Assignment Supported

Interfaces
Ethernet Ports 2 x 10/100/1000 Mbps RJ45
USB Ports 1 x USB 2.0 Type-A
Console Port 1 x RJ45 (RS-232)
Bluetooth Bluetooth Low Energy (BLE)
Ethernet Port Type Auto-sensing, Auto-MDIX
PoE Input 1 port supports 802.3af/at

Physical & Environmental
Dimensions 41.3 x 193 x 193 mm (1.63 x 7.6 x 7.6 in)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Mounting Options Wall or ceiling mount bracket included

Cloud Management & Licensing
Management Options FortiGate, FortiCloud, FortiWLC
Zero-Touch Deployment Supported via FortiCloud
Licensing Model Subscription-based for FortiCloud features
