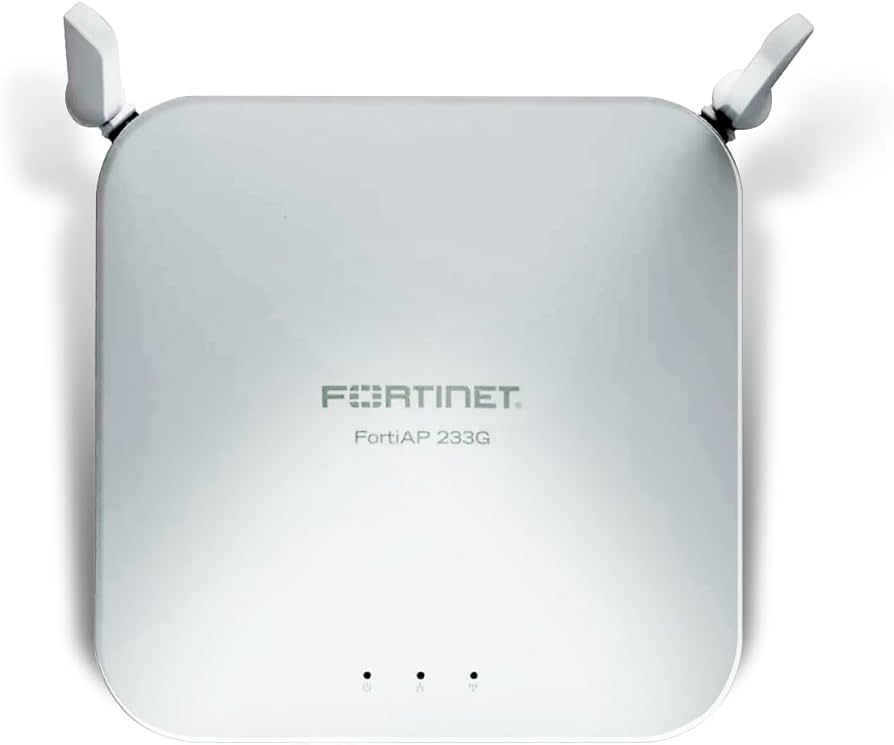

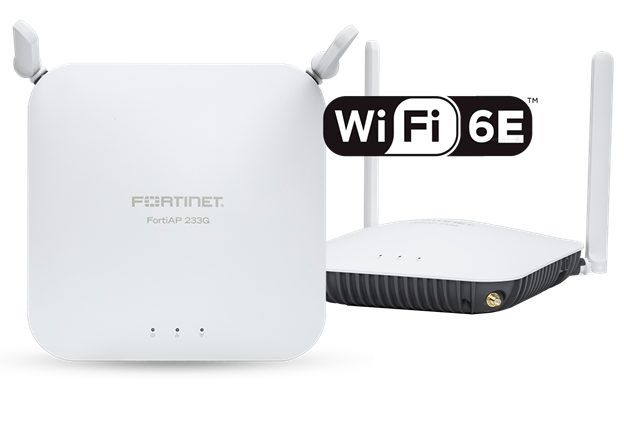

Fortinet FortiAP-233G Tri-Radio Wi-Fi 6E Access Point

VENDOR: FORTINET Mfg Part#: FAP-233G-F
1 3
Photo is for illustration purposes only. Actual product may be different.
$360.76
$360.76
Sale Sold out
MSRP: $490.00
Shipping calculated at checkout.
  • Tri-radio access point supporting 2.4 GHz, 5 GHz, and 6 GHz bands
  • 2x2 MIMO with omni antennas for broad coverage
  • Support for Wi-Fi standards 802.11a/b/g/n/ac
  • 1x 100/1000/2500 Base-T and 1x 10/100/1000 Base-T RJ45 ports
  • 802.3af/at PoE compliant for simplified installation
  • Includes USB 3.0 and RS-232 RJ45 Serial Port interfaces

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables next-generation Wi-Fi 6E performance with tri-band operation, ideal for high-density deployment
  • Offers flexible installation with multi-speed Ethernet, USB 3.0, and PoE support
  • Backed by a limited lifetime warranty, ensuring long-term use and ROI

Product Overview

The Fortinet FortiAP-233G is a tri-radio indoor wireless access point designed to deliver next-generation Wi-Fi 6E performance across enterprise environments. Supporting 2.4 GHz, 5 GHz, and 6 GHz operation (where approved), the FAP-233G enhances throughput and reduces interference. With 2x2 MIMO and omni-directional antennas, it offers wide, reliable wireless coverage.

This access point includes multi-speed Ethernet ports, a USB 3.0 interface, and an RS-232 serial port for diverse network connectivity. PoE via IEEE 802.3af/at simplifies installation in resource-limited areas. Compact yet powerful, it supports legacy and modern wireless standards, including 802.11a/b/g/n/ac.

Covered by a limited lifetime warranty and engineered for long-term operation in indoor settings, the FAP-233G is a reliable investment for high-density network environments. Note: Regional regulations may restrict 6GHz band usage.

Specifications

Product Overview
Type Wireless Access Point
Model FAP-233G
Form Factor Ceiling or Wall Mountable
Weight 0.96 lbs (436 g)
Power Requirements PoE (802.3af/at), DC power adaptor (optional)
Power Supply 802.3af/at PoE or optional external power adapter
Environment Indoor
Service & Support Type Limited Lifetime Warranty

Wireless Features
Wireless Technology Wi-Fi 6E (802.11ax)
Frequency Bands Supported 2.4 GHz, 5 GHz, 6 GHz
Radio Count Tri-Radio
MIMO Type 2x2 MIMO
Antenna Type Omni-directional Internal Antennas
802.11a Yes
802.11b Yes
802.11g Yes
802.11n Yes
802.11ac Yes
802.11ax (Wi-Fi 6E) Yes

Compliance & Origin
Country of Origin TAIWAN
Certifications FCC Part 15B, CE, UL, IC, RoHS
PoE Standards IEEE 802.3af/at

Advanced Security Features
WIDS/WIPS Support Yes
Integrated Firewall Features When managed by FortiGate
Role-Based Access Control Yes
Rogue AP Detection Yes
Wireless Client Isolation Yes
Application Visibility & Control Yes, via FortiGate

Interfaces
Networking / Ports Qty 4
Port 1 1x 100/1000/2500 Base-T RJ45 (Ethernet)
Port 2 1x 10/100/1000 Base-T RJ45 (Ethernet)
USB Port 1x USB 3.0 Type A
Serial Interface 1x RS-232 RJ45 Serial Port
Data Transfer Rate Up to 2.5 Gbps (Ethernet)
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
10/100BASE-T Ports 1
USB Ports 1

Physical & Environmental
Width 7.18 in (182.4 mm)
Depth 7.18 in (182.4 mm)
Height 2.12 in (53.8 mm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing

Cloud Management & Licensing
Management Interface FortiGate Wireless Controller, FortiLAN Cloud
Cloud Management Support Yes
Licensing Model No licensing required with FortiGate controller; subscription required for FortiLAN Cloud
