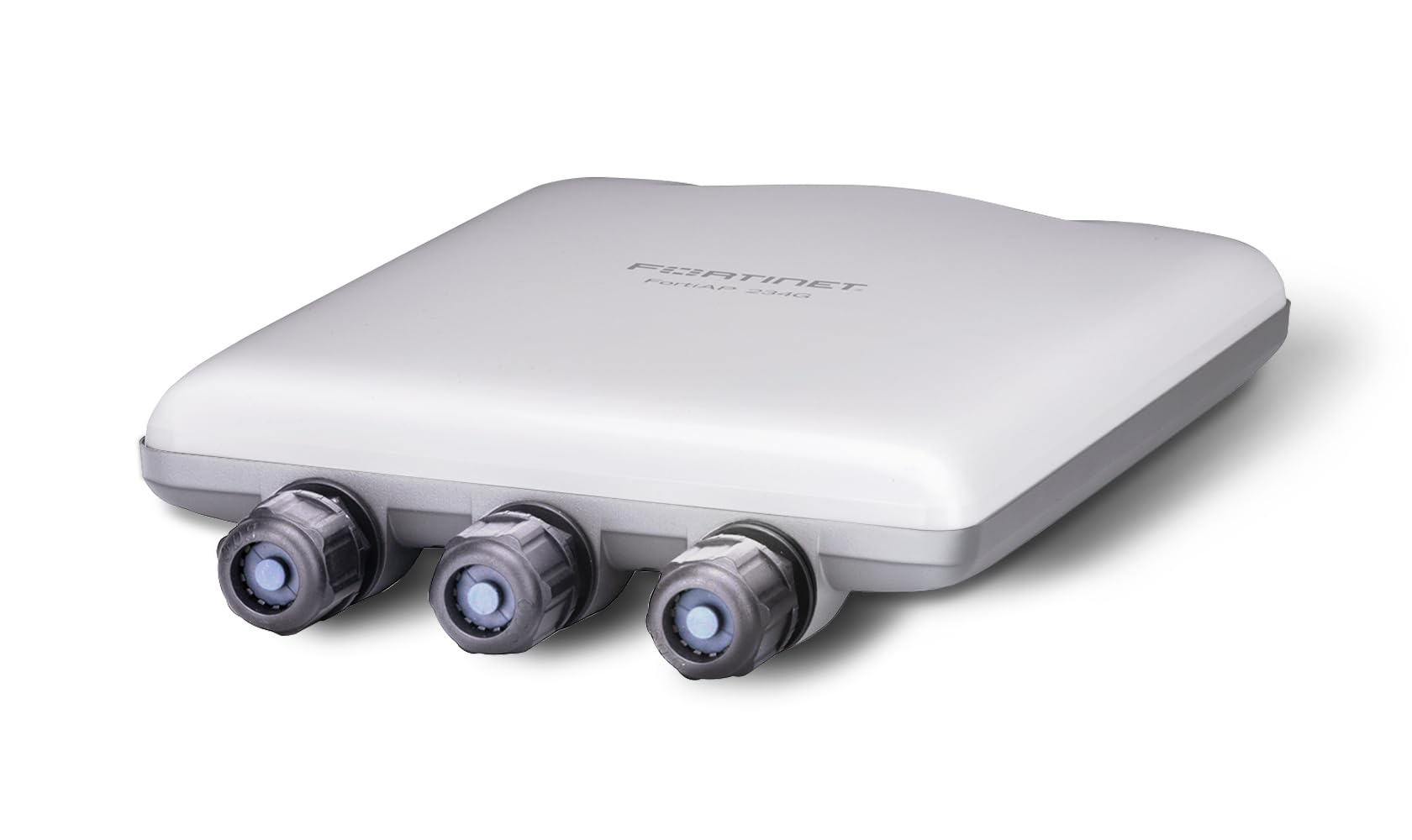

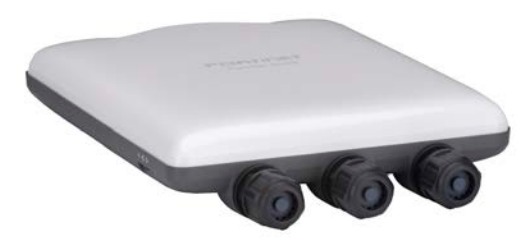

FORTINET FortiAP-234G Outdoor Tri-Radio Wi-Fi 6E Access Point

VENDOR: FORTINET Mfg Part#: FAP-234G-EO
1 3
Photo is for illustration purposes only. Actual product may be different.
$888.48
$888.48
Sale Sold out
MSRP: $1,200.00
Shipping calculated at checkout.
  • Tri-radio design with 2.4GHz, 5GHz, and 6GHz Wi-Fi 6E (802.11ax) support
  • Dual-stream 2x2 MU-MIMO for enhanced data throughput
  • Three RJ45 ports supporting up to 2.5Gbps Ethernet connectivity
  • Integrated internal antennas optimized for outdoor deployment
  • Bluetooth/BLE ready for IoT applications and extended control
  • Limited lifetime warranty ensuring long-term operational support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Tri-band Wi-Fi 6E support ensures future-ready connectivity in high-demand outdoor environments
  • Gigabit and 2.5GbE Ethernet ports provide scalable and fast backhaul options
  • RoHS-compliant and covered by a limited lifetime warranty, offering long-term value and sustainability

Product Overview

The Fortinet FortiAP-234G is a rugged, tri-radio outdoor wireless access point engineered to harness the power of Wi-Fi 6E (IEEE 802.11ax) technology. Offering simultaneous operation on 2.4GHz, 5GHz, and 6GHz bands, this device enables cutting-edge wireless performance for high-density deployments and latency-sensitive applications. Integrated with 2+2+2 stream capability and dual 2.5GbE RJ45 interfaces, it ensures optimal throughput and flexibility in outdoor networking scenarios. Its built-in antenna design simplifies installation while delivering wide coverage and signal fidelity.

Designed for enterprise and large-scale deployments, the FortiAP-234G supports advanced wireless protocols, including 802.11a/b/d and 2x2 MU-MIMO for maximized data efficiency. The device features a hardened enclosure suitable for outdoor use and includes Bluetooth/BLE capabilities for IoT integration and management. With a maximum power consumption of 28W and RoHS compliance, it balances energy efficiency with performance.

Combining efficient throughput, future-proof tri-band support, and advanced wireless features, the FortiAP-234G helps businesses extend high-speed Wi-Fi coverage in open or industrial environments. It includes a limited lifetime warranty, reinforcing Fortinet’s commitment to long-term network reliability and ROI.

Specifications

Product Overview
Type Outdoor Wireless Access Point
Model FortiAP 234G
Form Factor Wall or pole-mountable rugged outdoor enclosure
Power Requirements PoE+ (802.3at) or external 12V DC
Maximum Power Consumption 28 Watt
Service & Support Limited Lifetime Warranty
Technology Wi-Fi 6E (802.11ax)
Environment Outdoor

Wireless Features
Wi-Fi Standard 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Frequency Bands 2.4 GHz, 5 GHz, 6 GHz
Wireless Radios Tri-Radio
MIMO Configuration 2x2 MU-MIMO per radio (6 total spatial streams)
Antenna Type Integrated omnidirectional antennas
Bluetooth Support Bluetooth Low Energy (BLE)
RF Management Auto RF calibration and management
Max Clients per Radio >= 512 (estimated)
Concurrent SSIDs 16

Compliance & Origin
Country of Origin Taiwan
RoHS Compliance Yes
Certifications FCC Part 15, CE, IC, CB, UL/cUL, VCCI

Advanced Security Features
WIDS/WIPS Wireless Intrusion Detection and Prevention System
Authentication Methods 802.1X, WPA3-Enterprise, WPA2-PSK/Enterprise
Encryption Protocols AES, TKIP, WPA3
Rogue AP Detection Supported
Application Visibility & Control Yes, when managed by FortiGate
Firewall Integration Tightly integrated with FortiGate UTM firewall for Layer 7 security

Interfaces
Interface Types 2 x 2.5GbE RJ45, 1 x RJ45 console
Networking / Ports Quantity 3
Data Transfer Rate 2.5 Gbps per Ethernet port
Data Link Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, 802.3at (PoE+)
Transport Protocol Gigabit Ethernet
Connectivity Technology Wireless

Physical & Environmental
Width 8.50 in (216 mm)
Depth 10.15 in (258 mm)
Height 2.26 in (57.5 mm)
Enclosure Rating IP67-rated for outdoor protection
Mounting Options Wall and Pole mount kit included
Operating Temperature -40 to 65 °C (-40 to 149 °F)
Storage Temperature -40 to 85 °C (-40 to 185 °F)
Operating Humidity 5% to 95% non-condensing

Cloud Management & Licensing
Management Interface FortiCloud, FortiGate controller, or FortiAP Cloud
Licensing Model Subscription required for FortiGuard services and advanced features
Cloud-Based Management Supported via FortiCloud
