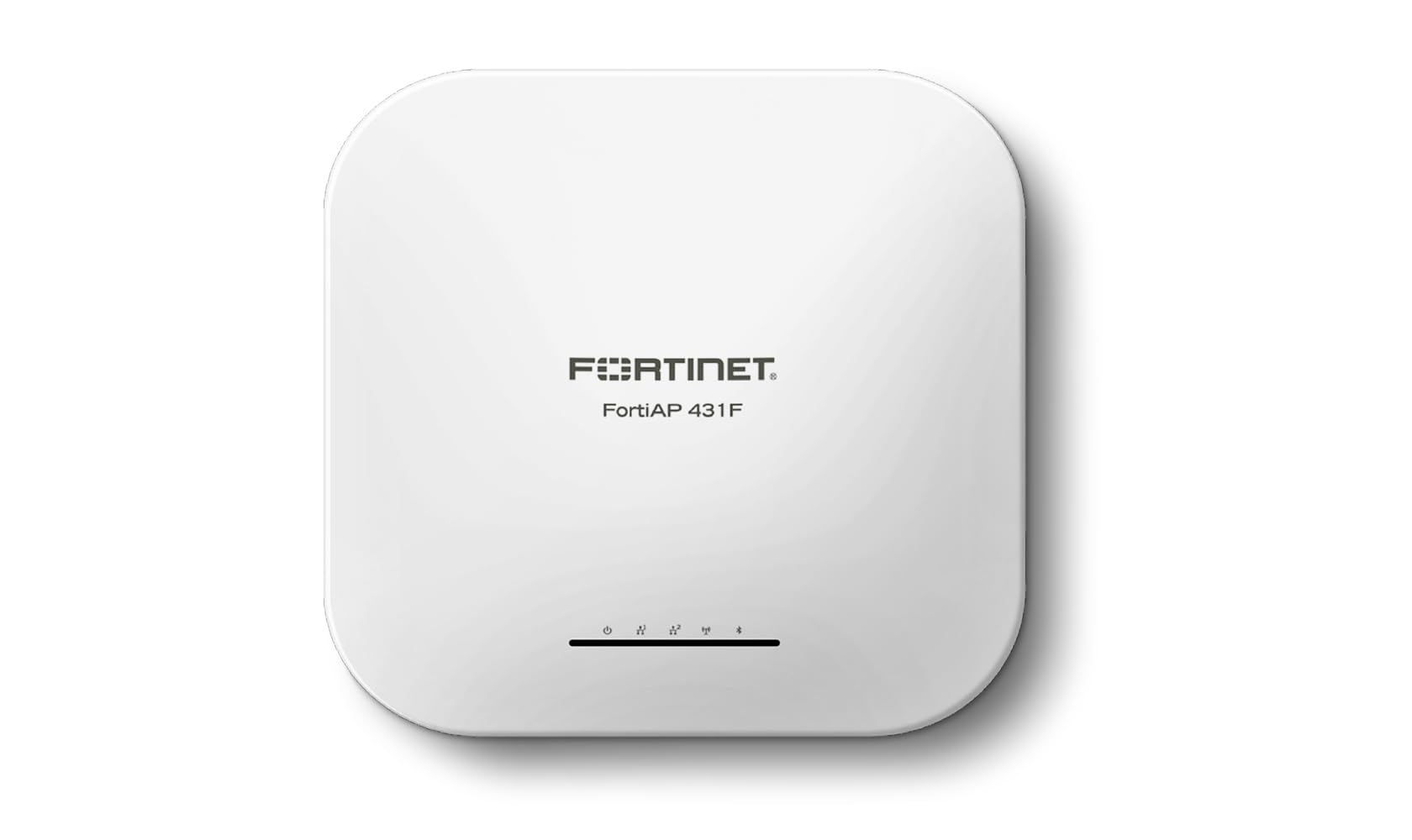

FORTINET FortiAP-431F Indoor Tri-Radio Wireless Access Point

VENDOR: FORTINET Mfg Part#: FTN-FAP431FT
1 3
Photo is for illustration purposes only. Actual product may be different.
$933.80
$933.80
Sale Sold out
MSRP: $1,276.00
Shipping calculated at checkout.
  • Tri-radio design with dual 4x4 MIMO and one 2x2 MU-MIMO radio
  • Operates across 2.4 GHz, 5 GHz, and 6 GHz bands for wide compatibility
  • Up to 2.5 Gbps data transfer rate for high-speed wireless connectivity
  • Includes 100/1000/2500Base-T and 10/100/1000Base-T RJ45 interfaces
  • Supports Bluetooth and Bluetooth Low Energy (BLE)
  • Internal antennas and rackmount form factor for efficient deployment

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Offers tri-radio operation with modern wireless protocols (802.11a/b/g/n/ac/ax) for superior performance across multiple bands
  • Features both high-speed Ethernet ports and Bluetooth/BLE for versatility in enterprise and IoT applications
  • Internal antennas and rackmount design reduce setup complexity and streamline professional installation

Product Overview

The FORTINET FortiAP-431F is a high-performance indoor wireless access point engineered for enterprise-grade environments. Supporting tri-radio configuration with dual 4x4 MIMO and a 2x2 MU-MIMO setup, it operates across the 2.4 GHz, 5 GHz, and 6 GHz bands for maximum flexibility. It features internal antennas and a compact rackmount form factor for clean deployment. Interface options include multi-speed Ethernet ports, USB Type-A, and an RS-232 serial port. Additional support for Bluetooth/BLE enables proximity-based networking features, making it suitable for large-scale deployments in enterprise, healthcare, and education environments.

Specifications

Product Overview
Manufacturer FORTINET
Product Name FortiAP-431F
Product Type Wireless Access Point
Form Factor Rackmount
Deployment Environment Indoor
Power Supply PoE+ (802.3at) or external adapter (sold separately)
Power Consumption Up to 25.5 W
Weight 0.85 kg (1.87 lb)

Wireless Features
Radio Configuration Tri-Radio (2x 5 GHz, 1x 2.4 GHz/6 GHz switchable)
Wi-Fi Standards 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Antenna Type Internal Antennas
Antenna Gain Up to 5 dBi
MIMO Configuration 2x2 MU-MIMO, 4x4 MU-MIMO
Frequency Bands 2.4 GHz, 5 GHz, 6 GHz
Max Number of Spatial Streams 6
OFDMA Support Yes
Band Steering Yes
Client Load Balancing Yes
Bluetooth Support Yes, BLE 5.0

Compliance & Origin
Country of Origin
TAA Compliant
Certifications FCC, CE, ISED, UL, CB
RoHS Compliance Yes

Advanced Security Features
Wireless IDS/IPS Supported
Client Recognition Yes
Application Control Yes
Rogue AP Detection Yes
Dynamic VLAN Assignment Yes
WPA3 Encryption Yes

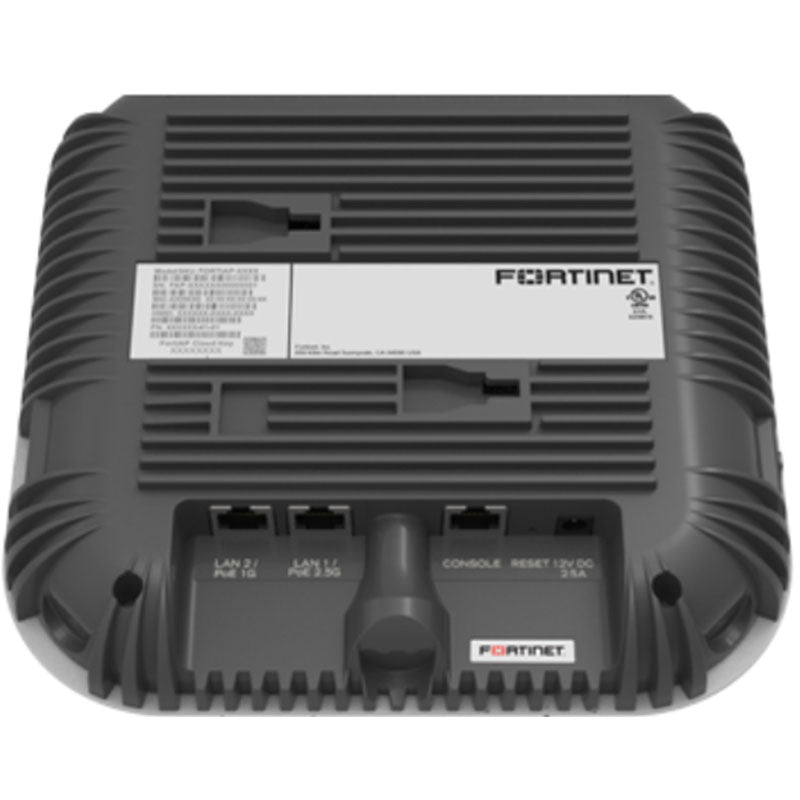

Interfaces
Ethernet Ports 1x 100/1000/2500BASE-T RJ45
Additional Ethernet Ports 1x 100/1000BASE-T RJ45
Console Port 1x RJ45 Serial Console
USB Port 1x USB 2.0 Type-A
Bluetooth Interface Integrated Bluetooth Low Energy (BLE)
Maximum Data Rate 2.5 Gbps

Physical & Environmental
Dimensions (W x D x H) 205 x 205 x 42 mm (8.07 x 8.07 x 1.65 in)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity 10% to 90% non-condensing
Mounting Options Wall, Ceiling

Cloud Management & Licensing
Management Platform FortiCloud, FortiWLC, FortiGate Controller
Zero Touch Deployment Supported via FortiDeploy
Cloud-Based Management Yes
