FORTINET FortiAP 432FR Outdoor Tri-Radio Access Point

VENDOR: FORTINET Mfg Part#: FAP-432FR-EO
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,478.00
$1,478.00
Sale Sold out
MSRP: $2,010.00
Shipping calculated at checkout.
  • - Tri-radio configuration with 802.11ax and Wave 2 802.11ac support

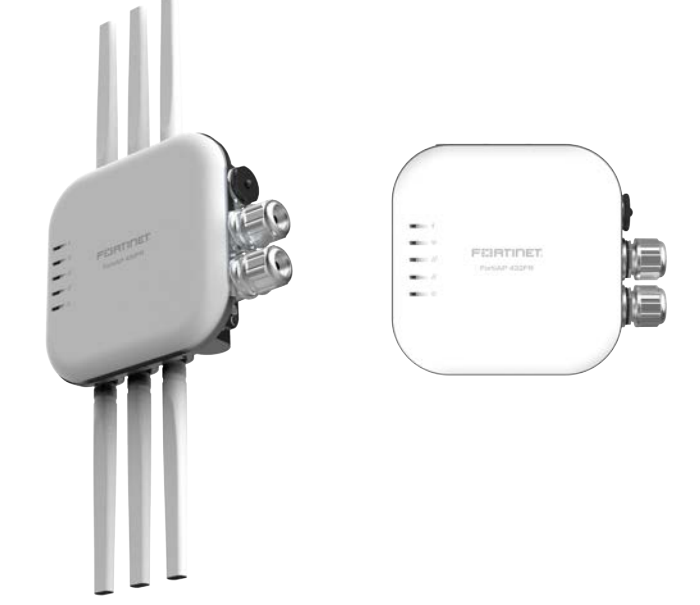

  • - External dual-band N-type omni-directional antennas
  • - Max data transfer rate of 2.5 Gbps with Gigabit Ethernet
  • - Bluetooth Low Energy and ZigBee integration
  • - Up to 37.9W power consumption with PoE or AC power options
  • - UL Class 1, Division 2 rated for outdoor industrial use

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports tri-radio MU-MIMO with Wi-Fi 6 (802.11ax) for optimized wireless performance in dense environments
  • UL Class 1, Division 2 certification and included mounting kits ensure safe, fast deployment in hazardous outdoor locations
  • Dual Ethernet ports and BLE/ZigBee support provide flexibility for enterprise and IoT network integration

Product Overview

The FORTINET FortiAP 432FR is an outdoor-rated tri-radio access point engineered for high-density, industrial, or hazardous deployments. Featuring 802.11ax Wi-Fi 6 capabilities through 4x4 MIMO on dual bands, plus an additional 2x2 Wave 2 radio, it delivers superior wireless throughput and coverage. The hardware includes dual Ethernet ports, support for BLE/ZigBee modules, and rugged external N-type omni-directional antennas. With a maximum power draw of 37.9W, the unit supports flexible powering via 802.3at PoE or AC adapter. Engineered for UL Class 1, Division 2 environments, it's ideal for industries requiring robust, reliable wireless infrastructure. Bundled with mounting kits and backed by a limited lifetime warranty, it ensures reliable operation and ROI.

Specifications

Product Overview
Product Type Access Point
Model FortiAP 432FR
Form Factor Outdoor
Radio Count Tri
Environment Outdoor
Power Requirements 802.3at PoE or AC adapter
Max Power Consumption 37.9 Watt
Mounting Options Wall/Pole Mount Kit Included
Weight 2.82 lbs (1.28 kg)

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Frequency Bands 2.4 GHz and 5 GHz
MIMO Type 4x4 MU-MIMO (Dual Band) + 2x2 MIMO (Third Radio)
Antenna Type Omni-directional External N-type
Antenna Configuration 4 External Antennas
Max Data Rate (5GHz) 2402 Mbps
Max Data Rate (2.4GHz) 1147 Mbps
Max Clients Supported 512 per radio

Compliance & Origin
RoHS Y
Country of Origin TAIWAN
Certifications FCC, CE, IC, UL, WEEE

Advanced Security Features
Integrated Firewall Yes, when managed via FortiGate
WIDS/WIPS Yes
Rogue AP Detection Yes
Client Device Classification Yes
Wireless Intrusion Prevention Yes
Application Visibility Yes, via FortiGate integration

Interfaces
Networking Type Ethernet
Data Transfer Rate 2.5 Gbps
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Networking / Ports Qty 3

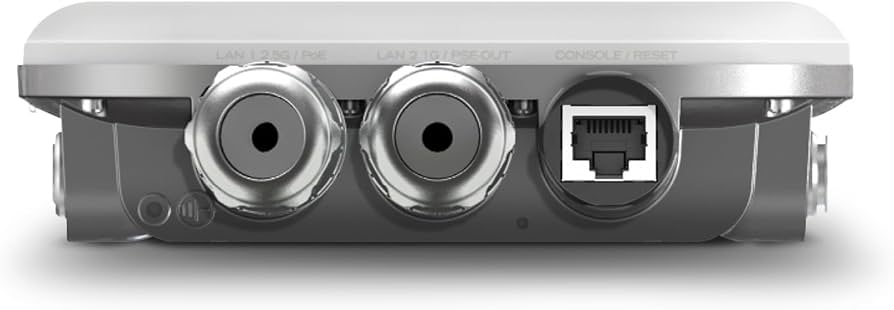

Ethernet Ports 1x 2.5 GE RJ45, 1x 1 GE RJ45 (PoE), 1x Console RJ45
PoE Support Yes (802.3at)
BLE/ZigBee Module Port Yes
USB Port 1x USB Type-C Console

Physical & Environmental
Width 8.23 Inch
Depth 8.23 Inch
Height 2.38 Inch
Operating Temperature -40°C to 65°C (-40°F to 149°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% (non-condensing)
Enclosure Rating IP67
Hazard Certification UL Class I Div 2, Groups A-D T4

Cloud Management & Licensing
Management Interface FortiCloud, FortiGate, FortiWLC, FortiManager
Controller-based or Standalone Controller-based (FortiGate Integrated Wireless Controller)
Licensing Requirements No license required when managed via FortiGate; FortiCloud license optional
