Fortinet FortiAP-432G Outdoor Tri-Radio Wireless Access Point

VENDOR: FORTINET Mfg Part#: FAP-432G-B
1 3

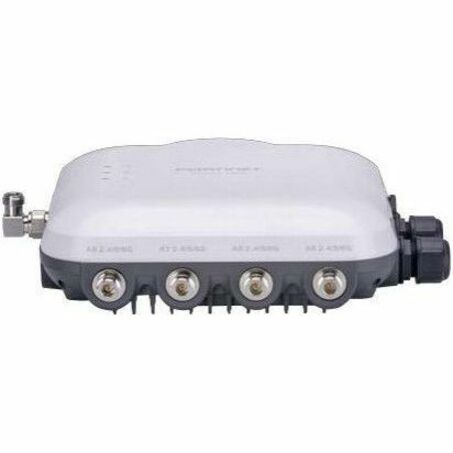

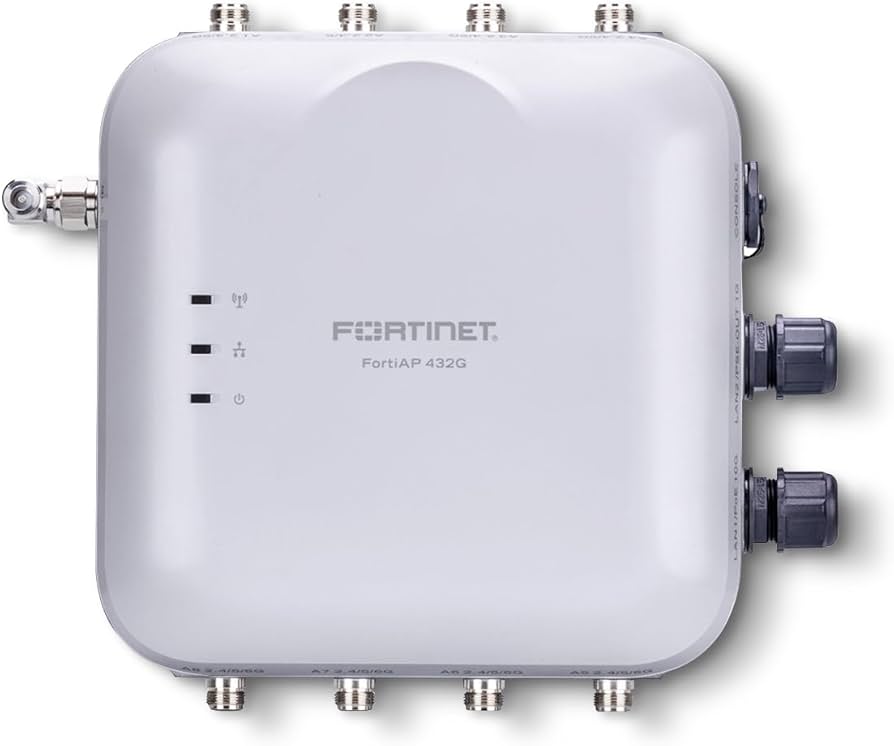

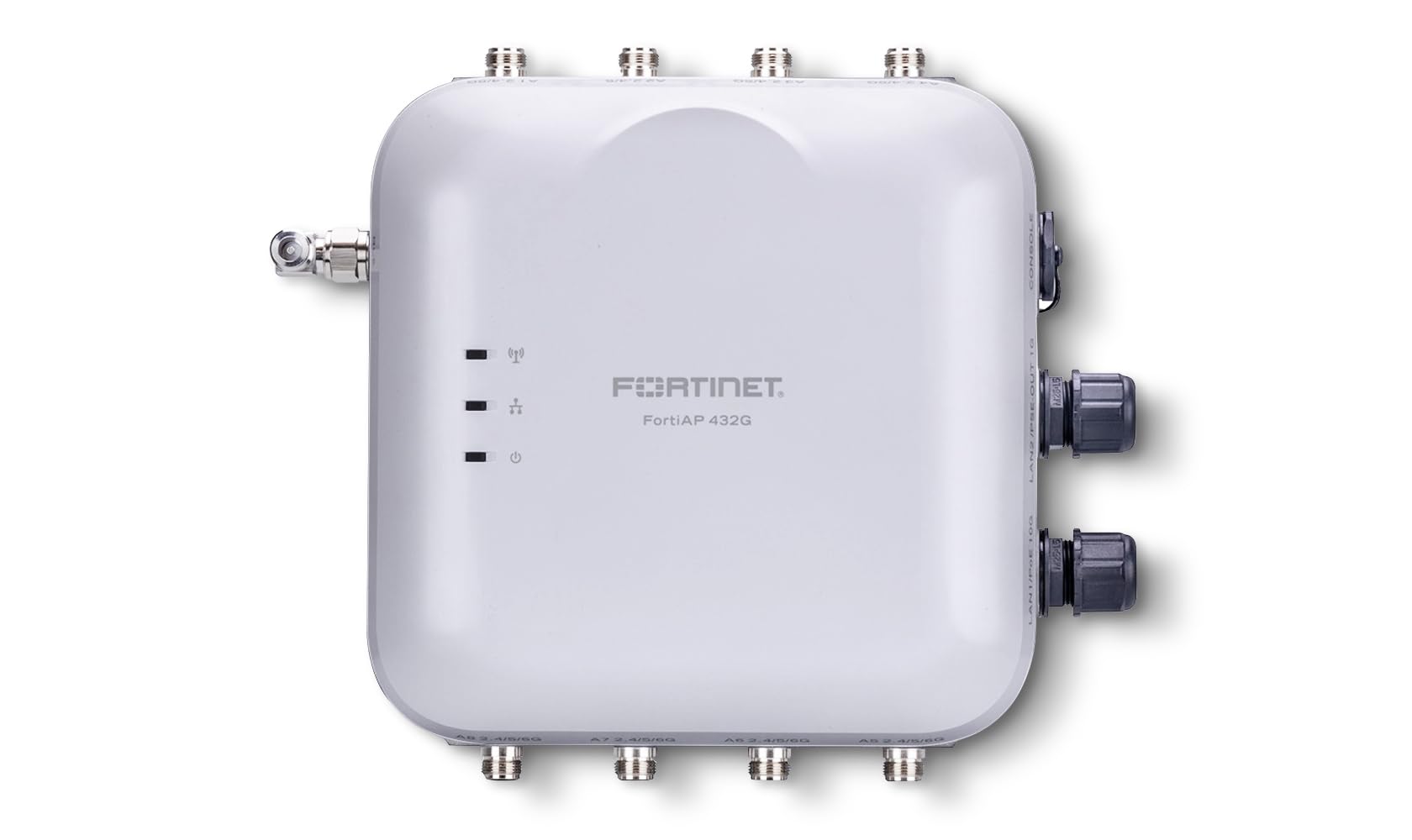

Photo is for illustration purposes only. Actual product may be different.
$1,902.73
$1,902.73
Sale Sold out
MSRP: $2,600.00
Shipping calculated at checkout.
  • Tri-radio configuration: 2.4GHz (4x4), 5GHz (4x4), and 6GHz (2x2)
  • Supports Wi-Fi 6 (802.11ax) and earlier Wi-Fi standards
  • Outdoor-rated design for enterprise and industrial environments
  • Includes both 4x4 MU-MIMO and 2x2 MIMO antenna arrays
  • 6GHz band support (region-dependent)
  • Manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Future-proof with full Wi-Fi 6/6E compatibility for high-speed, efficient connectivity
  • Outdoor tri-radio design enables extensive, reliable coverage in large or dense deployments
  • Backed by Fortinet’s secure networking solutions, ensuring enterprise-grade protection and scalability

Product Overview

The Fortinet FortiAP-432G is a high-performance tri-radio outdoor wireless access point supporting Wi-Fi 6/6E across 2.4GHz, 5GHz, and 6GHz bands (regulatory-dependent). Designed for enterprise and industrial use, it offers robust connectivity with 4x4 and 2x2 MIMO configurations, manufactured in Taiwan. Ideal for high-density or mission-critical deployments, the FortiAP-432G helps organizations deploy scalable, fast, and secure wireless networks.

Specifications

Product Overview
Product Type Outdoor Wireless Access Point
Wireless Standard Wi-Fi 6/6E (802.11a/b/g/n/ac/ax/be-ready)
Deployment Enterprise / Industrial
Radios Tri-Radio (2.4 GHz, 5 GHz, 6 GHz - regulatory dependent)
MIMO Configuration 4x4 on 5 GHz/6 GHz and 2x2 on 2.4 GHz
Form Factor Outdoor, Wall or Pole Mountable
Enclosure Ruggedized, IP67 Rated
Power Options PoE+ (802.3at), Optional DC Power Supply
Max Power Consumption 25.5 W
Mounting Options Wall mount, pole mount (accessories included)

Wireless Features
Wi-Fi Technology IEEE 802.11a/b/g/n/ac/ax/6E
Frequency Bands 2.4 GHz, 5 GHz, 6 GHz
Antenna Configuration Internal Antennas, 4x4 MIMO and 2x2 MIMO combinations
Maximum Clients Supported 512+ clients (theoretical)
MU-MIMO Yes, Multi-User MIMO supported
OFDMA Yes, Uplink & Downlink OFDMA
Target Wake Time (TWT) Supported
Max Wi-Fi Data Rate Up to 4.8 Gbps on 6 GHz
Band Steering Supported
BSS Coloring Supported

Compliance & Origin
Country of Origin Taiwan
Compliance Standards FCC, CE, IC, RoHS, REACH
Certifications Wi-Fi Certified 6

Advanced Security Features
WIDS/WIPS Wireless Intrusion Detection and Prevention Supported
Rogue AP Detection Supported
Integrated Firewall Controlled via FortiGate
Secure Onboarding 802.1X, WPA3 supported
Guest Access Captive Portal, Rate Limiting, VLAN policies

Interfaces
LAN Ports 2 x 2.5G Ethernet (RJ-45)
Console Port 1 x RJ-45 Serial Console Port
USB Ports 1 x USB Type-C Port (for UART and power)
Ethernet Speed 2.5 Gbps
PoE Support 1 x 802.3at PoE Input
Throughput Up to 6.0 Gbps aggregated (theoretical)

Physical & Environmental
Dimensions 250 x 220 x 60 mm (9.84 x 8.66 x 2.36 in)
Weight 1.8 kg (3.96 lbs)
Operating Temperature -40°C to +65°C (-40°F to +149°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP67

Cloud Management & Licensing
Management Interface FortiCloud, FortiGate, FortiLAN Cloud
Cloud License Requirement May require FortiCloud subscription for full features
Zero Touch Provisioning Supported
Included Management Software Basic FortiCloud Monitoring
