| Product Type | Access Point |
| Model | FortiAP 432G |
| Manufacturer | Fortinet |
| Part Number | FAP-432G-EO |
| Form Factor | Outdoor, pole or wall mountable |
| Radio Count | Tri |
| Weight | 1.87 kg (4.12 lbs) |
| Power Requirements | 802.3bt PoE++ or 12V DC Adapter (not included) |
| Power Consumption (max) | 32.6 W |

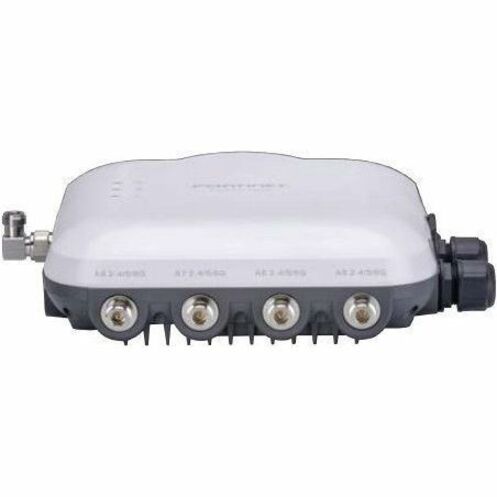

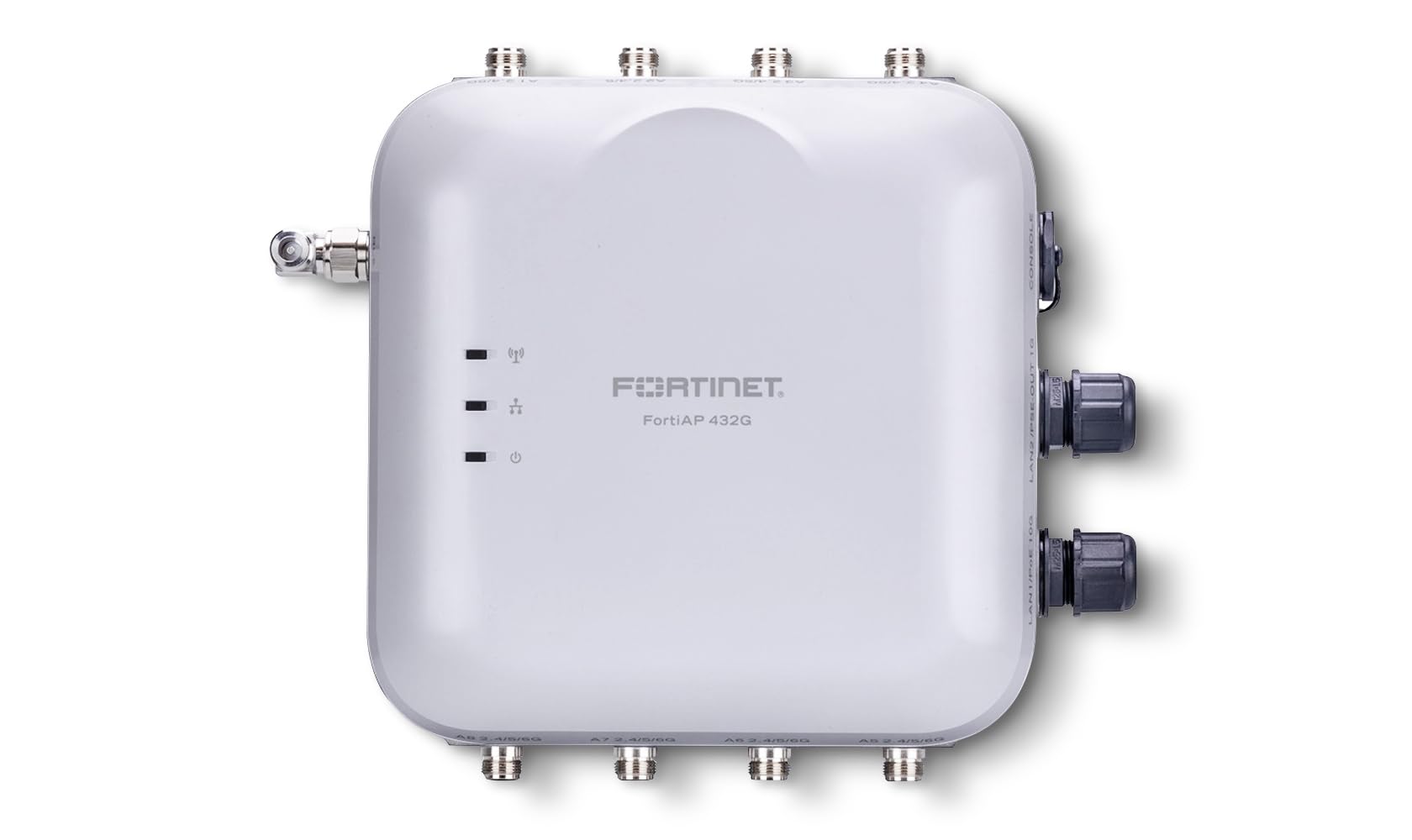

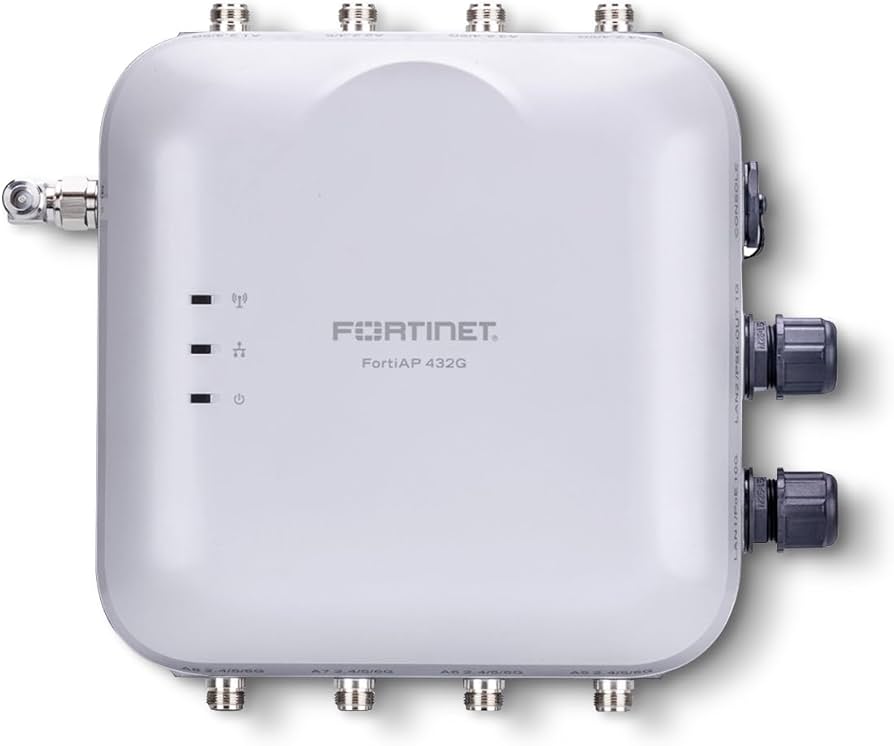

FORTINET FortiAP-432G Outdoor Tri-Radio Wireless Access Point
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,902.73
Regular price
Sale price
$1,902.73
Unit price
per
MSRP: $2,600.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Tri-radio design with dual 4x4 and one 2x2 configurations
- Supports 802.11b/g/n/ax and 802.11a/n/ac/ax wireless standards
- Peak data transfer rate up to 10 Gbps
- Outdoor-ready with omni-directional N-Type antenna connectors
- Ethernet-based wireless connectivity with Gigabit support
- Compatible with 6GHz band in supported regions
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Tri-radio configuration provides enhanced coverage and bandwidth efficiency for high-density outdoor deployments.
- 10 Gbps data transfer capability ensures high-speed performance for demanding wireless applications.
- Outdoor-rated construction and omni-directional antennas make it ideal for rugged environments requiring wide-area Wi-Fi.
Product Overview
The Fortinet FortiAP-432G is an enterprise-grade outdoor wireless access point engineered for high-density and rugged environments. This tri-radio device supports a combination of 802.11b/g/n/ax and 802.11a/n/ac/ax protocols via dual 4x4 radios, plus a 2x2 6GHz band (availability region-dependent). With a data transfer rate of up to 10 Gbps, it ensures robust performance for challenging deployments.
Equipped with N-Type omni-directional antennas and built to withstand outdoor conditions, it supports Gigabit Ethernet transport and integrates seamlessly into Fortinet’s security framework. Ideal for expansive, open-area coverage in educational, industrial, or municipal networks, the FortiAP-432G provides a secure, scalable wireless solution that can adapt to regional regulatory constraints.
Specifications
Product Overview
Wireless Features
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax |
| Radio 1 (2.4GHz) | 4x4:4 MU-MIMO, 802.11b/g/n/ax |
| Radio 2 (5GHz) | 4x4:4 MU-MIMO, 802.11a/n/ac/ax |
| Radio 3 (6GHz) | 2x2:2 MU-MIMO, 802.11ax (Optional, region dependent) |
| Spatial Streams | 10 total (4+4+2) |
| Max Data Rate per Radio | Up to 4.8 Gbps (5 GHz), 2.4 Gbps (2.4 GHz), 2.4 Gbps (6 GHz) |
| Maximum Combined Throughput | 10 Gbps |
| Antenna Type | Omni-directional, external |
| MIMO Configuration | 4x4:4 (2.4 GHz and 5 GHz), 2x2:2 (6 GHz) |
| Band Steering | Supported |
| OFDMA | Supported |
| BSS Coloring | Supported (802.11ax feature) |
Compliance & Origin
| Compliance Standards | FCC, CE, IC, RoHS |
| Certifications | UL2043 Plenum Rated, EN 60601-1-2 (Medical Environments) |
| Country of Origin | Taiwan |
Advanced Security Features
| Wireless Intrusion Detection System (WIDS) | Supported |
| Wireless Intrusion Prevention System (WIPS) | Supported |
| Role-Based Access Control (RBAC) | Supported |
| MAC Filtering | Supported |
| Integrated Firewall | Yes, when managed by FortiGate |
| Application Control | Supported via FortiGate integration |
| Client Isolation | Supported |
Interfaces
| Networking Type | Ethernet |
| Data Transfer Rate | 10 Gbps |
| Data Link Protocol | Gigabit Ethernet |
| Transport Protocol | Gigabit Ethernet |
| Ethernet Ports | 2 x 2.5 GbE RJ45, 1 x 1 GbE RJ45, 1 x 1/2.5/5/10 GbE SFP+ |
| PoE Support | Yes, 802.3bt PoE++ on port 1 (Data + Power) |
| Console Port | 1 x RJ45 (Console) |
| Antenna Connectors | 6 x External N-Type |
Physical & Environmental
| Environment | Outdoor |
| Dimensions | 230 x 200 x 65 mm (9.05 x 7.87 x 2.55 in) |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP67 (waterproof and dust-tight) |
Cloud Management & Licensing
| Cloud Management | FortiCloud (via FortiGate/FortiManager or standalone) |
| Management Interfaces | FortiOS, FortiGate Controller, FortiManager, FortiCloud |
| Licensing Model | Subscription-based (FortiGuard Services) |
| Zero Touch Deployment | Supported |
