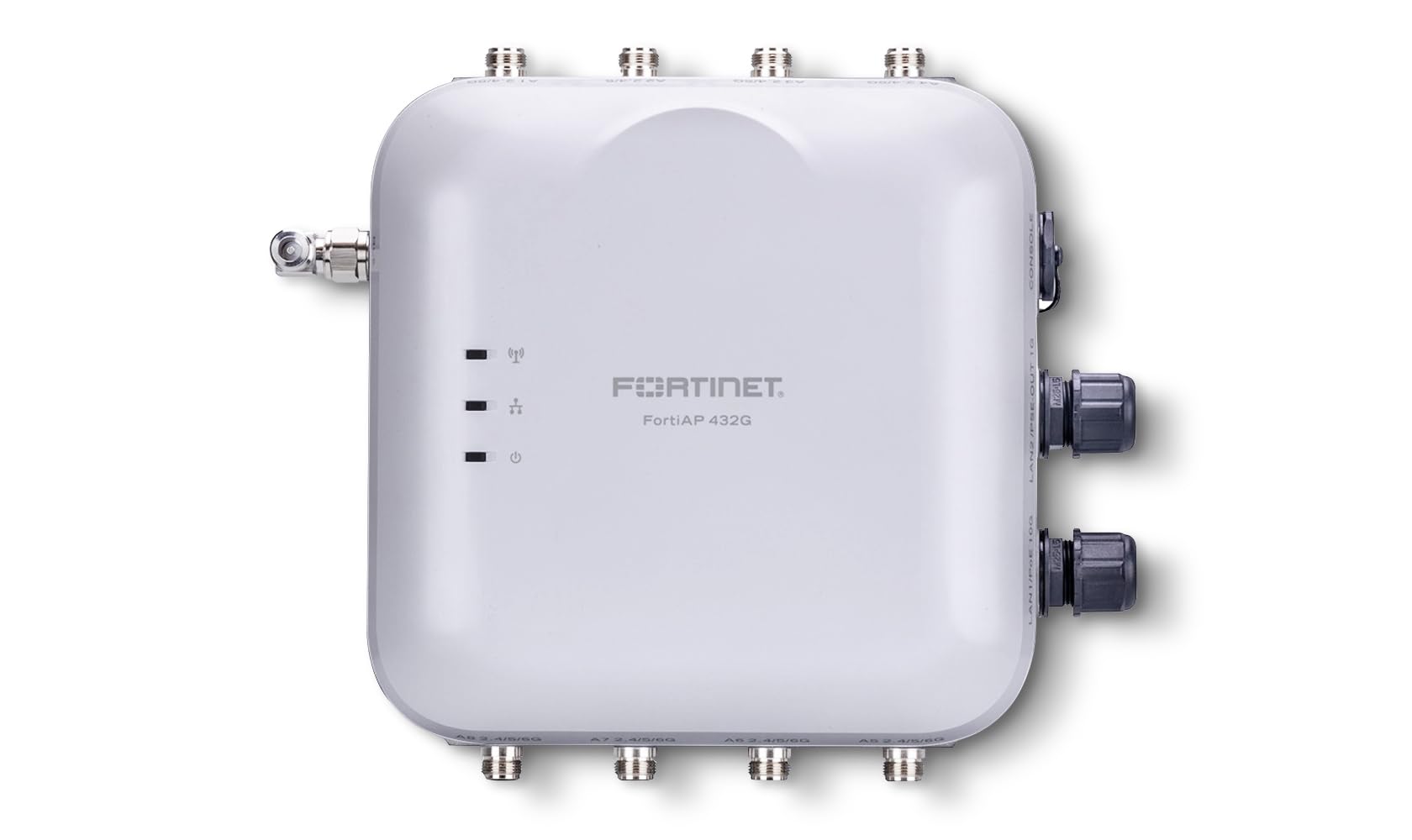

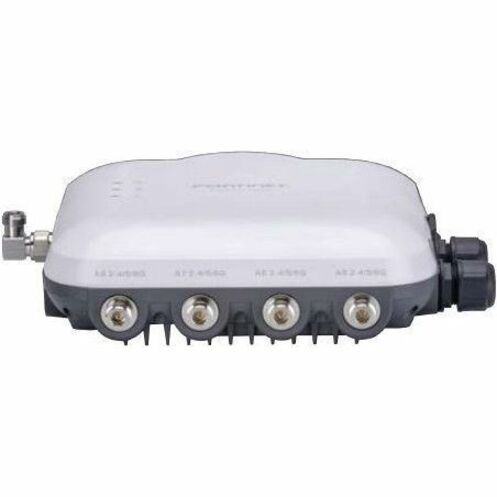

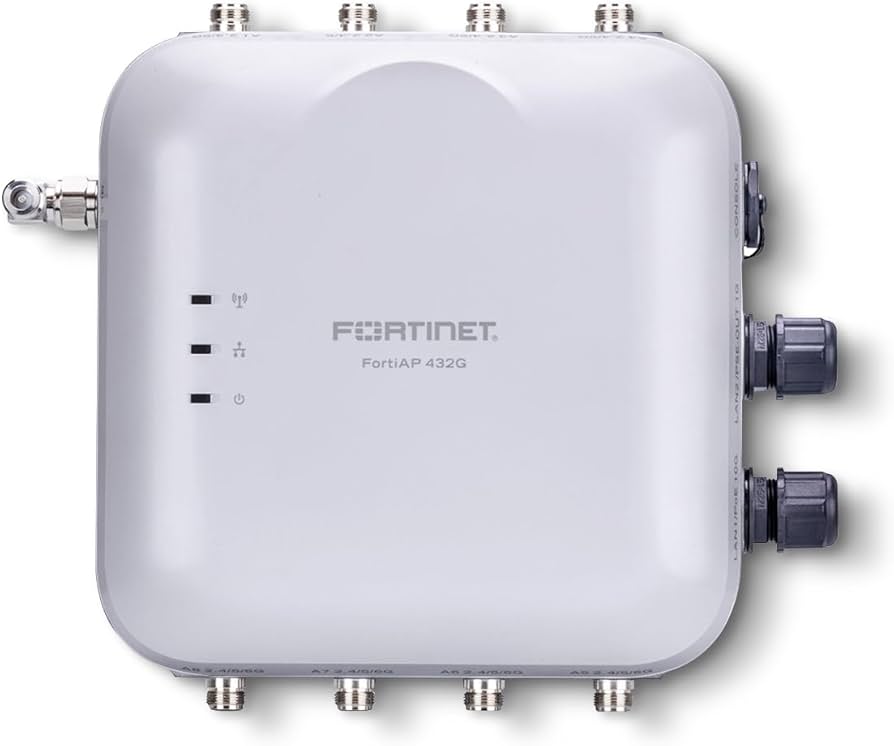

Fortinet FortiAP-432G Outdoor Wireless Access Point

VENDOR: FORTINET Mfg Part#: FAP-432G-D
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,902.73
$1,902.73
Sale Sold out
MSRP: $2,600.00
Shipping calculated at checkout.
  • - Tri-radio configuration with support for Wi-Fi 6 (802.11ax) on 2.4GHz, 5GHz, and 6GHz bands
  • - Multi-gigabit Ethernet port with 10/100/1000/2500/10000 Base-T RJ45 connectivity
  • - IoT support through integrated Bluetooth/BLE and Zigbee radios
  • - Includes RS-232 RJ45 serial port for advanced management
  • - External N-Type omni-directional antennas for wide outdoor coverage
  • - PoE-powered with included power supply and mounting kit

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • - Offers advanced wireless performance with Wi-Fi 6 tri-radio architecture, supporting high-density user environments
  • - Enables seamless IoT integration via built-in BLE and Zigbee radios, reducing the need for additional IoT gateways
  • - Built for outdoor durability and ease of installation with included omni antennas, power supply, and flexible mounting hardware

Product Overview

The Fortinet FortiAP-432G Outdoor Wireless Access Point delivers tri-radio Wi-Fi 6 support with enhanced IoT connectivity via BLE and Zigbee. It includes multiple high-speed Ethernet ports including 10GbE and supports outdoor deployments with external dual-band N-type omni antennas. The device is PoE-powered and comes with a mounting kit for flexible installation. Rugged, high-capacity, and ideal for dense wireless environments, it's tailored for demanding enterprise or industrial applications.

Specifications

Product Overview
Product Type Outdoor Wireless Access Point
Model FAP-432G-D
Wireless Standard Wi-Fi 6 (802.11ax)
Wi-Fi Radios Tri-radio (2x 5GHz + 1x 2.4GHz or dual 5GHz)
Mounting Options Pole and wall mount kit included
Antenna Type External N-type dual-band omni-directional antennas
Antenna Connector 4 x N-type connectors
PoE Support Yes, 802.3bt (PoE++)
Power Consumption 34.3 W maximum
Power Supply Type PoE only
Enclosure Type Outdoor IP67-rated ruggedized
Ideal Deployment Enterprise, high-density and industrial outdoor environments

Wireless Features
2.4 GHz Max Data Rate 574 Mbps
5 GHz Max Data Rate 2 x 4.8 Gbps
MIMO Configuration 4x4:4 MU-MIMO per radio
Max Concurrent Clients 1024
Band Steering Yes
Client Load Balancing Yes
Wireless Security WPA3, WPA2, WPA
Spectrum Analysis Yes
Rogue AP Detection Yes

Compliance & Origin
Country of Origin Taiwan
Safety Certifications UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62368-1
EMC Certifications FCC Part 15, ICES-003, CE, RCM, VCCI
Environmental Compliance RoHS, WEEE

Advanced Security Features
Integrated WIDS/WIPS Yes
Application Visibility Yes (with FortiGate integration)
Role-Based Access Control Yes
TLS/SSL Encryption Yes, for management traffic

Interfaces
Ethernet Ports 2 x 100/1000/2500/5000/10000 Ethernet (RJ-45)
Uplink Port 1 x 10 GbE RJ-45
Console Port 1 x RJ-45 console port
USB Port 1 x USB 2.0 port
Bluetooth Bluetooth Low Energy (BLE) 5.1
Zigbee Zigbee 3.0 support
Reset Button Yes

Physical & Environmental
Dimensions (W x D x H) 260 x 166 x 62 mm (10.2 x 6.5 x 2.4 in)
Weight 2.44 kg (5.38 lbs)
Operating Temperature -40°C to 65°C (-40°F to 149°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity (non-condensing) 5% to 95%
Ingress Protection Rating IP67
Wind Survivability Up to 165 mph (266 km/h)
Lightning Protection ±6 kV

Cloud Management & Licensing
Management Platform FortiGate (with FortiLink), FortiCloud
Zero-Touch Deployment Yes (via FortiCloud)
Licensing Model Subscription-based for advanced cloud features
Cloud-Based Monitoring Yes
Configuration Backup and Restore Supported via FortiCloud
